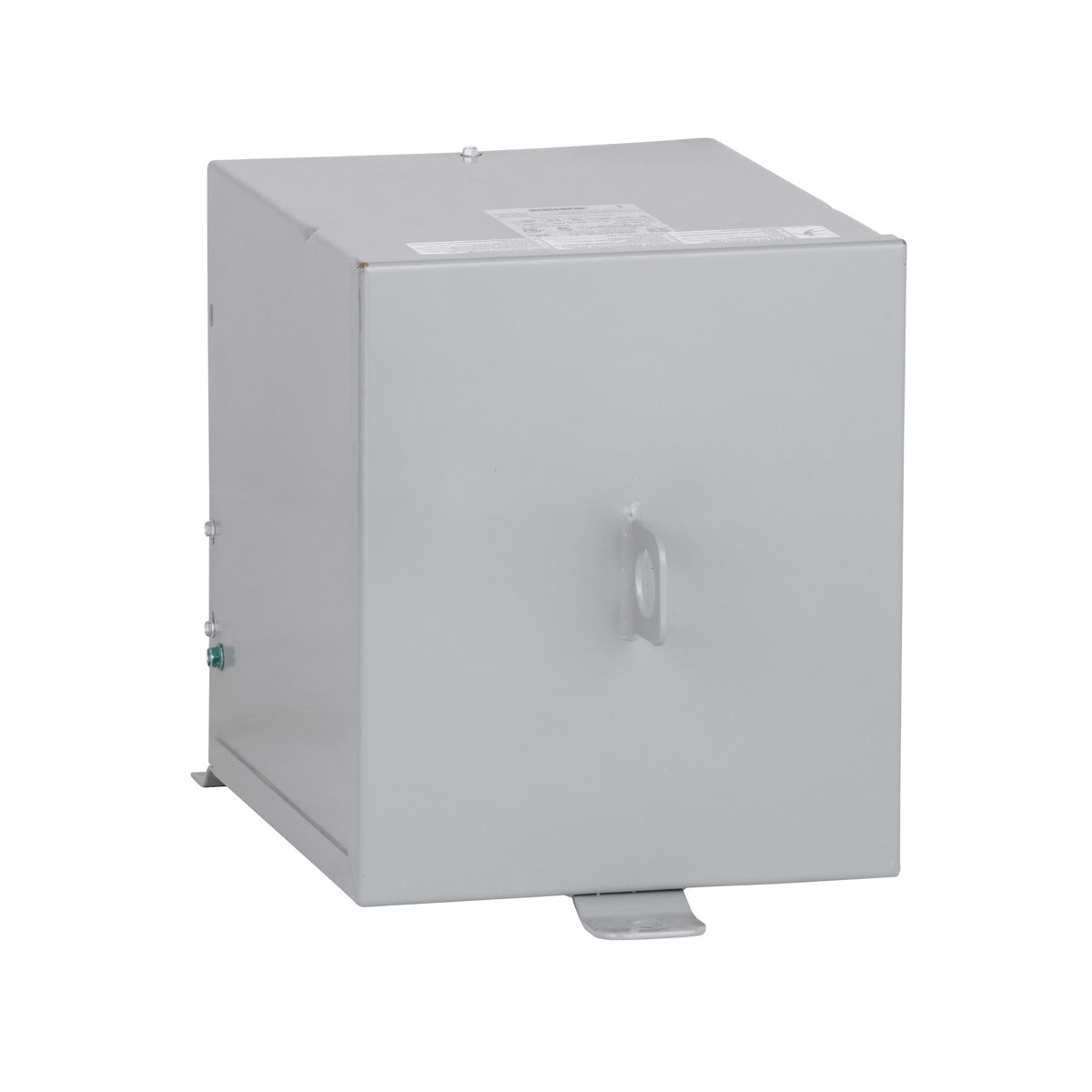

Square D 5S4F Transformer, dry type, encapsulated, 5kVA, 1 phase, 600V primary, 120/240V secondary

Product Description

The Square D 5S4F is a dry type encapsulated transformer designed for general purpose applications. This transformer has a rated power of five KVA and operates on a primary voltage of six hundred volts with a secondary voltage of one hundred twenty to two hundred forty volts. The fully enclosed design makes it suitable for various environments, whether indoors or outdoors. The durable epoxy resin encapsulation protects the core and coil assembly from contaminants.

• Rated power: 5 KVA
• NEMA 3R rated enclosure
• Wall mounted for convenience

Product Highlights

This transformer complies with UL and CSA standards, ensuring safety and reliability in operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 5S4F
• Phase: 1
• Primary Voltage: 600 V
• Secondary Voltage: 120/240 V
• Height: 14.75 inches
• Width: 9.75 inches
• Depth: 11.75 inches
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: United States
• Enclosure Material: Painted sheet steel
• Mounting Type: Wall
• UPC: 785901359630
