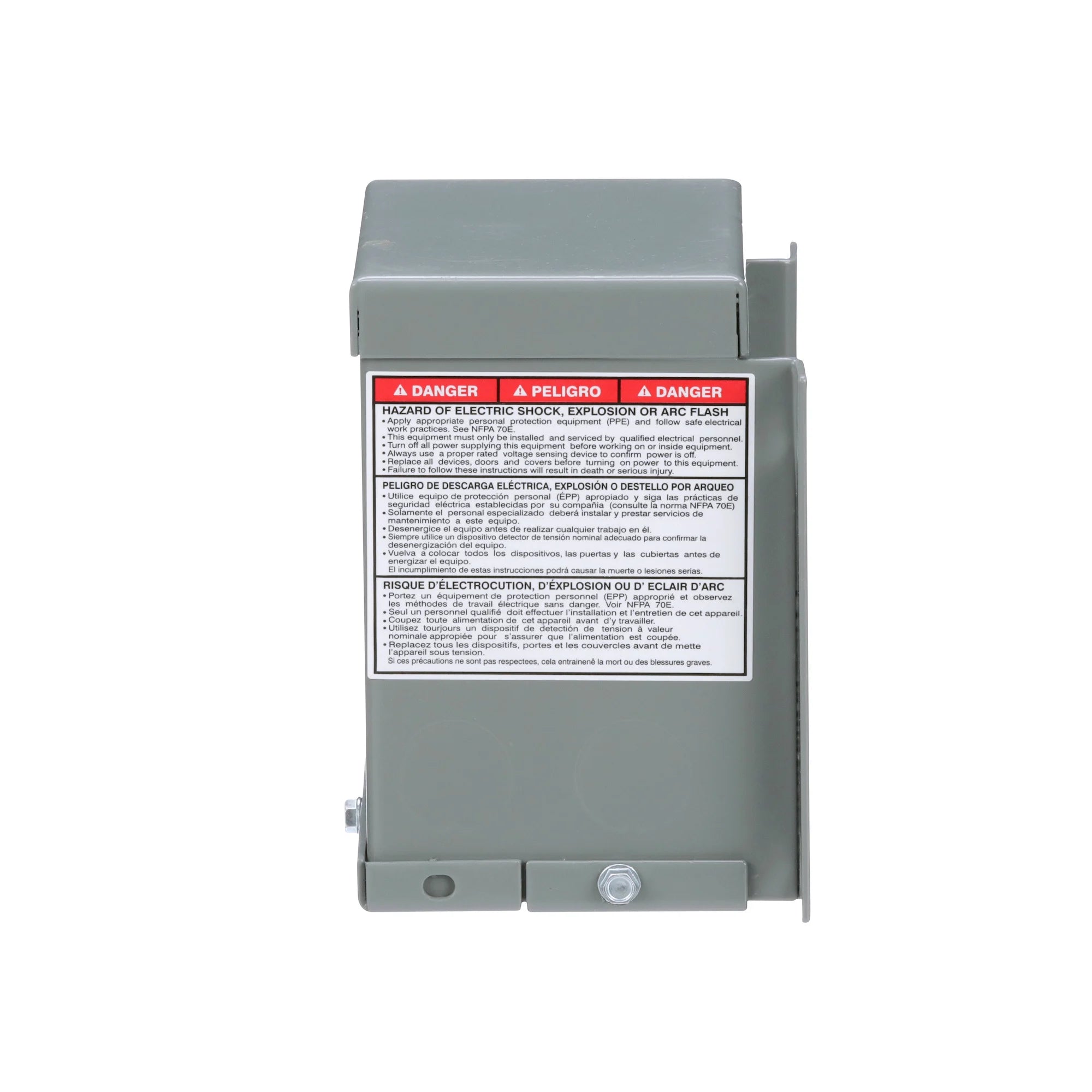

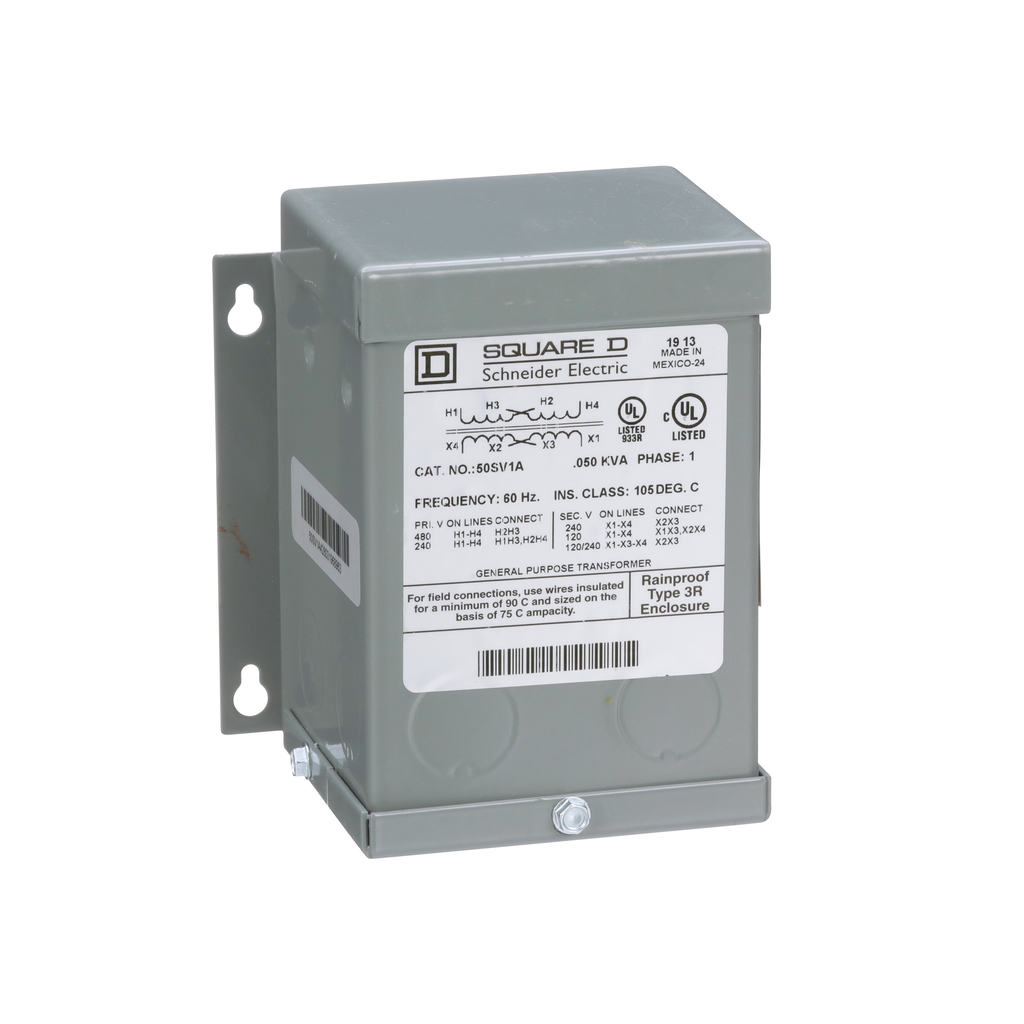

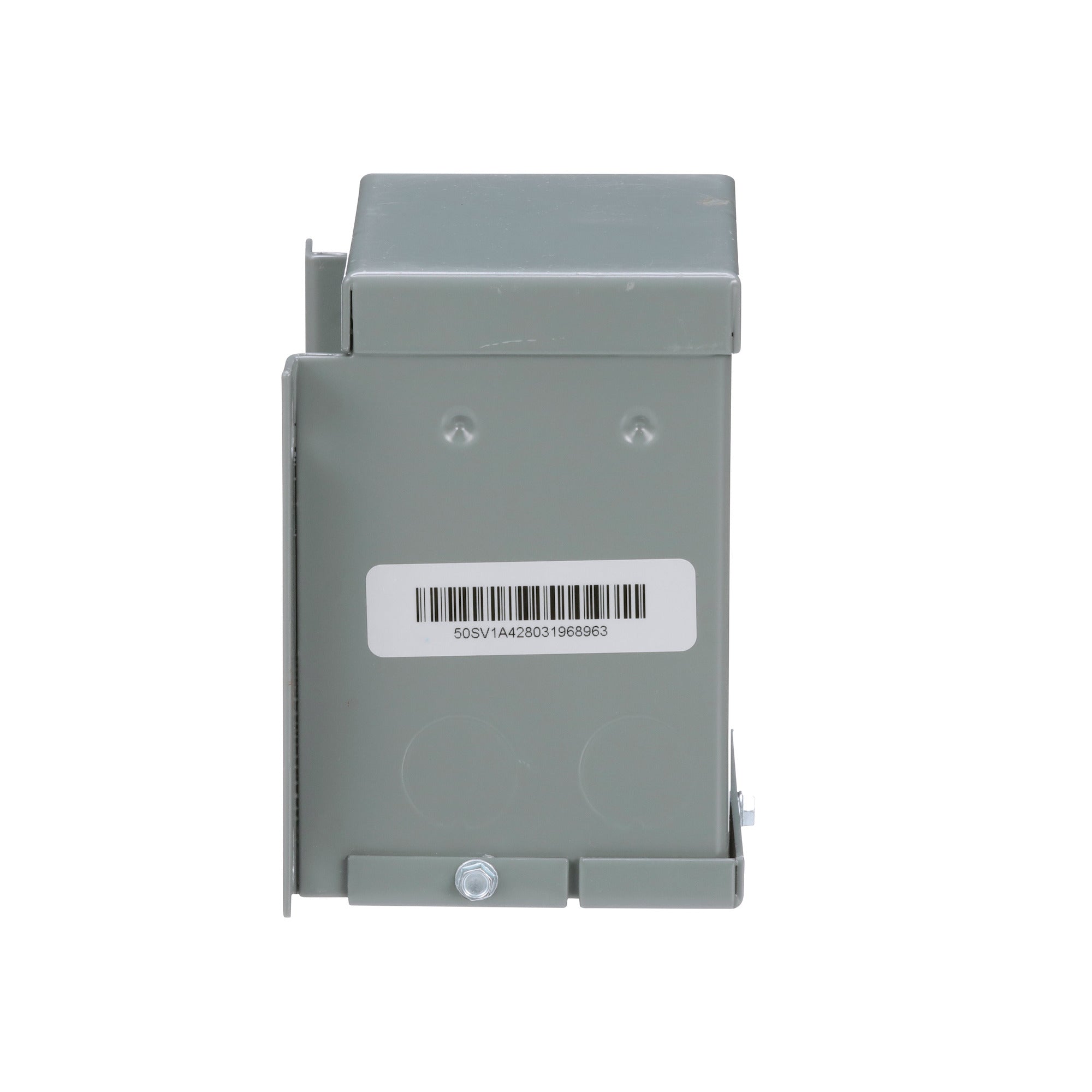

Square D 50SV1A 0.05 kVa 240 x 480 VAC Primary 120/240 VAC Secondary Dry Type General Purpose Transformer

Product Description

The Square D 50SV1A is a dry type general purpose transformer designed for various voltage systems. It has a rated power of 0.05 kVA, with a primary voltage of two hundred forty by four hundred eighty volts and a secondary voltage of one hundred twenty or two hundred forty volts. Its enclosure features a NEMA 3R rating and is constructed from painted sheet steel, suitable for both indoor and outdoor use.

• Wall-mounted installation
• Epoxy encapsulated core and coil assembly
• Complies with UL and CSA standards

Product Highlights

This transformer is built to provide reliability in power, heating, and lighting applications. With a temperature rating of fifty-five degrees Celsius, it is efficient and safe under various conditions.

Product Information

Standard Information

• Product ID: 268341
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 50SV1A
• Rated Power: 0.05 kVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Enclosure Material: Painted sheet steel
• Height: 5 inches
• Width: 4.47 inches
• Depth: 3.44 inches
• Warranty: 18 months
• Country of Origin: Mexico
• Certifications: UL Listed, CSA
