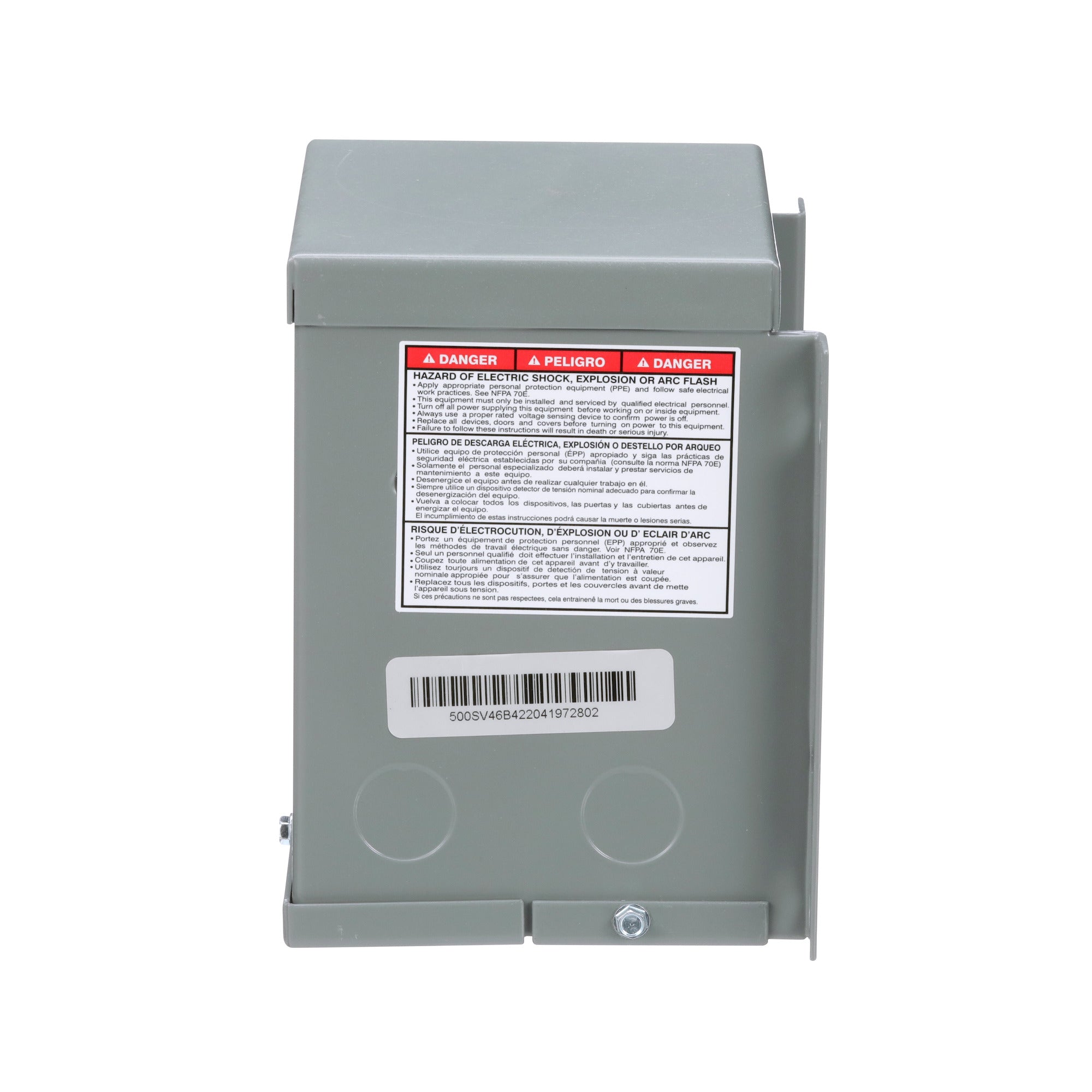

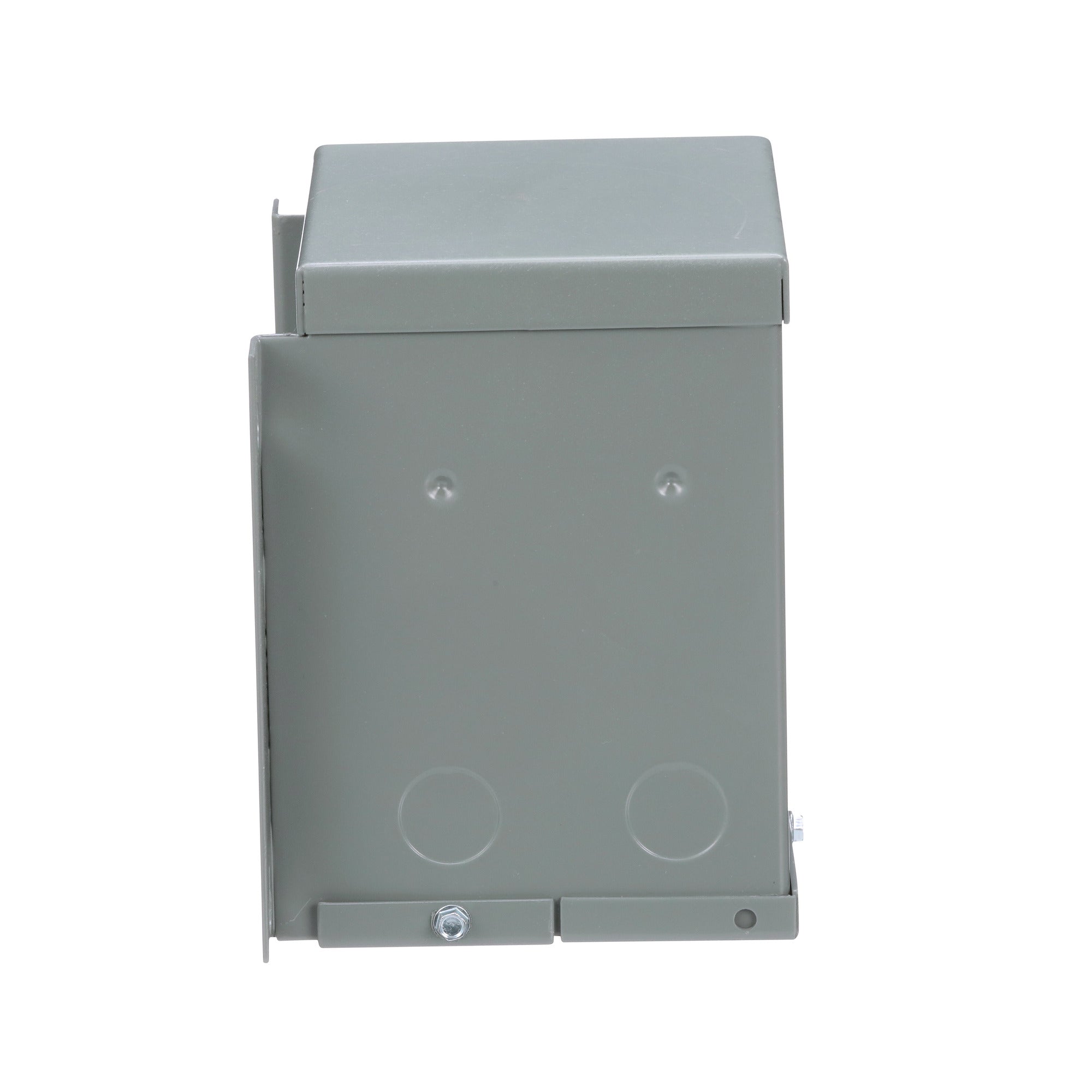

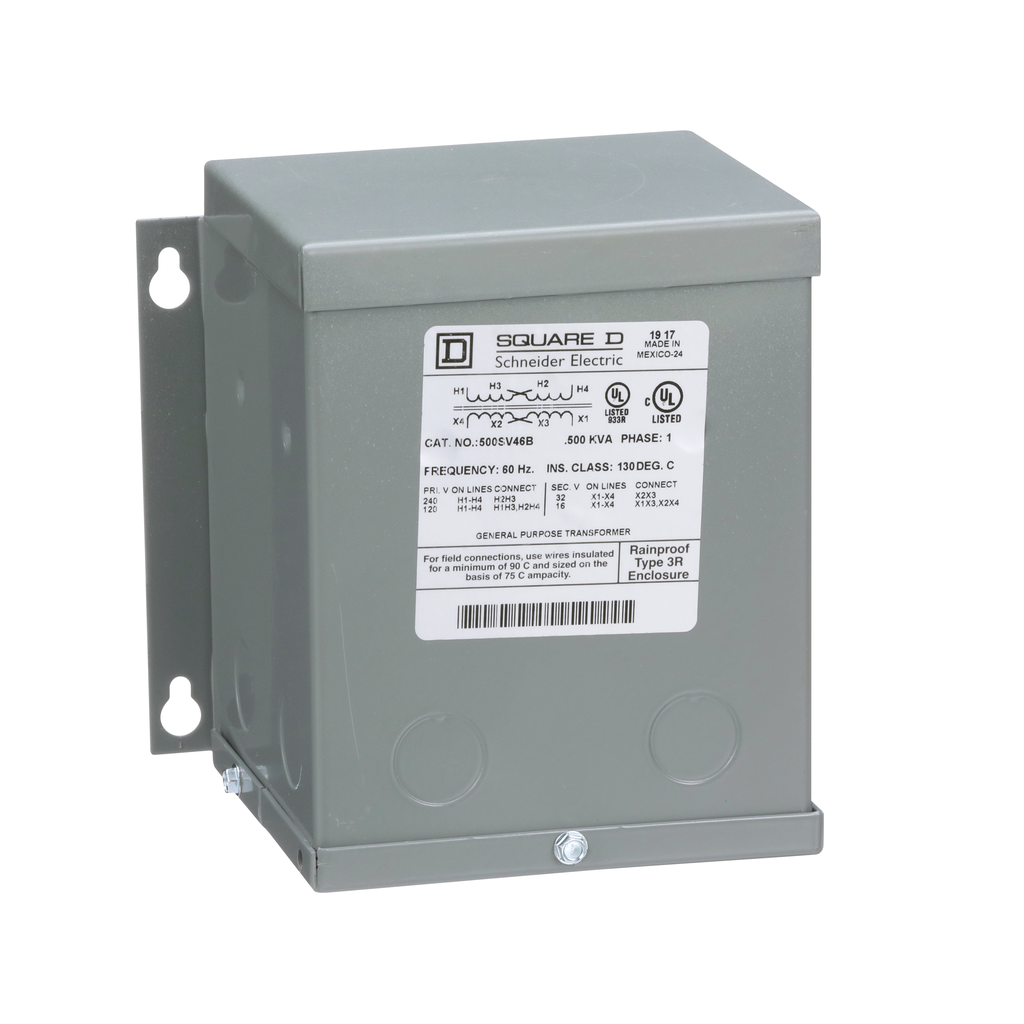

Square D 500SV46B 0.5 KVA 120 x 240 VAC Primary 16/32 VAC Secondary Dry Type Buck and Boost Transformer

Product Description

The Square D 500SV46B is a buck and boost transformer designed for power distribution. It has a primary voltage of 120 x 240 VAC and a secondary output of 16/32 VAC. This transformer has a power rating of 0.5 kVA, making it suitable for various applications. The unit is rated for indoor or outdoor use and carries a NEMA 3R enclosure rating.

• NEMA 3R rated for indoor or outdoor use
• UL and cUL listed for safety
• Ideal for autotransformer applications

Product Highlights

The Square D 500SV46B transformer is ideal for adjusting voltage levels in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 500SV46B
• Enclosure Type: NEMA 3R
• Primary Voltage: 120 x 240 V
• Secondary Voltage: 16/32 V
• Power Rating: 0.5 kVA
• Temperature Rise: 80 degrees C
• Country of Origin: Mexico
• Warranty: 18 months
