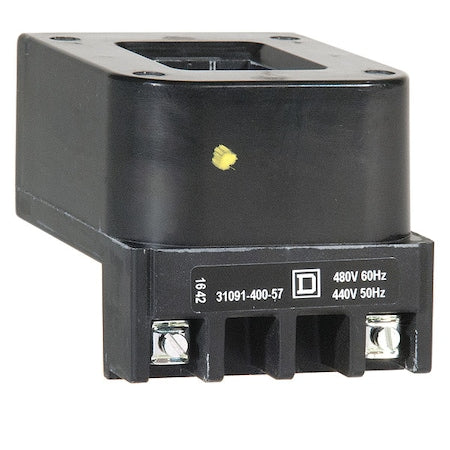

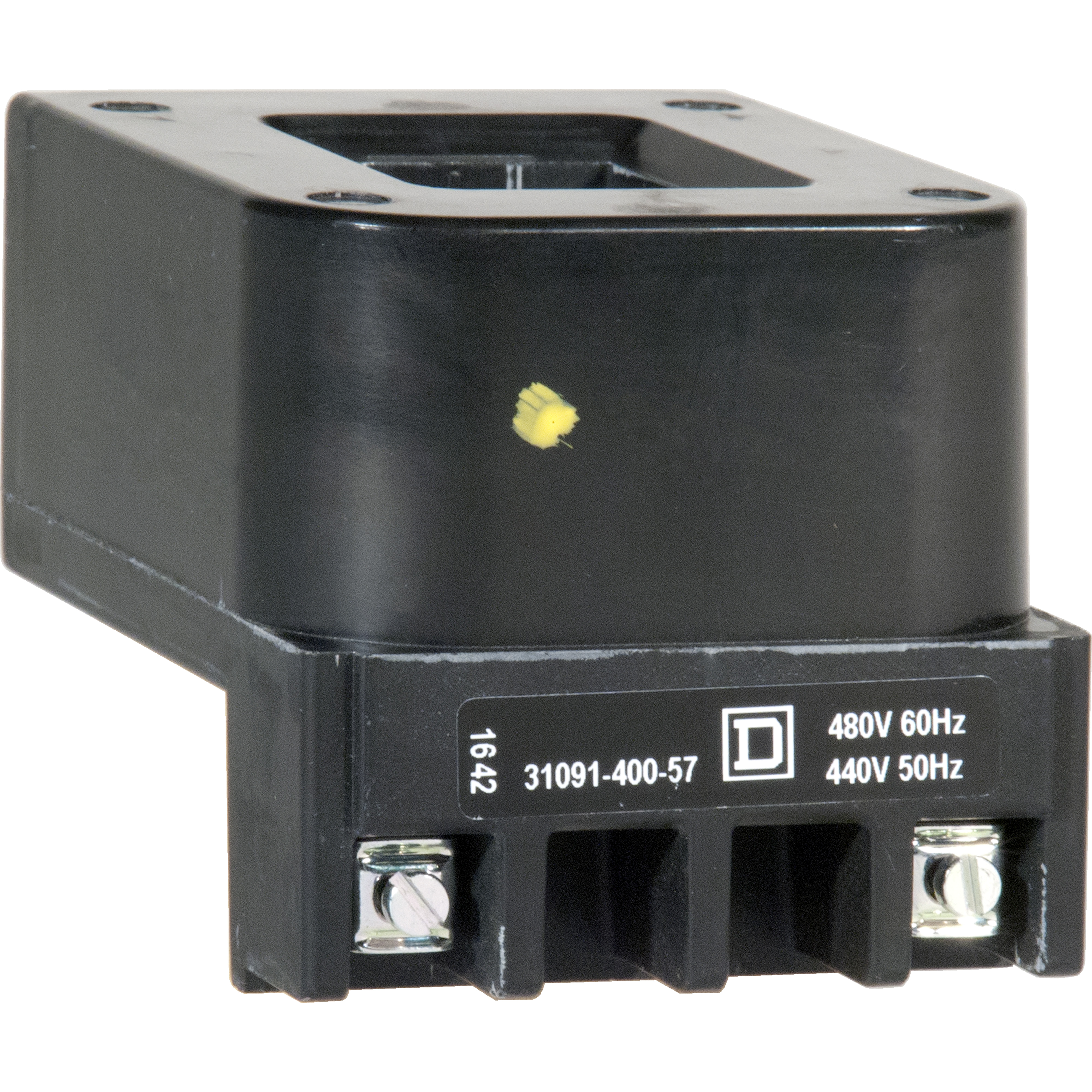

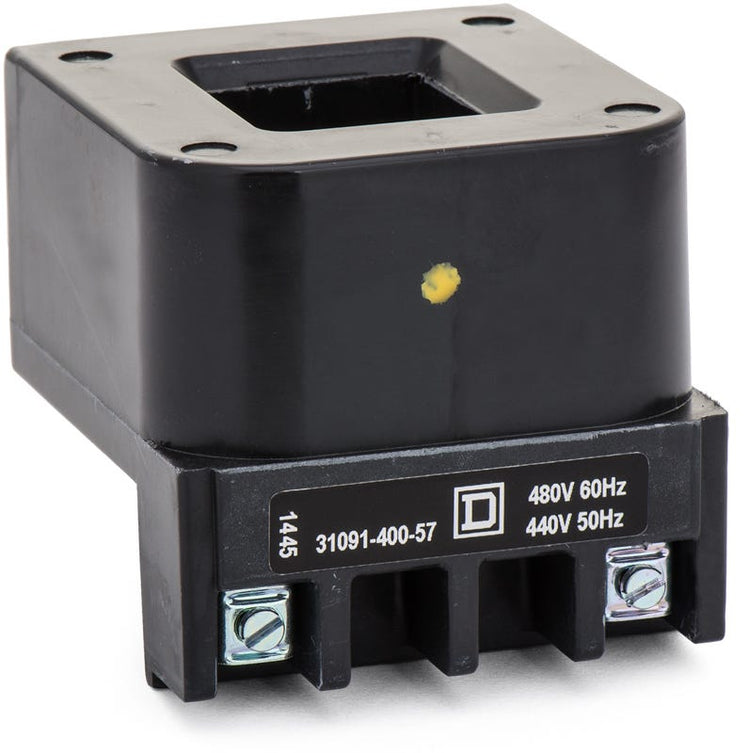

Square D 3109140057 440/480 VAC 100/200 Amp 50/60 Hz 1260 VA Magnetic Contactor/Starter AC Coil

Product Description

The Square D 3109140057 coil can be easily replaced in a Type S contactor or starter, enabling use in different control circuit voltage applications. This saves the cost of replacing the entire contactor or starter if the coil fails. It is used in 8502SF contactors, 8536SF starters, and 8903SV lighting contactors and rated for 440/480 VAC 50/60 Hz with an average sealed consumption of 85 VA.

• Easily replaced in a Type S contactor or starter
• Can be used in different control circuit voltage applications
• Saves the cost of a whole new contactor or starter if the coil were to fail

Product Highlights

The 3109140057 coil is fully encapsulated for protection and features screw clamp connections. It has a height of 74.7 mm, a width of 65 mm and a depth of 62.7 mm.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 3109140057
• Country of Origin: Mexico

Technical Specifications

• Type: Coil
• Brand: Square D
• Voltage: 480V
• Sub Brand: SCHNEIDER ELECTRIC
• Applications: CONTACTORS AND STARTERS
• Coil Voltage: 480 V
• TC Connection: SCREW CLAMP
• Operating Cycles: 50/60HZ
• Power Consumption: 85 VA
• Operating Temperature: 40C AMBIENT
• Catalog Number: 3109140057
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901323600
• GTIN: 00785901323600
• Voltage Rating: 440 VAC at 50 Hz, 440/480 VAC at 60 Hz
• Used On: Class 8502/8536/8538/8539/8702/8736/8903/8910 Series Magnetic Contactor/Starter
• Suffix Designator: 57
• Power Rating: 1260 VA at 50 Hz/1185 VA at 60 Hz (Inrush), 89 VA at 50 Hz/85 VA at 60 Hz (Sealed)
• Current Rating: 100/200 Ampere
• IGCC: 4755
• Family group: MOTOR CONTROL
• WES Product code: 2440948166
• Rated Operational Voltage: 480 V AC 60 Hz;440 V AC 50 Hz
• Inrush Power In Va - Metric: 1260 V.A
• Average Consumption - Metric: 85 V.A
• Accessory / Separate Part Dest: Class 8502 type SF contactor;class 8903 type SV lighting contactor;class 8910 ty
• Series: 310
• Frequency Rating: 50/60 Hz
• Suitable For Use With: Class 8502 Type SF, Class 8903 Type SV, Class 8910 Type SYD230 Contactor
• Alternate Catalog Number: 3109140057
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: Y
• UNSPSC: 39121529
• UPC 11: 78590132360
• UPC 12: 785901323600
• Mpn: 31091-400-57
• Contactor Type: Magnetic
• For Use With: Contactors and Starters
