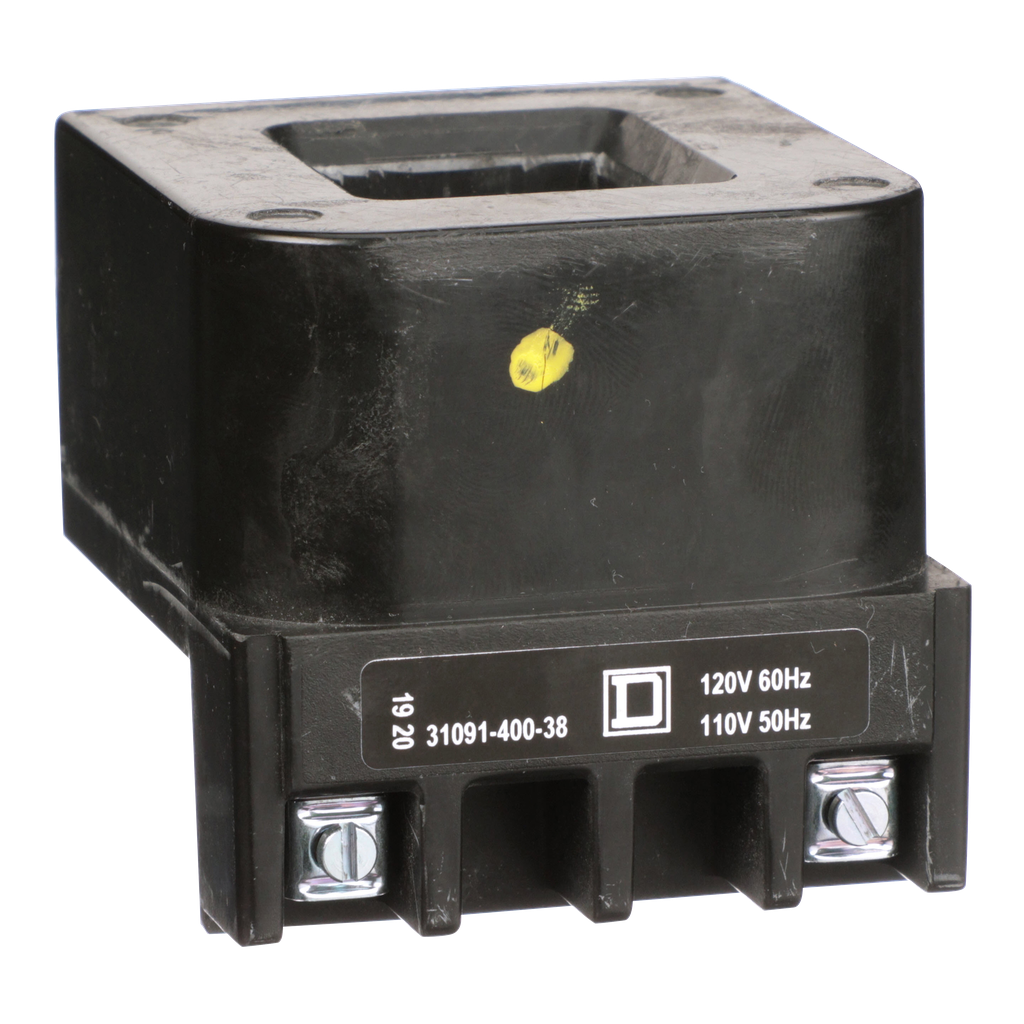

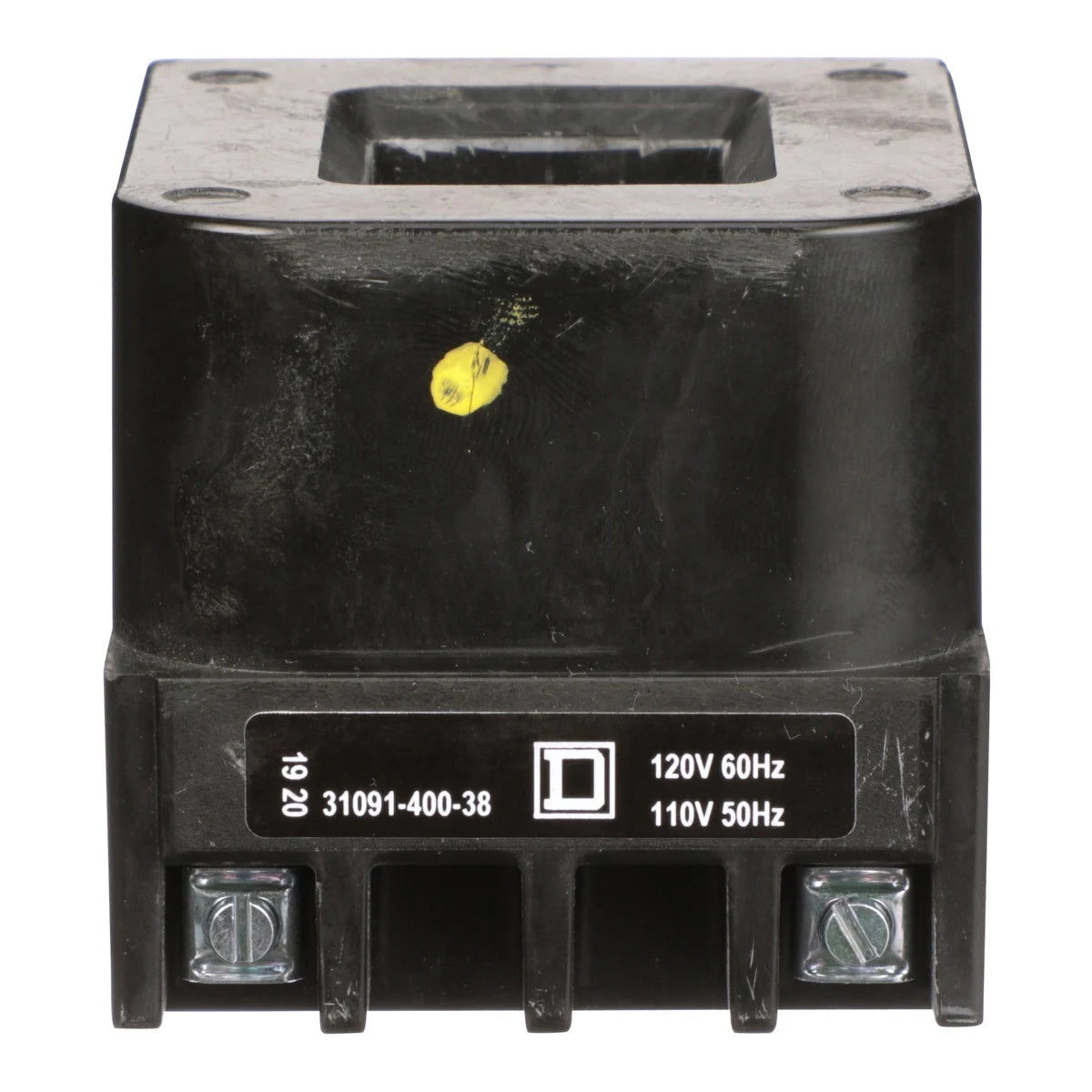

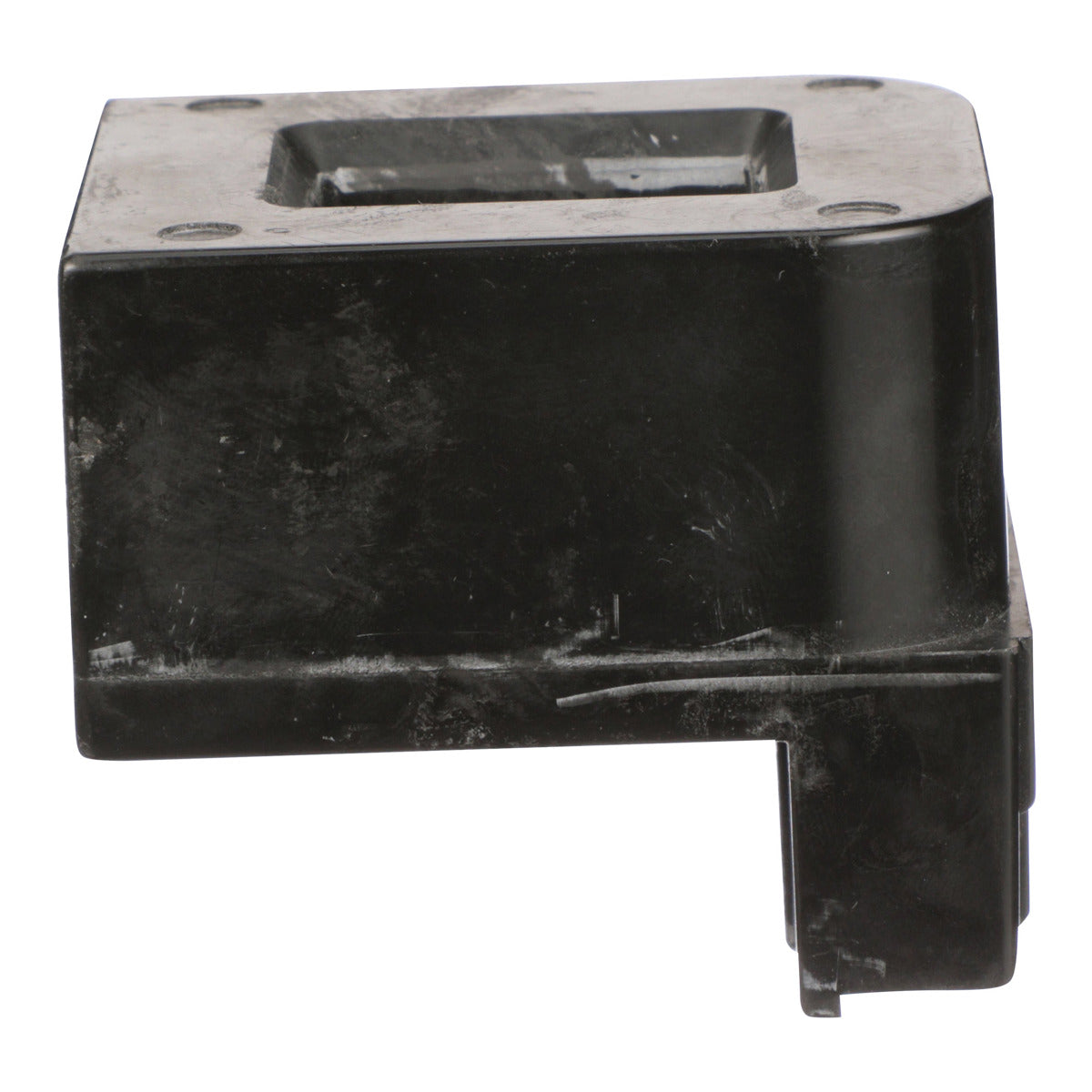

Square D 3109140038 Magnetic Contactor/Starter AC Coil 110/120 VAC NEMA Size 4

Product Description

The Square D Magnetic Contactor/Starter AC Coil, MPN 3109140038, is designed for use in various control circuits. This coil easily replaces units in Type S contactors and starters, allowing flexibility for different voltage applications. Its design helps to avoid the cost of replacing an entire contactor or starter if the coil fails. This coil is suitable for use with 8502SF contactors, 8536SF starters, and 8903SV lighting contactors. It operates at 110/120 VAC and is rated for 50/60 Hz. The inrush power is 1185 VA, with an average sealed consumption of 85 VA. The coil is fully encapsulated to provide protection and features screw clamp connections, ensuring stable installation.

• Used to switch AC inductive motors
• Replaceable coil promotes longevity and efficiency
• Compatible with various NEMA Size equipment

Product Highlights

Ideal for HVAC, electrical, and industrial applications where reliable motor control is required.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 110/120 VAC
• Operating Frequencies: 50/60 Hz
• Inrush Power: 1185 VA
• Sealed Consumption: 85 VA
• Height: 74.7 mm
• Width: 65 mm
• Depth: 62.7 mm
• NEMA Size: 4
