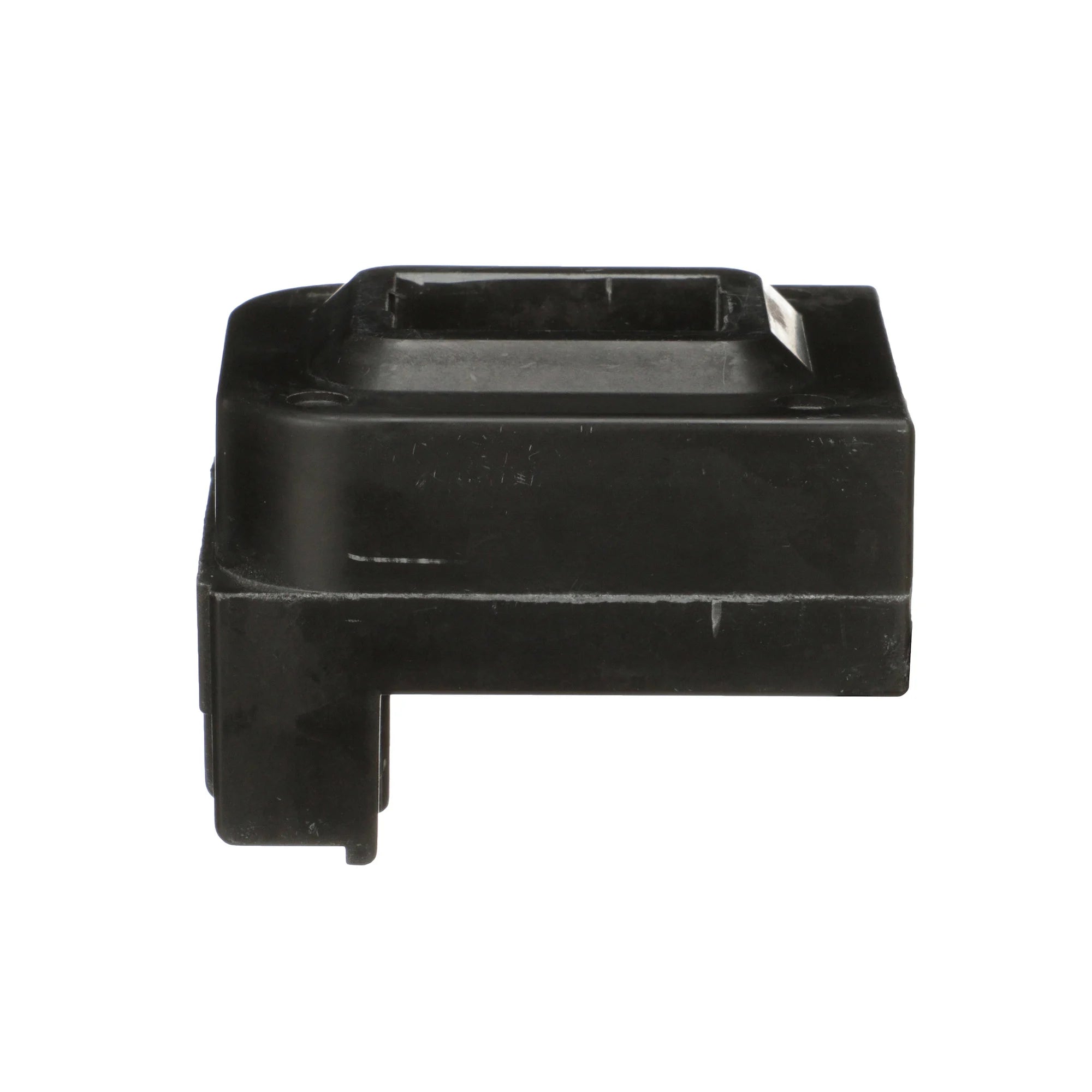

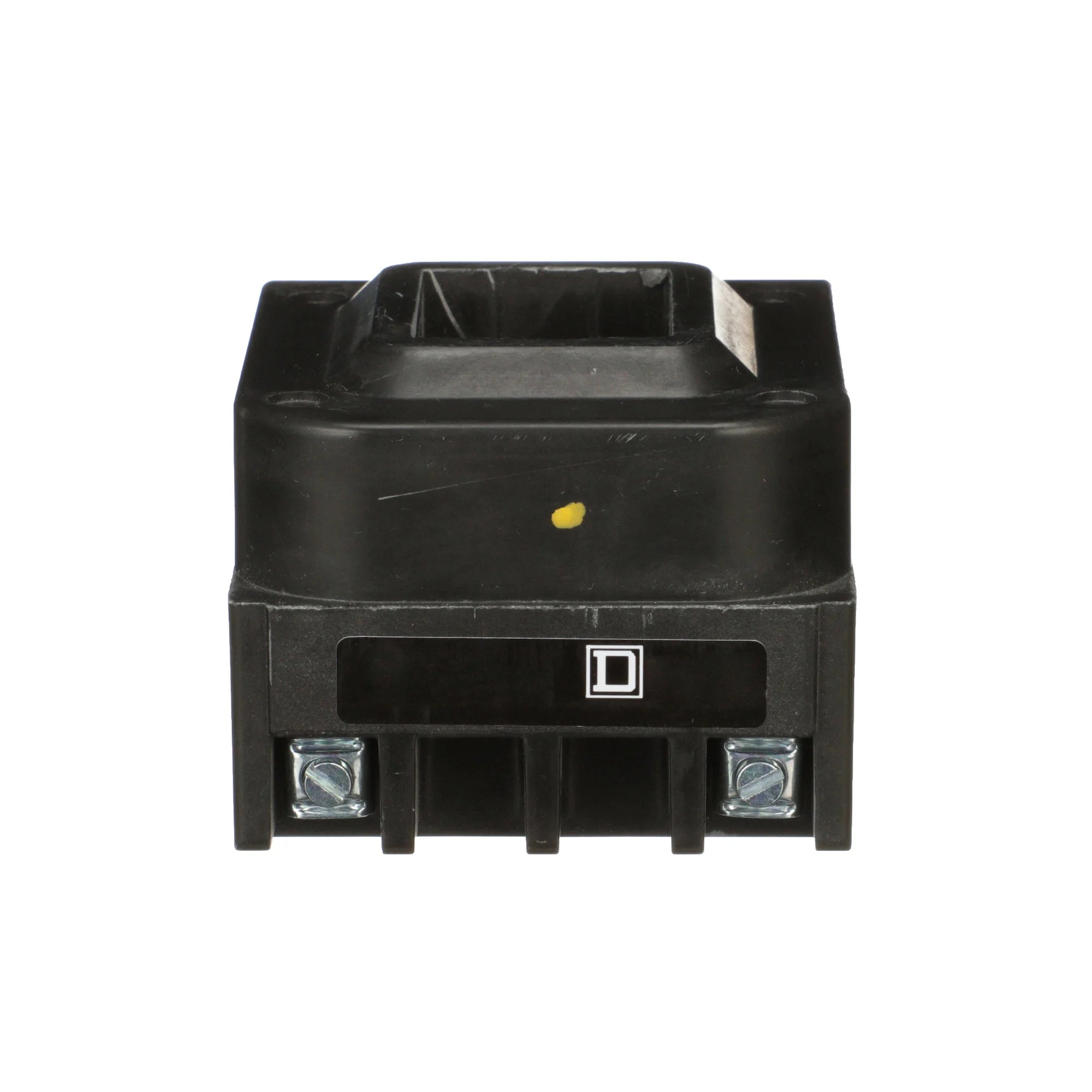

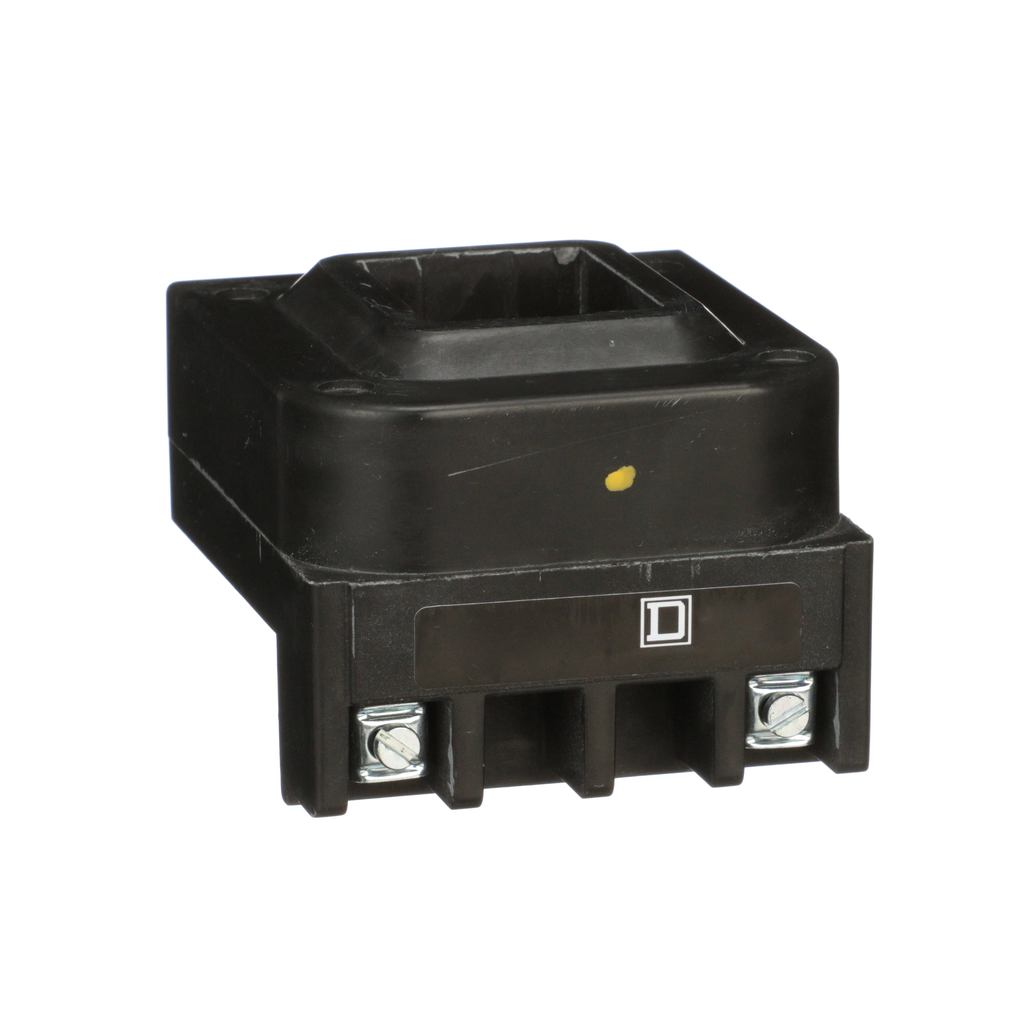

Square D 3107440057 440/480 VAC 100 Amp 50/60 Hz 678 VA Magnetic Contactor/Starter AC Coil

Product Description

The Square D 3107440057 is a magnetic contactor and starter AC coil used for controlling electrical circuits. This coil is ideal for replacing coils in Type S contactors or starters to accommodate various control circuit voltage applications. By switching the coil, users can avoid the high cost of purchasing a new contactor or starter. It is compatible with the 8502SE contactor, 8536SE starter, 8903SQ lighting contactor, and 8910DPA12 definite purpose contactor.

• Coil rated for 440/480 VAC 50/60 Hz
• Inrush power of 700 VA with an average sealed consumption of 46 VA
• Fully encapsulated design for protection

Product Highlights

This coil allows for cost-effective repairs of contactors and starters, enhancing operational efficiency.

Product Information

Standard Information

• Catalog Number: 3107440057
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 440 Volt
• Coil Voltage: 480 V
• NEMA Size: 3
• Dimensions: 73 mm height, 65 mm width, 53.2 mm depth
• Warranty Length: 18 months
• Operating Temperature: 40C ambient
