Square D 3107440047 220/240 VAC 100 Amp 50/60 Hz 678 VA Magnetic Contactor/Starter AC Coil

Product Description

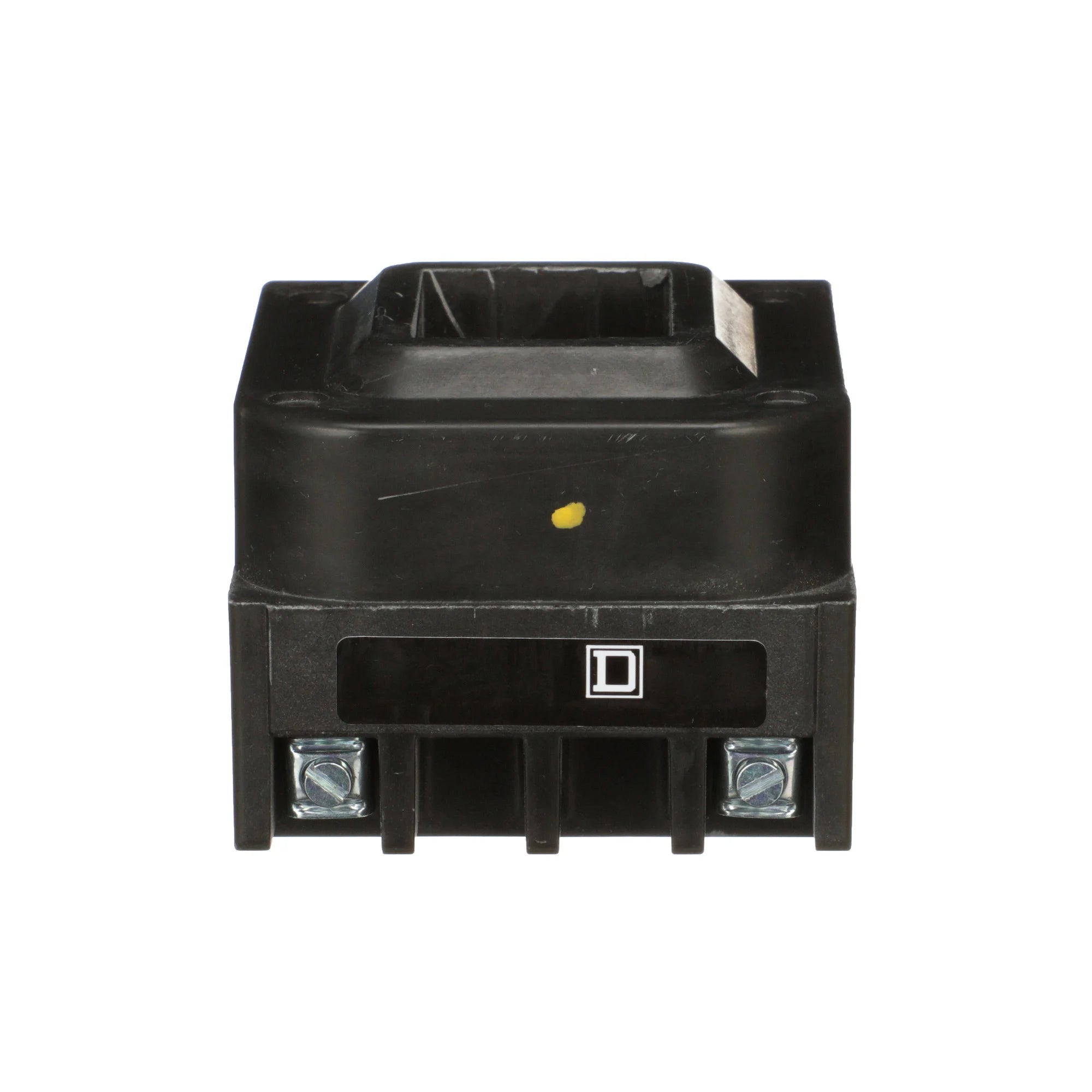

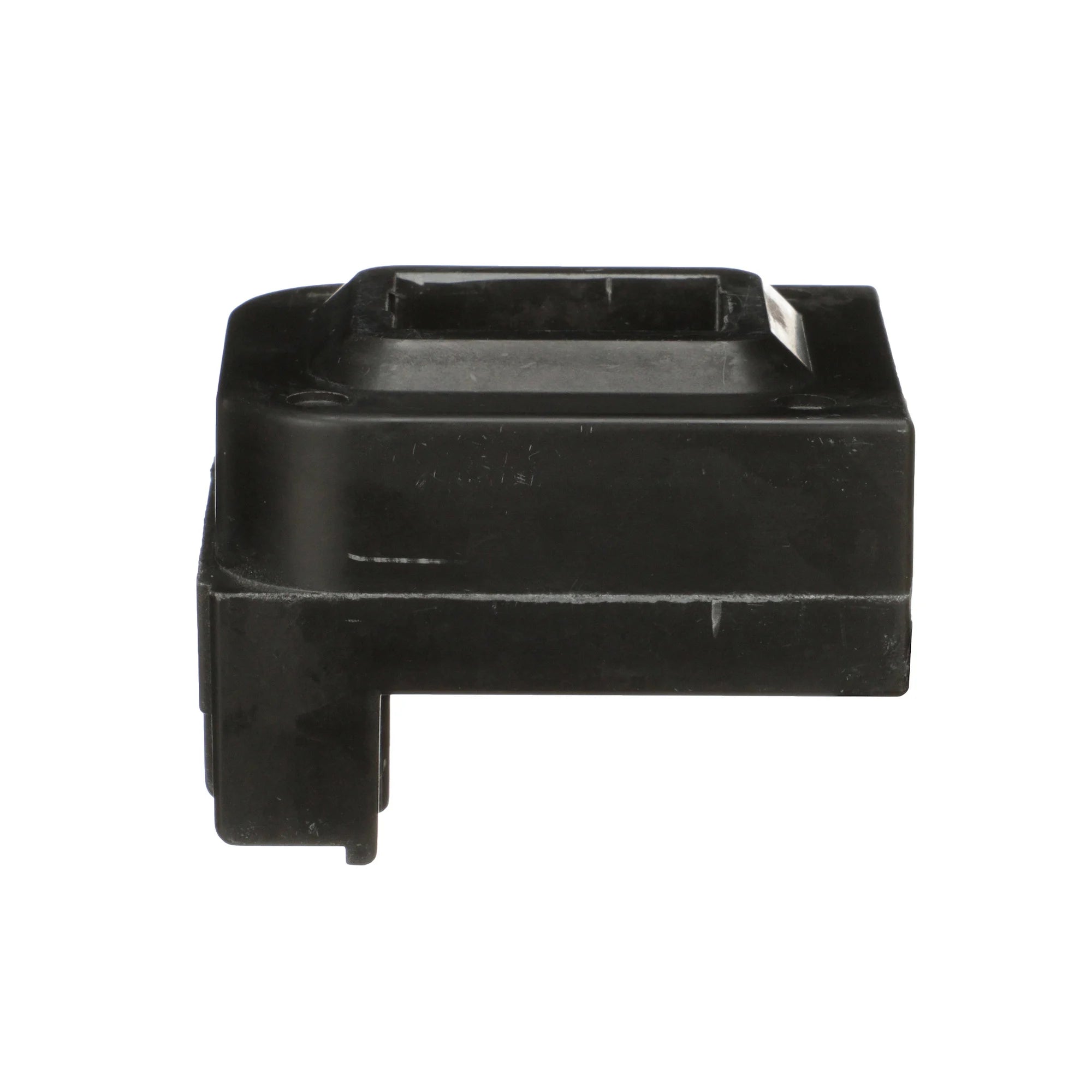

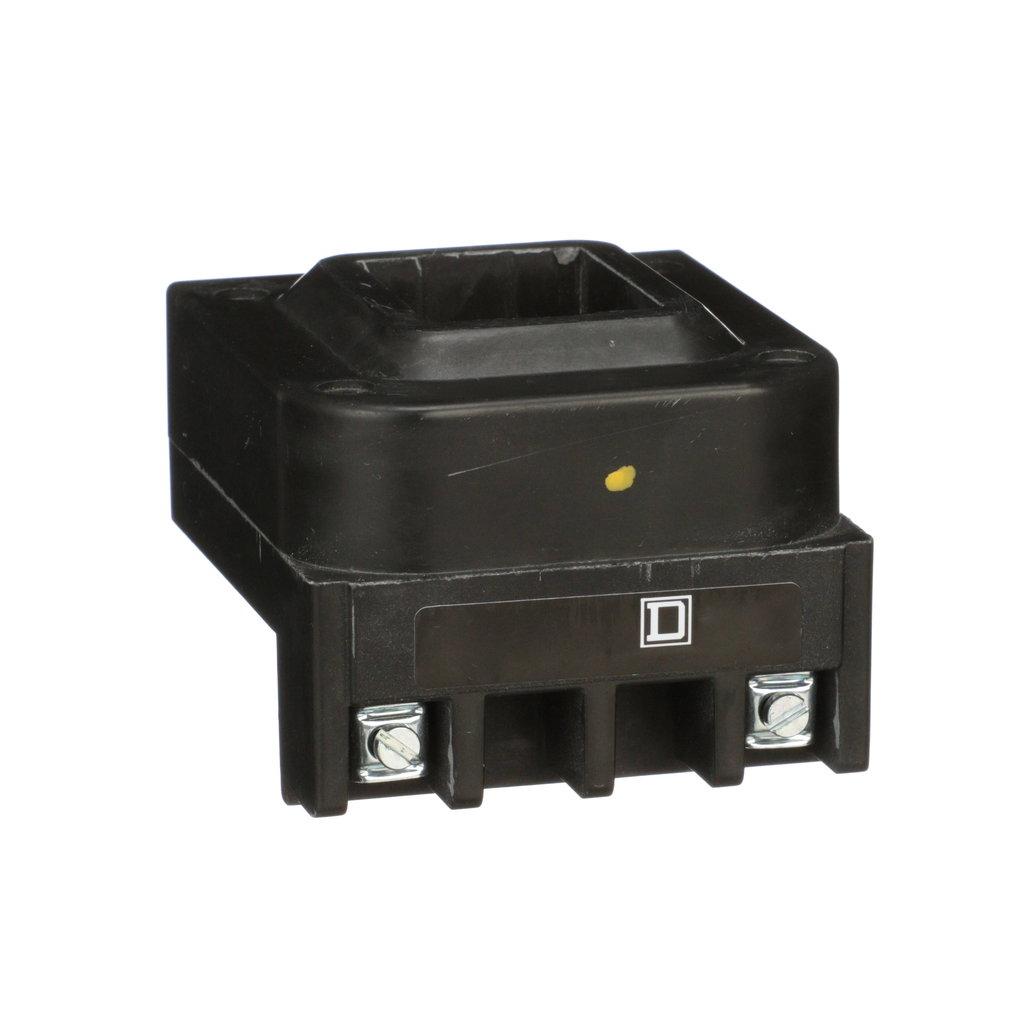

The Square D 3107440047 is a magnetic contactor and starter AC coil designed for use in various applications. This coil can replace the existing one in a Type S contactor or starter, allowing flexibility in controlling different voltage applications. Replacing the coil saves costs compared to purchasing a new contactor or starter. It is compatible with models such as the 8502SE and 8536SE starters and the 8903SQ lighting contactor. The coil operates at 220/240 VAC and functions effectively at 50/60 Hz.

• Rated for 220/240 VAC
• Average sealed consumption of 46 VA
• Fully encapsulated for protection

Product Highlights

This coil comes with UL and CSA approvals and can handle inrush power up to 700 VA.

Product Information

Standard Information

• Brand: Square D
• Catalog Number: 3107440047

Technical Specifications

• Voltage: 220 Volt
• Coil Voltage: 24 V
• Height: 73 mm
• Width: 65 mm
• Depth: 53.2 mm
• Operating Temperature: 40C Ambient
• Warranty Length: 18 months
• Country of Origin: Mexico
