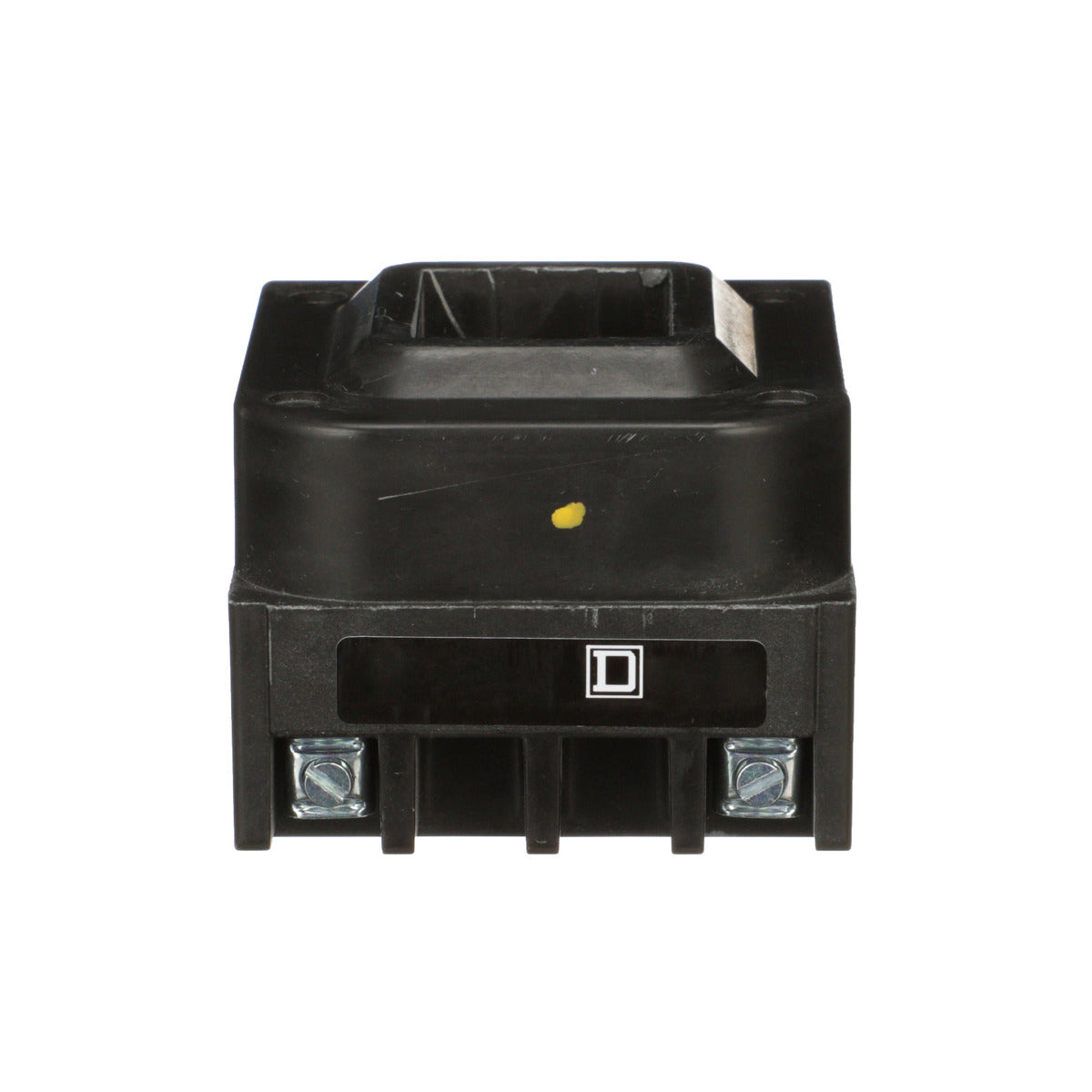

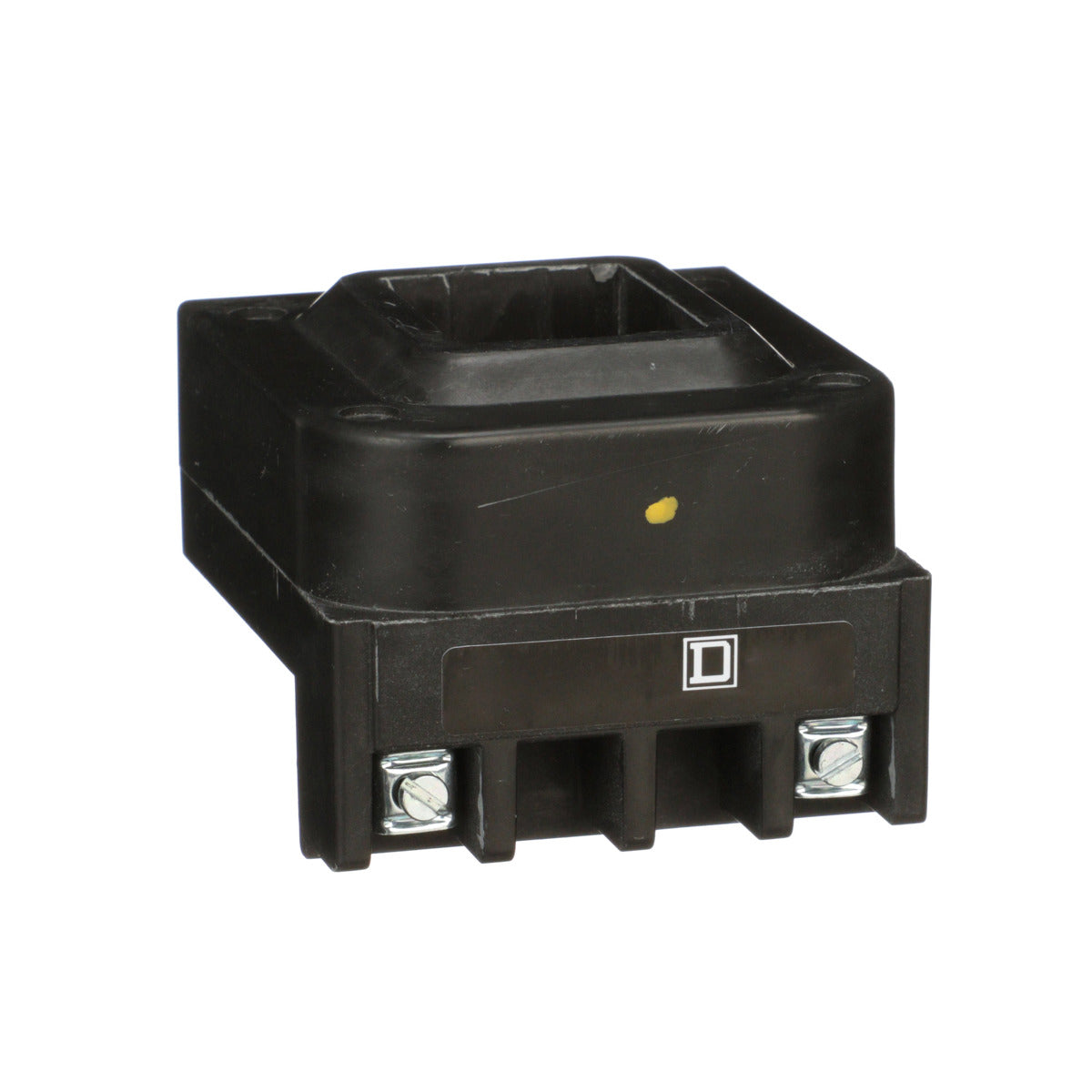

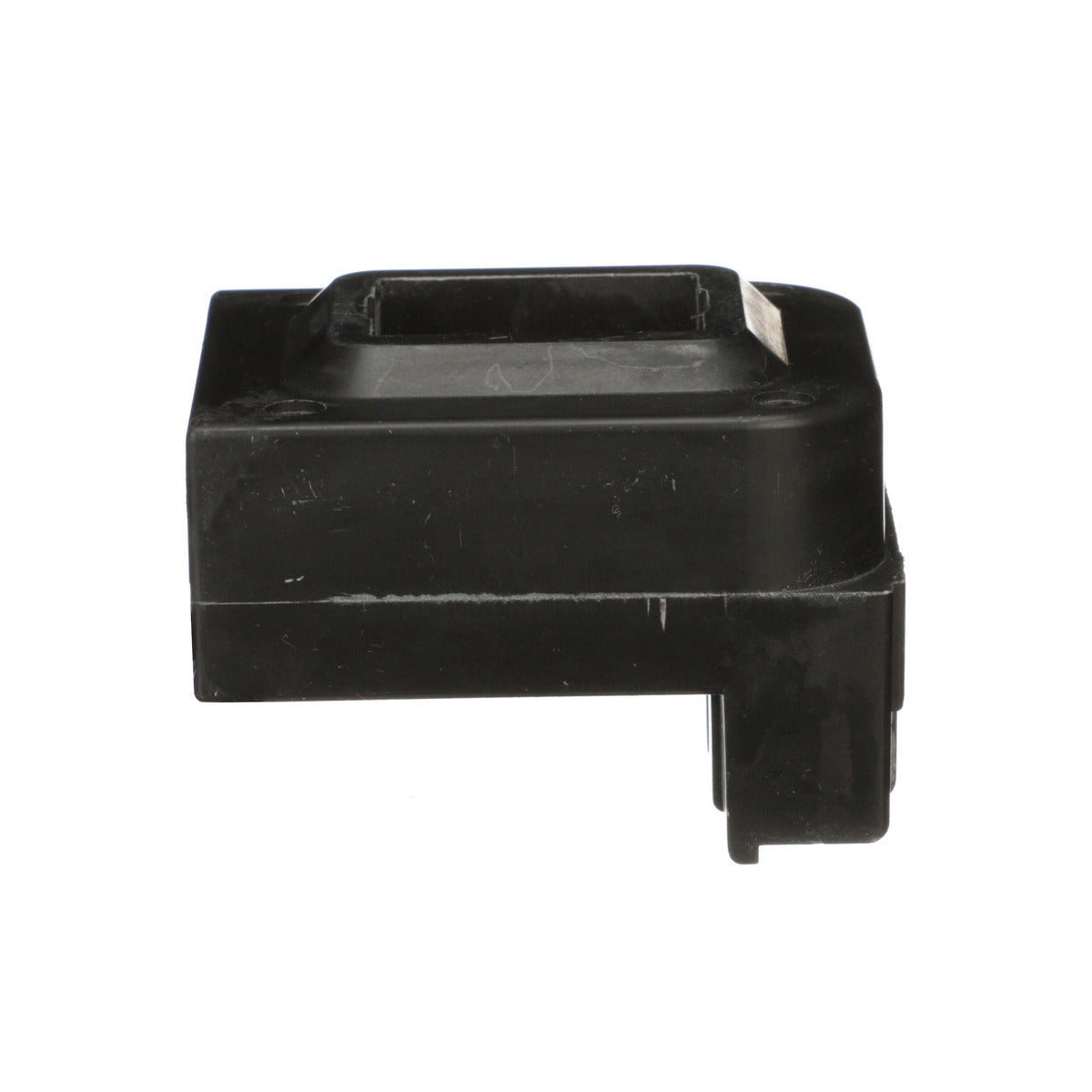

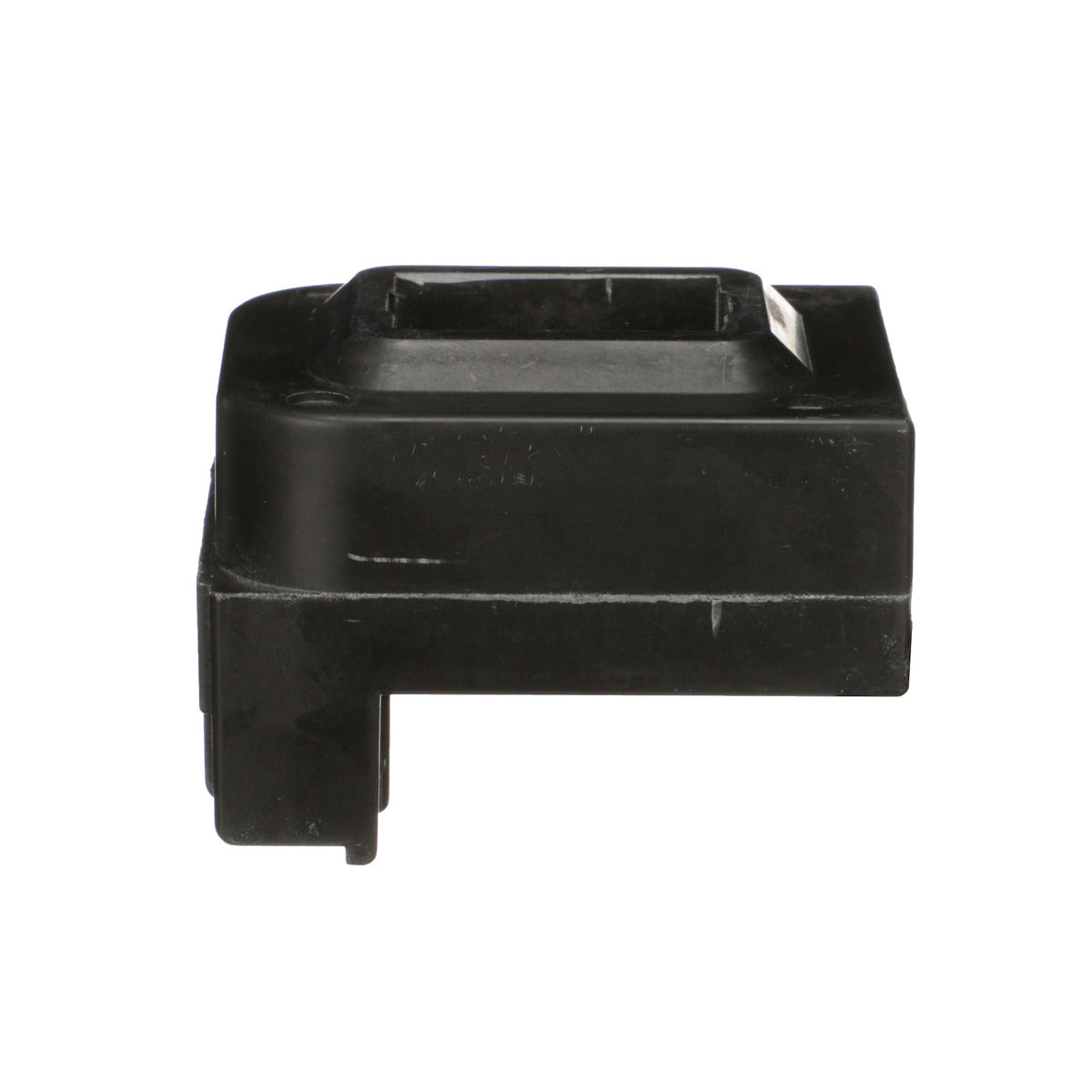

Square D 3107440044 208 VAC 100 Amp 60 Hz 700 VA Magnetic Contactor/Starter AC Coil

Product Description

The Square D 3107440044 is a replacement coil for Type S contactors and starters. This coil is designed for use in various voltage applications, specifically at 208 volts AC and sixty hertz. It provides significant cost savings by allowing the existing contactor or starter to be maintained instead of replaced. This coil is compatible with models such as the 8502SE contactor, 8536SE starter, 8903SQ lighting contactor, and 8910DPA12 definite purpose contactor.

• Rated for 208 VAC at 60 Hz
• Inrush power of 700 VA
• Average sealed consumption at 46 VA

Product Highlights

This coil features a compact design, fully encapsulated for durability. It has screw clamp connections for secure wiring and ease of installation.

Product Information

Standard Information

• Catalog Number: 3107440044
• Brand: Square D

Technical Specifications

• Voltage: 208 Volt
• NEMA Size: 3
• Height: 73 mm
• Width: 65 mm
• Depth: 53.2 mm
• Warranty Length: 18 months
• Country of Origin: Mexico
• Operating Temperature: 40C Ambient
