Square D 3106340957 440/480 VAC 60 Amp 50/60 Hz 296 VA Magnetic Contactor/Starter AC Coil

Product Description

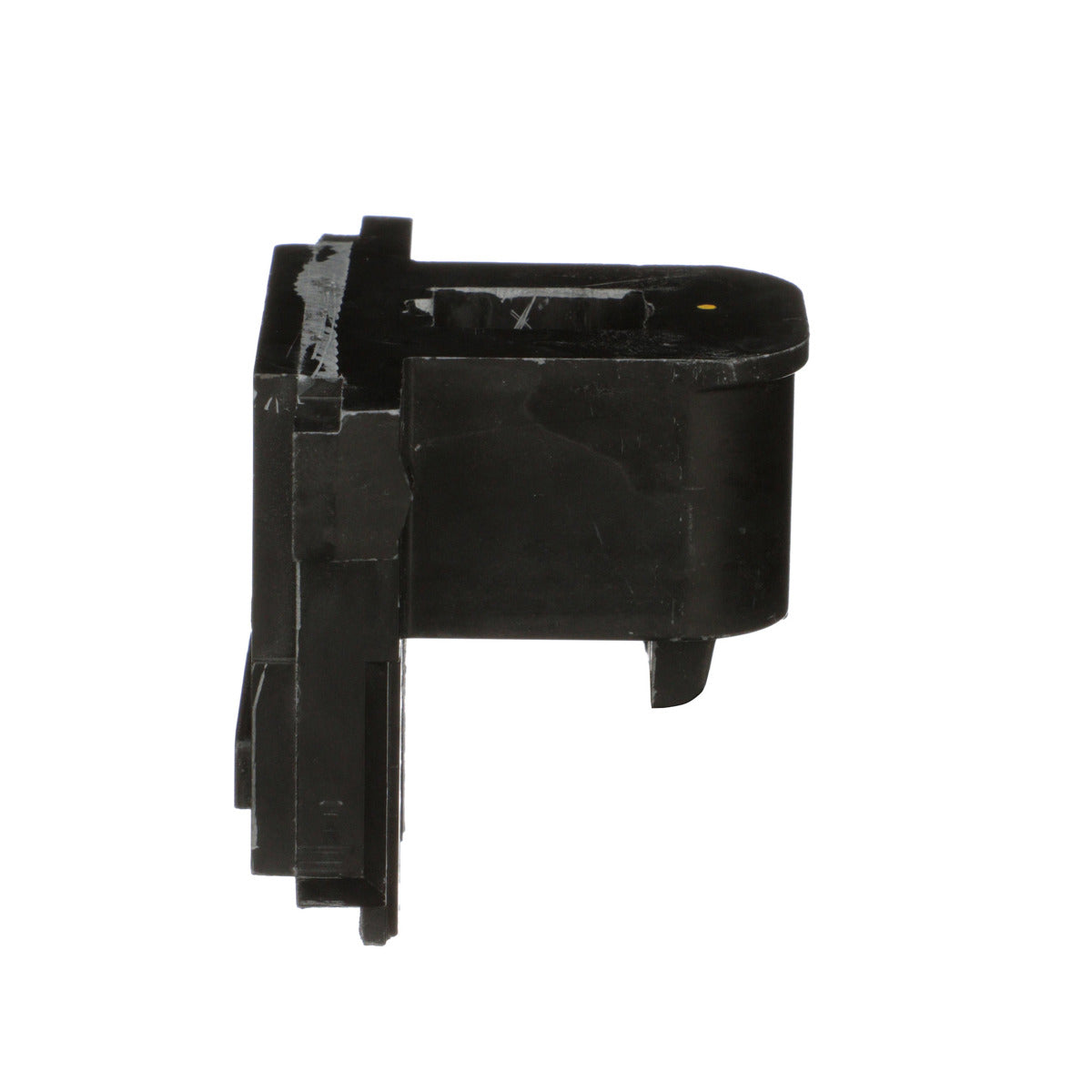

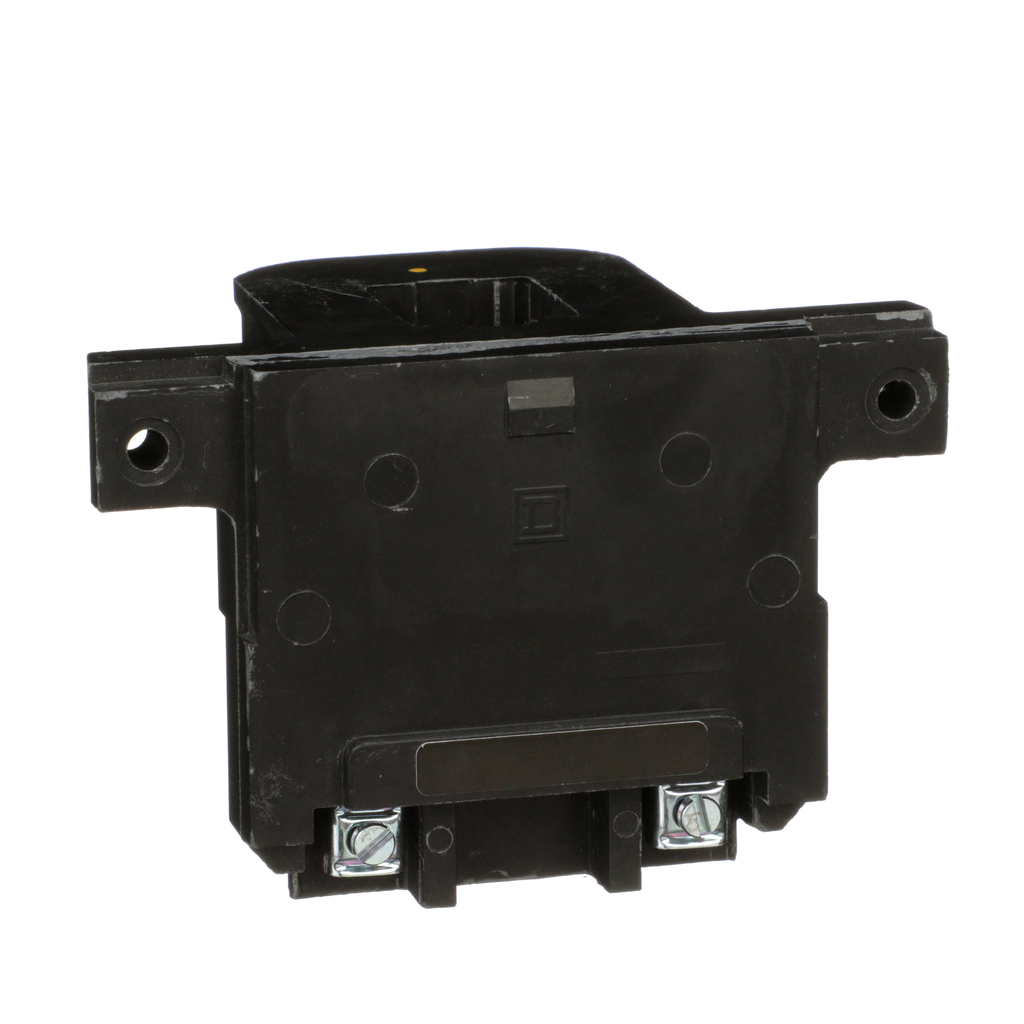

Square D presents the 3106340957, a reliable magnetic contactor starter coil designed for 440/480 VAC applications. This coil easily replaces the existing one in a Type S contactor or starter, enabling it to adapt to different control circuit voltage requirements. This feature can prevent the expense associated with replacing an entire contactor or starter due to a coil failure. The 3106340957 coil is compatible with various models, including the 8502SD contactor, 8536SD starter, and 8903SP lighting contactor.

• Rated for 440/480 VAC, 50/60 Hz.
• Features screw clamp connections for secure installation.
• Fully encapsulated for protection against environmental factors.

Product Highlights

This coil is suitable for a variety of applications and is essential for maintaining optimal operation in motor control settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 3106340957
• Voltage Rating: 440/480 VAC
• Frequency: 50/60 Hz
• Inrush Power: 311 VA
• Average Sealed Consumption: 37 VA
• Height: 66.2 mm
• Width: 101.1 mm
• Depth: 61.7 mm
• Connection Type: Screw clamp
• Warranty Length: 18 months
• Operating Temperature: 40C ambient
• Country of Origin: Mexico
