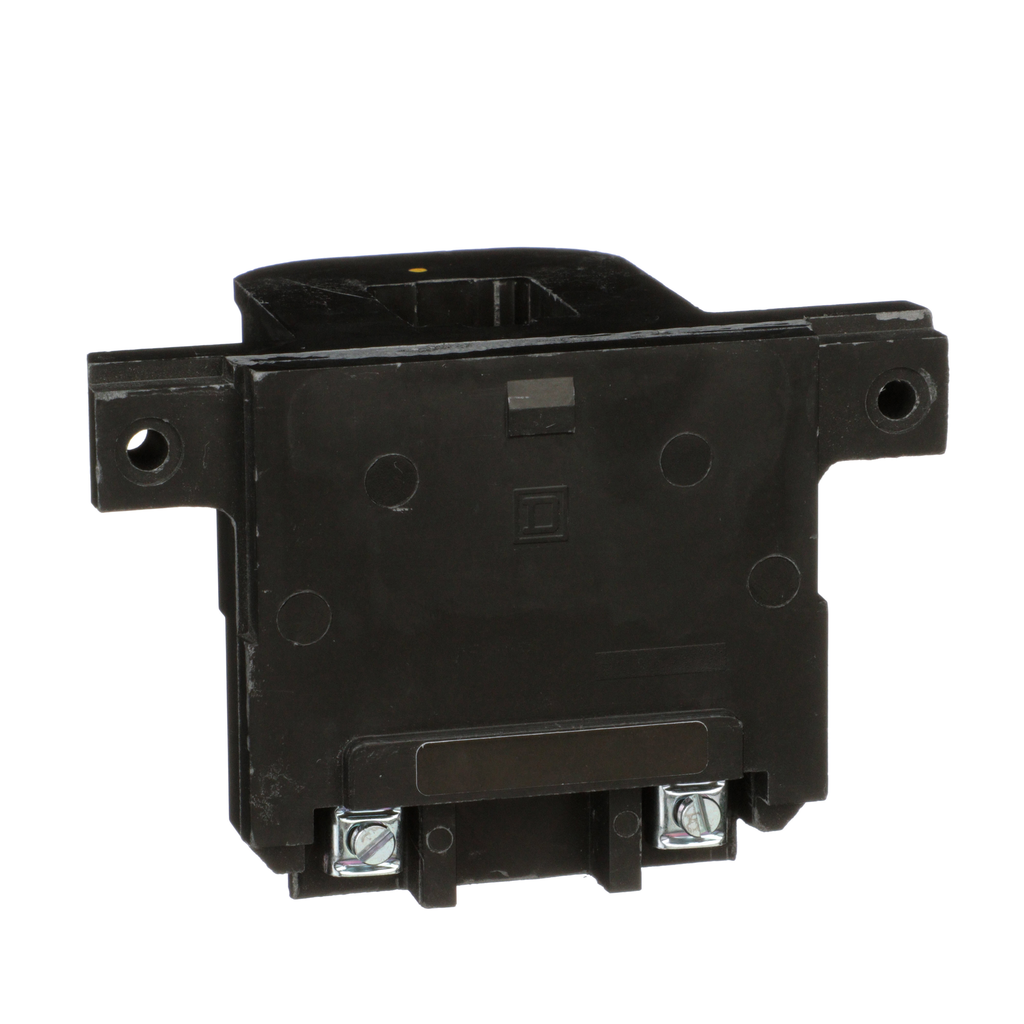

Square D 3106340944 magnetic contactor/starter AC coil 208 VAC 60 amp 60 Hz 311 VA

Product Description

The Square D 3106340944 is a magnetic contactor and starter AC coil rated for 208 VAC and 60 Hz. This coil can replace the existing one in a Type S contactor or starter, ensuring versatility across different control circuit voltage applications. Replacing just the coil saves costs compared to purchasing a new contactor or starter if the coil fails. It is compatible with various models including the 8502SD contactor, 8536SD starter, and 8903SP lighting contactor. The inrush power of this coil is 311 VA, with an average sealed consumption of 37 VA. It measures sixty-six point two millimeters in height, one hundred one point one millimeters in width, and sixty-one point seven millimeters in depth. The coil is fully encapsulated for protection and features screw clamp connections.

• Coil rated for 208 VAC, 60 Hz
• Compatible with Square D models: 8502SD, 8536SD, 8903SP
• Inrush power of 311 VA with 37 VA sealed consumption

Product Highlights

This coil provides a reliable and cost-effective solution for motor control applications by allowing easy replacement without the need for new equipment.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Voltage: 208 Volt
• NEMA Size: 2
• Coil Voltage: 208 V
• Height: 66.2 mm
• Width: 101.1 mm
• Depth: 61.7 mm
• Power Consumption: 37 VA
• Operating Cycles: 50/60 Hz
• Warranty Length: 18 months
