Square D 3106340938 Magnetic Contactor Starter AC Coil 110 to 115/120 VAC 60 Amp

Product Description

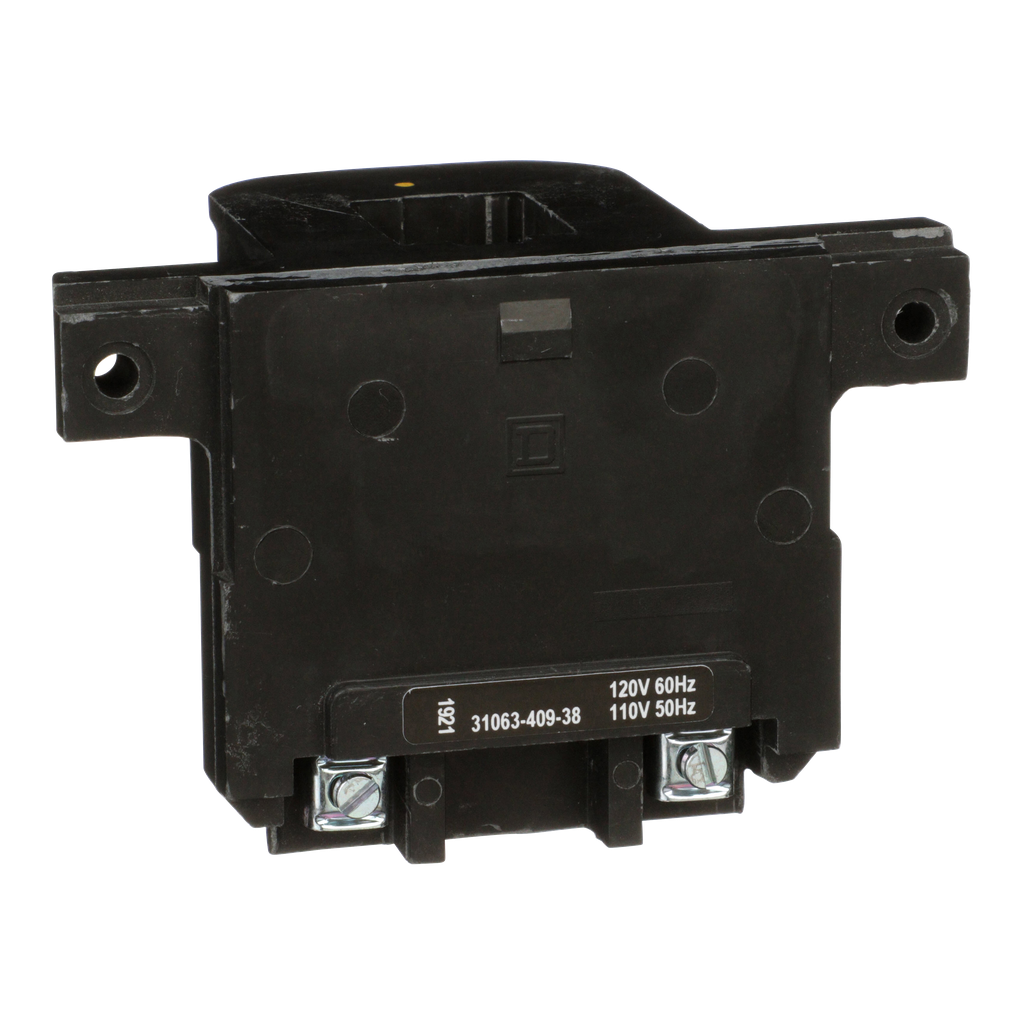

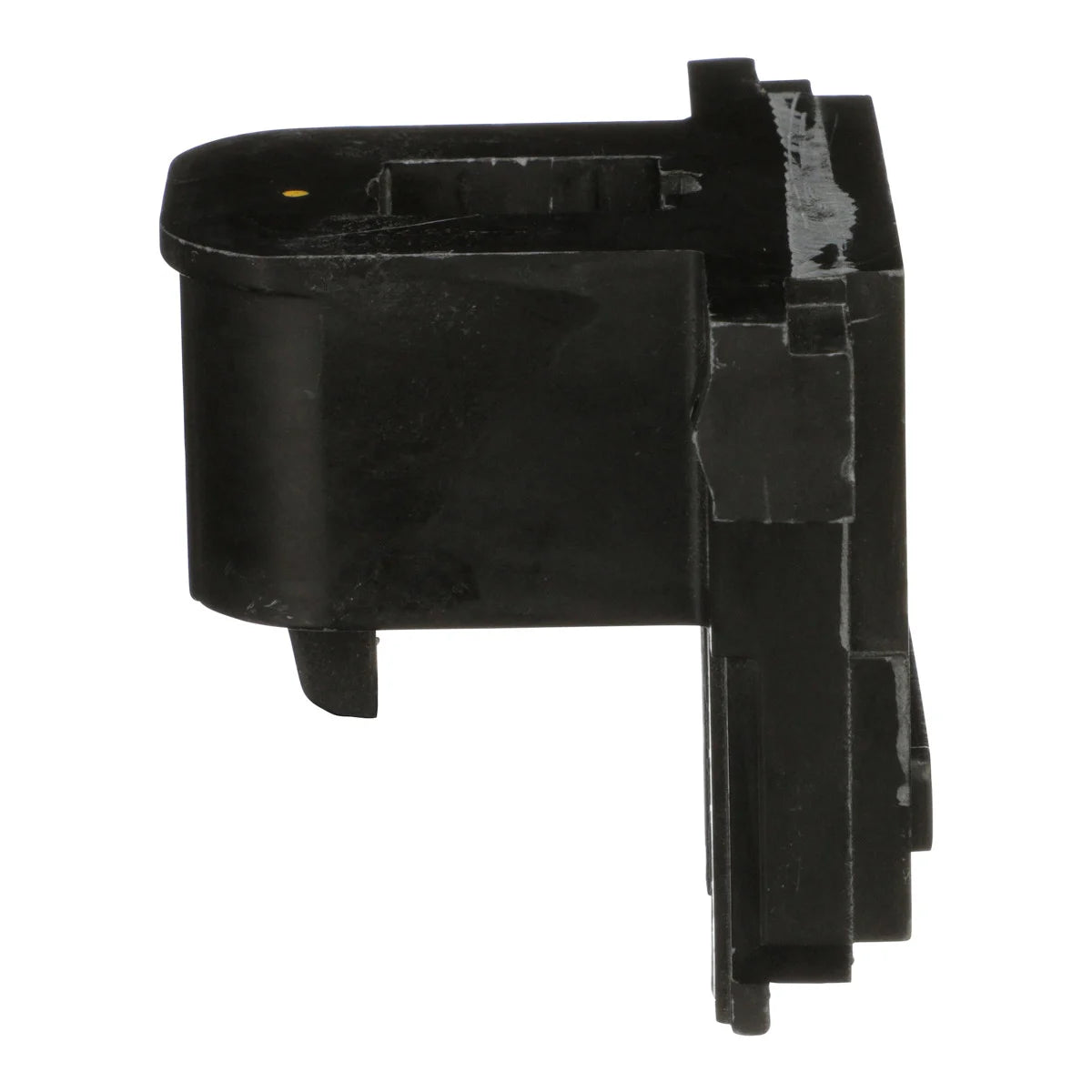

The Square D 3106340938 is a magnetic contactor and starter AC coil designed for applications requiring voltage control. This coil allows users to replace coils in Type S contactors or starters, enabling them to adapt to different control circuit voltage applications. By using this replacement coil, users can avoid the expense of purchasing a new contactor or starter if the original coil fails.

• Rated for 110/120 VAC and 50/60 Hz.
• Coil features screw clamp connections for safe and secure wiring.
• Compact dimensions of height: sixty-six point two millimeters, width: one hundred one point one millimeters, depth: sixty-one point seven millimeters.

Product Highlights

This coil is fully encapsulated for durability and reliability. It is compatible with the 8502SD contactor, the 8536SD starter, and the 8903SP lighting contactor.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 110/120 Volt
• Power Consumption: 37 VA average
• Inrush Power: 311 VA
• Operating Cycles: 50/60 Hz
• Warranty Length: 18 months
• Country of Origin: Mexico
