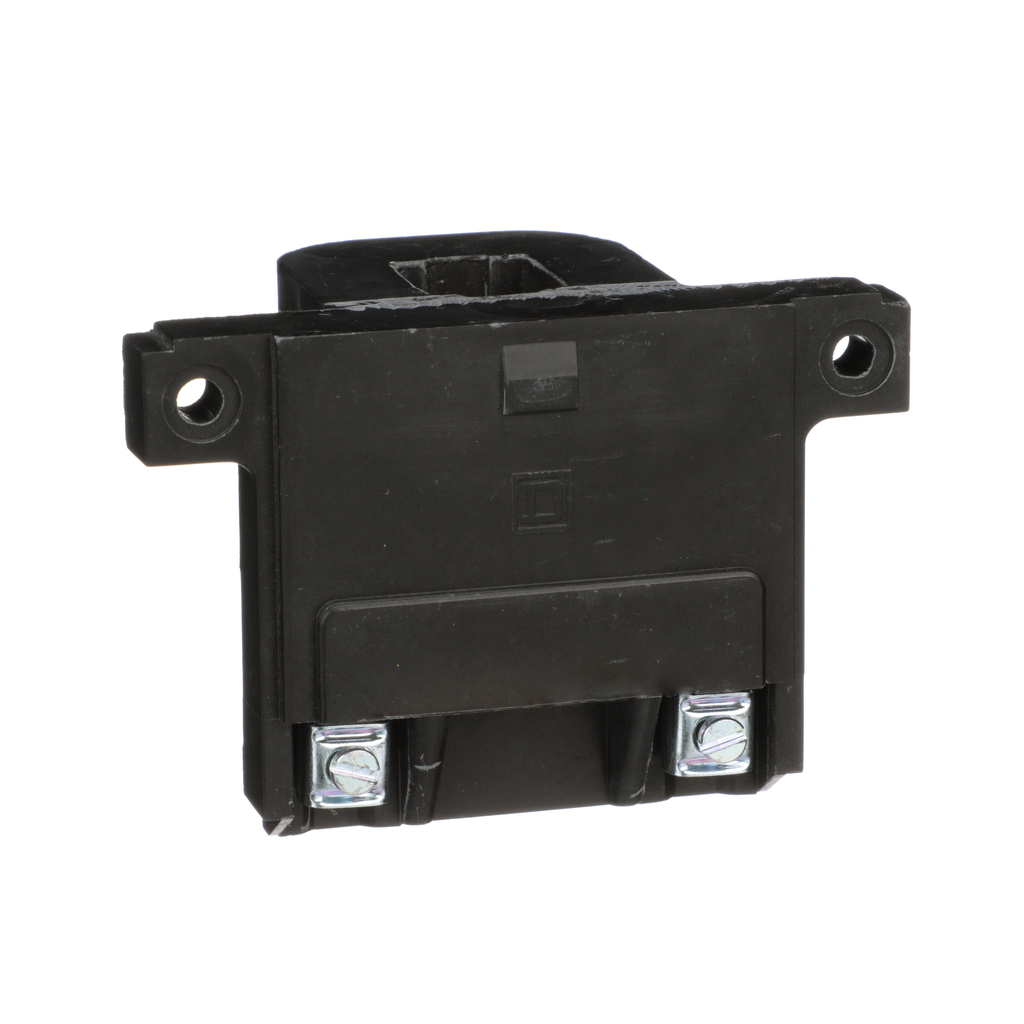

Square D 3104140052 Magnetic Contactor Starter AC Coil 277 VAC 30 Amp 60 Hz

Product Description

Square D offers the 3104140052 magnetic contactor starter AC coil for diverse control circuit needs. This coil is compatible with various contactors including type S models such as 8502SA, series A, and others. It provides a solution for failing coils without needing to replace the entire contactor. This item operates effectively at 277 VAC at 60 Hertz with an inrush power of 245 VA and an average consumption of 27 VA.

• Coil can be replaced easily in type S contactor or starter
• Compatible with 8502SA, 8502SB, and 8903SM contactors
• Fully encapsulated for protection

Product Highlights

This coil is designed to adapt to different control circuit voltage applications, offering significant cost savings and ease of maintenance.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 277 V
• Power Consumption: 27 VA
• Inrush Power: 245 VA
• Height: 54.7 mm
• Width: 81.5 mm
• Depth: 48.3 mm
• Warranty Length: 18 months
• Operating Temperature: Up to 40C
• Country of Origin: Mexico
