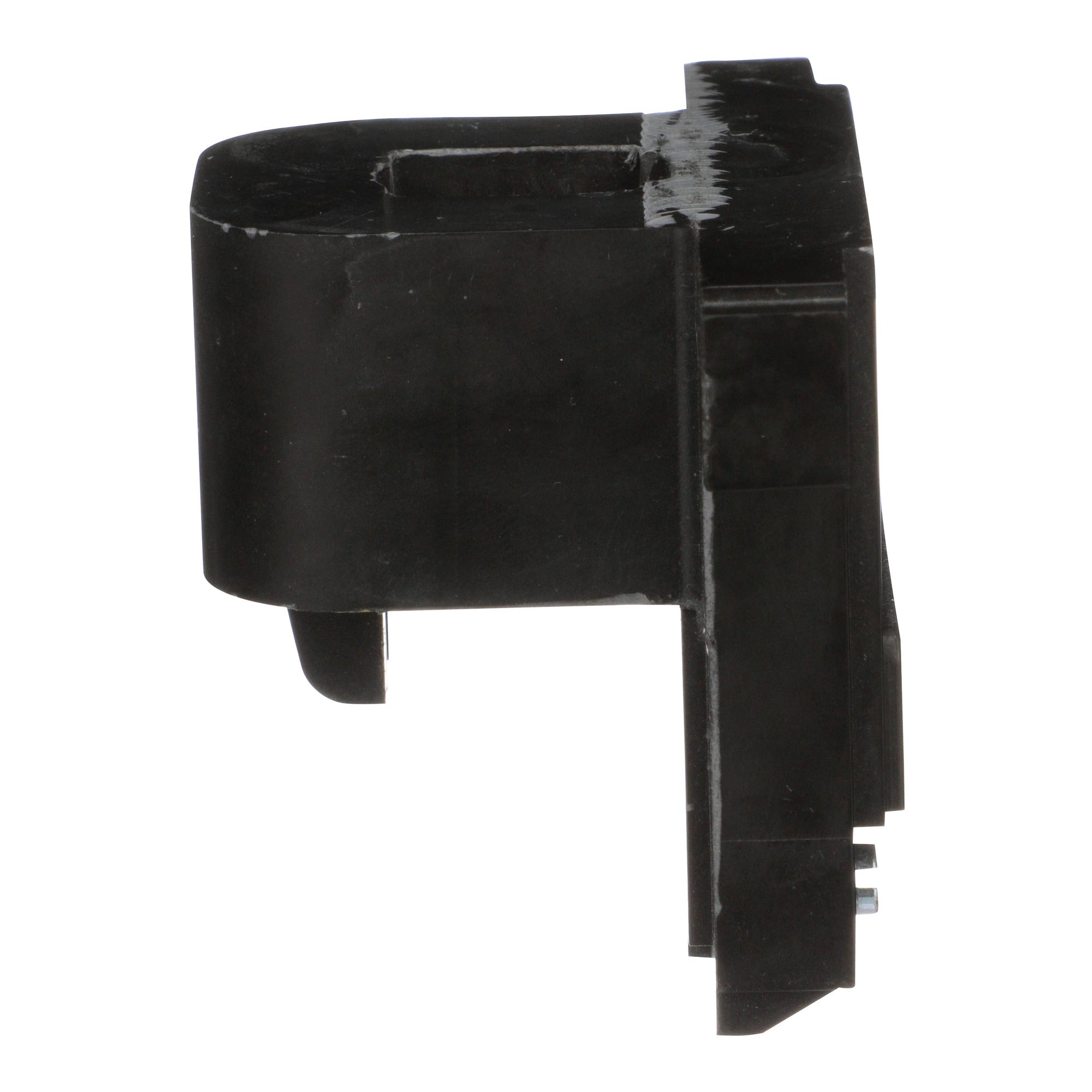

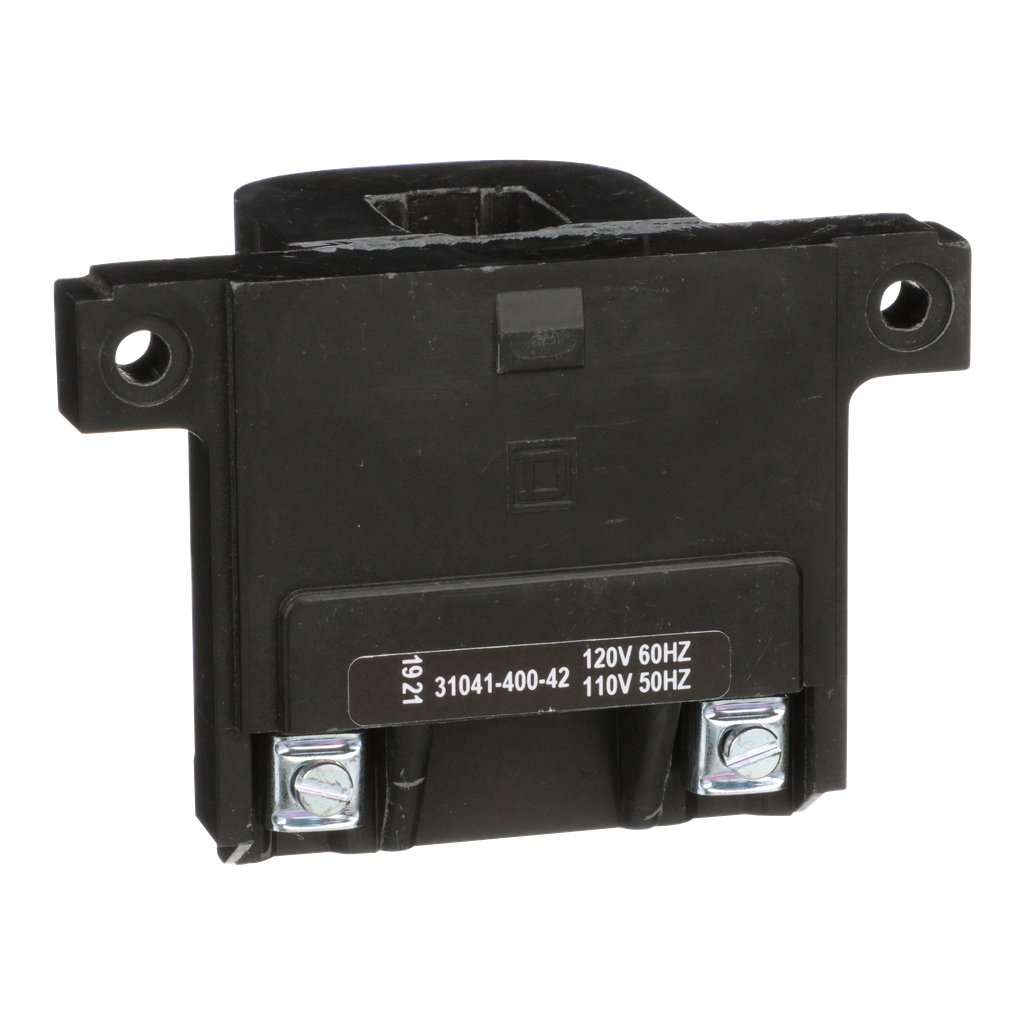

Square D 31041-400-42 120V Coil for Magnetic Contactor

Product Description

This Square D 31041-400-42 120V coil is designed to operate magnetic contactors, providing reliable control over electrical circuits in industrial settings. Constructed with high-quality materials, this coil ensures durability and extended service life.

• Designed for Type S contactors and starters
• 110/120 VAC 50/60 Hz rated
• Compatible with 8502SA, 8502SB, 8502SC, 8536SA, 8536SB, 8536SC and 8903SM series

Product Highlights

The Square D 31041-400-42 coil allows for easy replacement in existing Type S contactors or starters, making it adaptable for various control circuit voltage applications. Its screw clamp connections and encapsulated design ensure secure and protected installation.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• MPN: 31041-400-42

Technical Specifications

• Voltage: 110/120 VAC
• Frequency: 50/60 Hz
• Inrush Power: 245 VA
• Average Sealed Consumption: 27 VA
• Height: 54.7 mm
• Width: 81.5 mm
• Depth: 48.3 mm
• Connections: Screw clamp
• Application: Contactors and Starters
