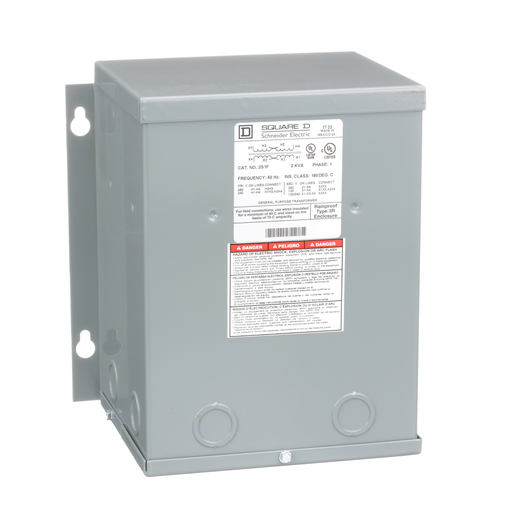

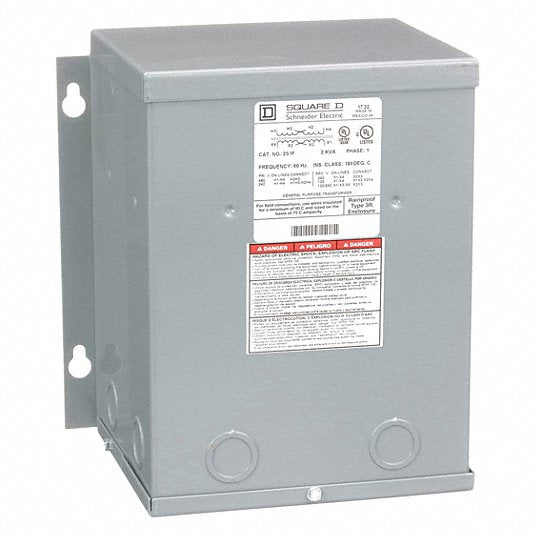

SQUARE D 2S1F Dry Type Power Distribution Transformer 2 kVA Wall

Product Description

The Square D 2S1F is a dry type power distribution transformer with a power rating of two kilovolt-amperes (kVA). This transformer is designed to step down voltage in high current applications, making it suitable for both residential and commercial use. It features a durable NEMA 3R enclosure that protects against external elements, and it includes knockouts for easy installation.

• Rated for indoor or outdoor use
• Equipped with aluminum windings
• IP54 rated for dust and water protection

Product Highlights

This transformer is ideal for power distribution across various installations. It efficiently converts higher voltages into lower voltages suitable for specific applications and is compliant with CSA and UL standards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 2S1F

Technical Specifications

• Enclosure Finish: Painted
• Enclosure Material: Steel
• Frequency: 60 Hz
• IP Rating: IP54
• Input Voltage: 240V AC; 480V AC
• Knockout Size: 1/2 in; 3/4 in
• NEMA Enclosure Rating: 3R
• Output Voltage: 120V AC; 240V AC
• Overall Depth: 6.56 in
• Overall Height: 9.56 in
• Overall Width: 8.68 in
• Phase: Single
• Sound Level: 37 dB
• Standards: CSA Certified; cULus; UL Listed
• Temperature Rise: 115 °C
• Voltage Function: Step Down
• Winding Material: Aluminum
• Primary Voltage: 240 / 480 V
• Secondary Voltage: 120/240 V
• Temperature Rating: 115 DEGREES C
• Type: Dry Sealed Transformer
