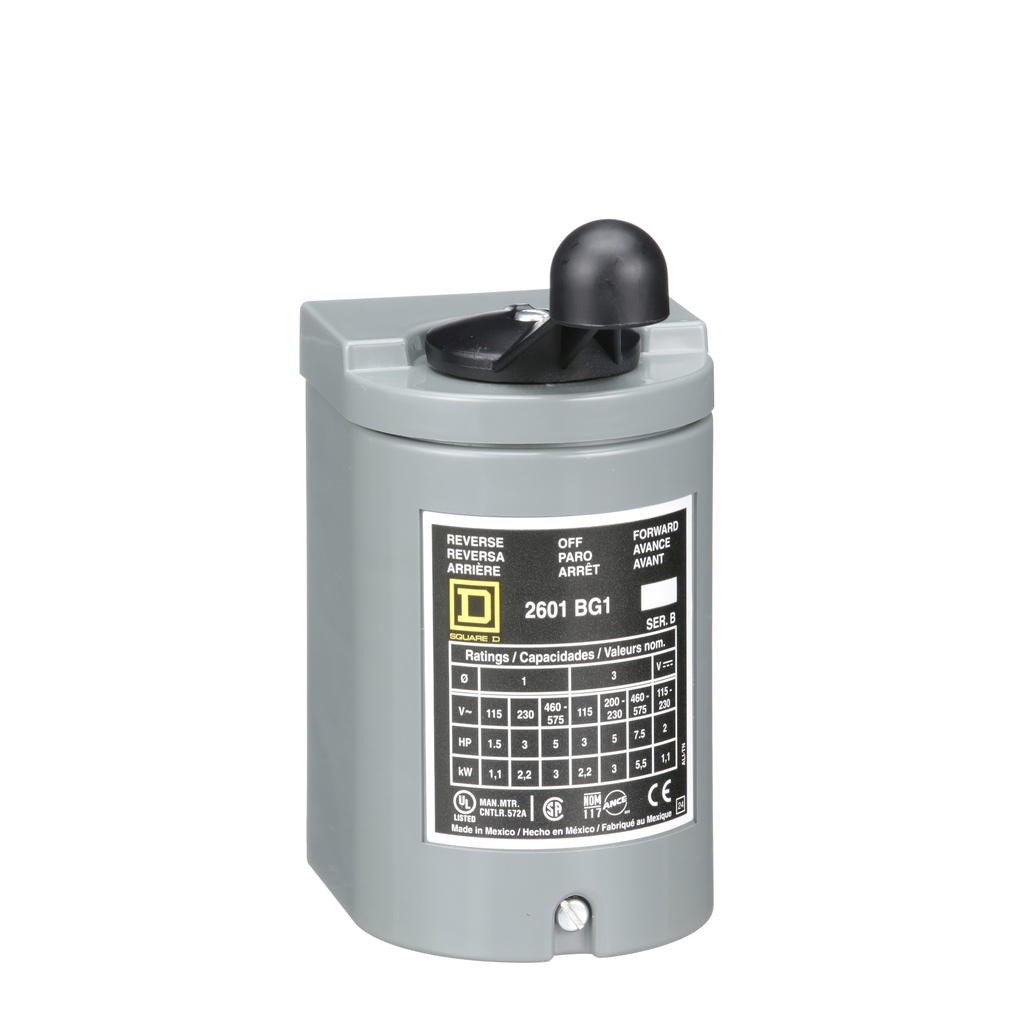

Square D 2601BG1 600 Vac 7.5 Hp Nema 1 Reversing Drum Switch

Product Description

The Square D 2601BG1 is a reversing drum switch designed for motors. It operates at a voltage of six hundred VAC and handles up to seven point five horsepower. This switch connects directly across the line to control the starting and reversing of motors, making it suitable for both single-phase and squirrel cage motors. This device supports both AC and DC motors, expanding its functionality for various applications. The NEMA 1 enclosure provides protection for general use, ensuring reliability and safety during operation.

• Designed to control machine tools and woodworking machines.
• Features a one-piece molded handle for ease of use.
• Compatible with multiple horsepower ratings for AC and DC motors.

Product Highlights

This product is UL listed and CSA certified, suitable for international applications and compliance with safety standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2601BG1
• Voltage: 250 Volt
• Depth: 4.61 inches
• Width: 2.68 inches
• Height: 5.38 inches
• Weight: 1.34 lbs
• Horsepower Ratings: 1.5 hp at 115 V AC; 2 hp at 230 V DC; 3 hp at 230 V AC; 5 hp at 460 V AC; 7.5 hp at 575 V AC
• Contact Rating: 1.5-7.5 HP across various voltages
• Number of Poles: 3
• Country of Origin: Mexico
