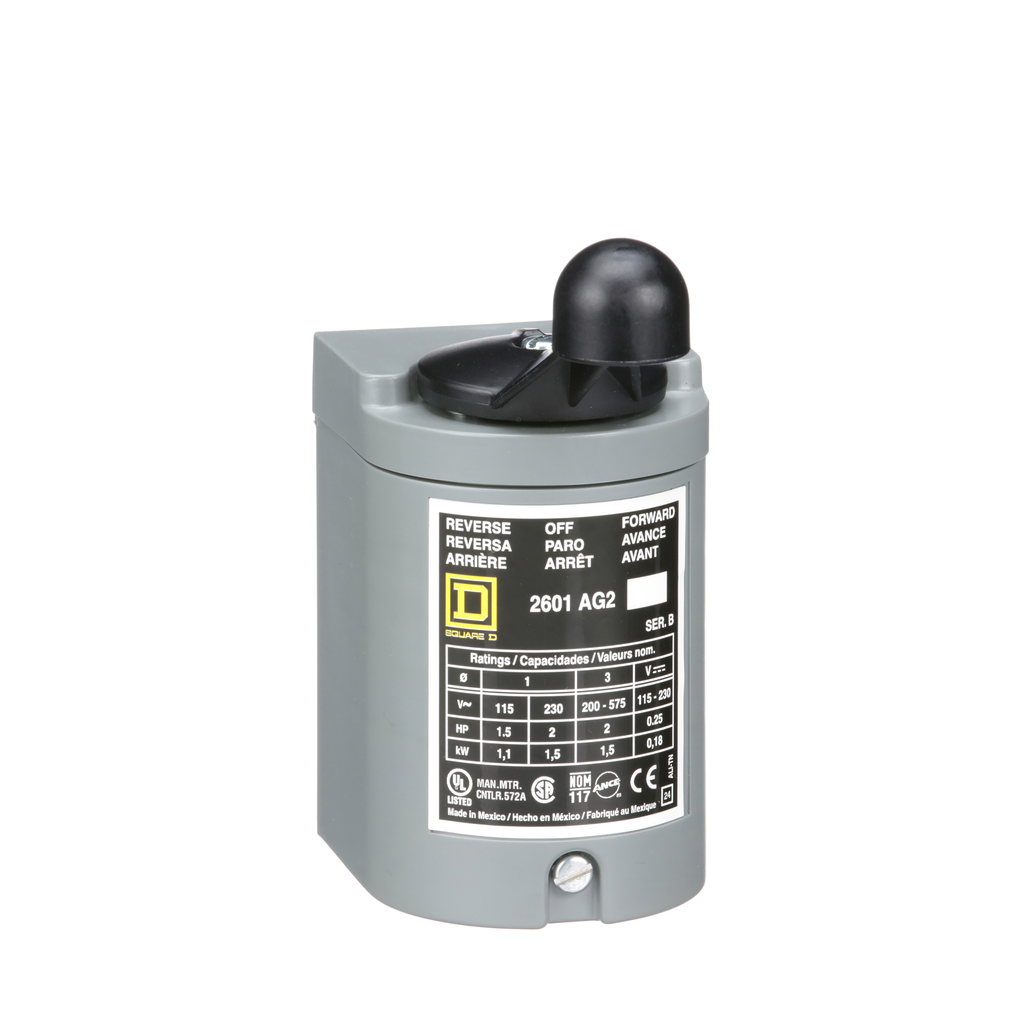

Square D 2601AG2 Reversing Drum Switch 600 VAC 2 Hp NEMA 1 Replacement MPN

Product Description

Square D 2601AG2 reversible drum switch is designed to start and reverse motors. This device connects directly across the line to initiate and control operation. It is compatible with both squirrel cage and single-phase motors. The switch works effectively with AC and DC motors, offering flexibility for various applications. Field conversion is possible, allowing the user to switch between maintained and momentary operation. It is housed in a NEMA 1 general-purpose enclosure suitable for indoor environments. The device has UL listing and CSA certification, ensuring global compliance.

• Suitable for squirrel cage and single-phase motors
• Field convertible from maintained to momentary operation
• Compatible with AC or DC motors

Product Highlights

Designed for effective motor control with a simple switching mechanism.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2601AG2
• Voltage: 600 Volt
• Horsepower Rating: 1.5 hp at 115 V AC, 2 hp at 230 V AC
• Enclosure Type: NEMA 1
• Dimensions: 4.61 in depth, 2.68 in width, 5.38 in height
• Weight: 1.34 lb
• Contact Rating: 1.5-2 hp for various voltage combinations
• Number of Poles: 3 Pole
• Certifications: UL Listed, CSA Certified
• Country of Origin: Mexico
• Warranty: 18 months
