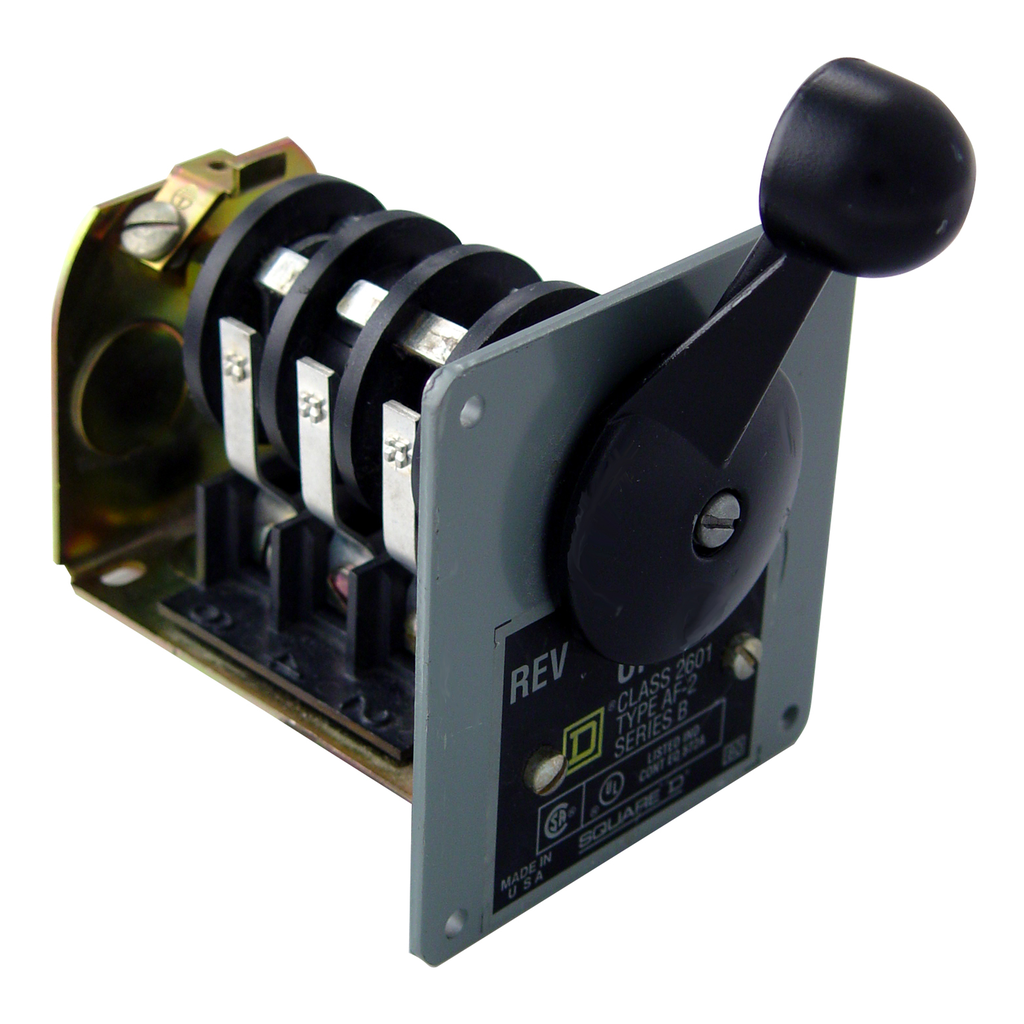

Square D 2601AF2 600 VAC 2 Hp NEMA 13 Reversing Drum Switch

Product Description

The Square D 2601AF2 is a reversing drum switch designed for starting and reversing motors. It connects directly across the line allowing for use with squirrel cage and single-phase motors. This switch supports both AC and DC motors and can be adapted from maintained to momentary operation.

• Operates at maximum voltage of 600 VAC and 250 VDC
• Rated for 1.5 HP at 115 VAC and 2 HP at 230 VAC and 2 HP at 575 VAC for three-phase service
• NEMA 13 oiltight flush mounting enclosure

Product Highlights

This 3 pole drum switch is equipped to handle various motor types and configurations, making it suitable for numerous applications where motor reversing is required.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 2601AF2
• Catalog Number: 2601AF2
• Height: 5.20 inches
• Width: 3.38 inches
• Depth: 5.58 inches
• Voltage: 250 Volt
• Horsepower Ratings: 1.5 hp at 115 V AC, 2 hp at 230 V AC, 2 hp at 575 VAC
• Number of Poles: 3 Pole
• Enclosure Rating: NEMA 13
• Certifications: UL Listed, CSA
• Country of Origin: Mexico
• Warranty Length: 18 months
