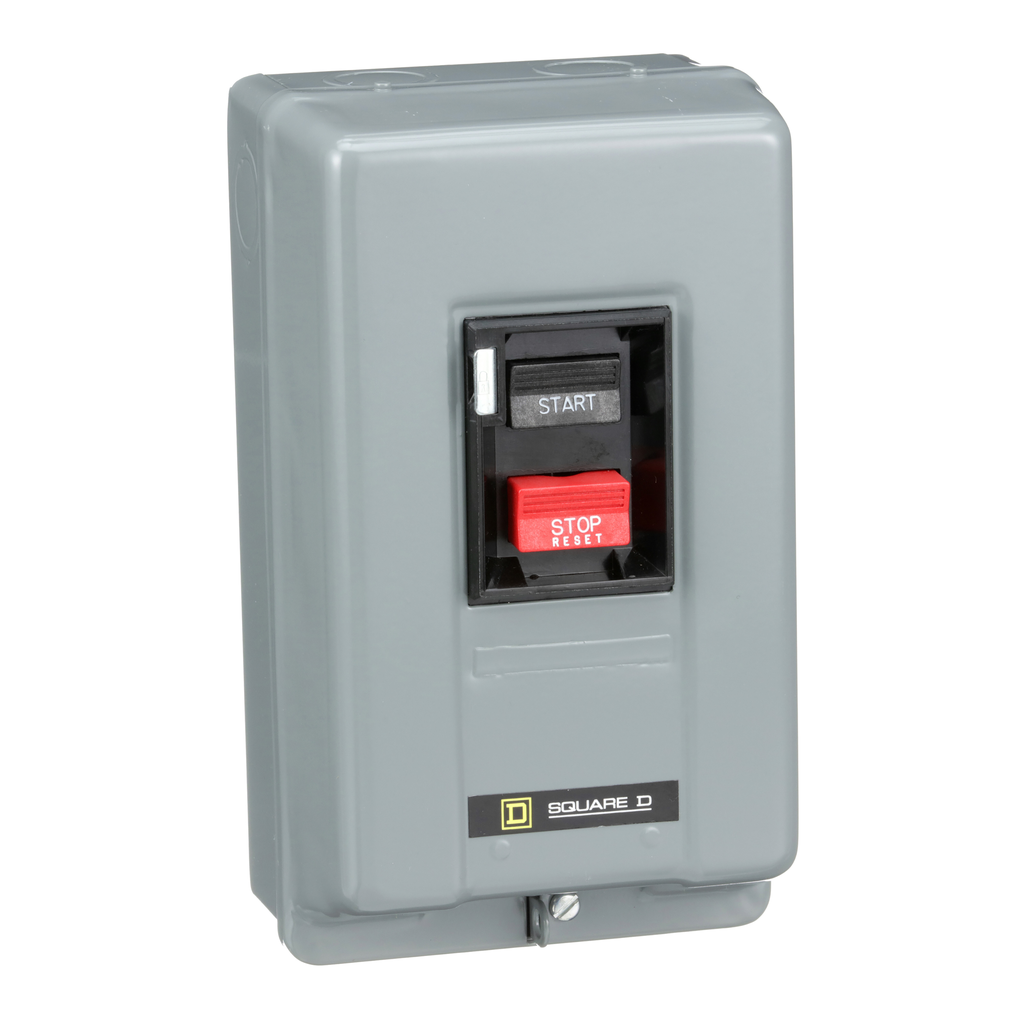

Square D 2510MCG3 Manual Starter 600 VAC 10 HP 3-Pole NEMA 1

Product Description

Square D 2510MCG3 is a manual starter designed for integral horsepower applications. It provides overload protection and control for small AC motors up to ten horsepower. This starter is suitable for various industrial and commercial uses such as fans, pumps, conveyors, and small machine tools. Overload heater elements must be matched to motor specifications and are sold separately.

• Rated for 600 Volts.
• Supports motors up to 10 HP at 380 to 575 VAC.
• Compatible with three melting alloy thermal units for overcurrent sensing.

Product Highlights

This manual starter is designed for easy installation and reliable operation. It features a NEMA 1 enclosure to protect against dust and moisture.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Catalog Number: 2510MCG3

Technical Specifications

• Voltage: 600 VAC
• Max Horsepower: 10 HP
• Amperage: 27 A
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Dimensions: 8.63 inches tall, 5.00 inches wide, 4.13 inches deep
• Weight: 4.21 lbs
• Country of Origin: Mexico
