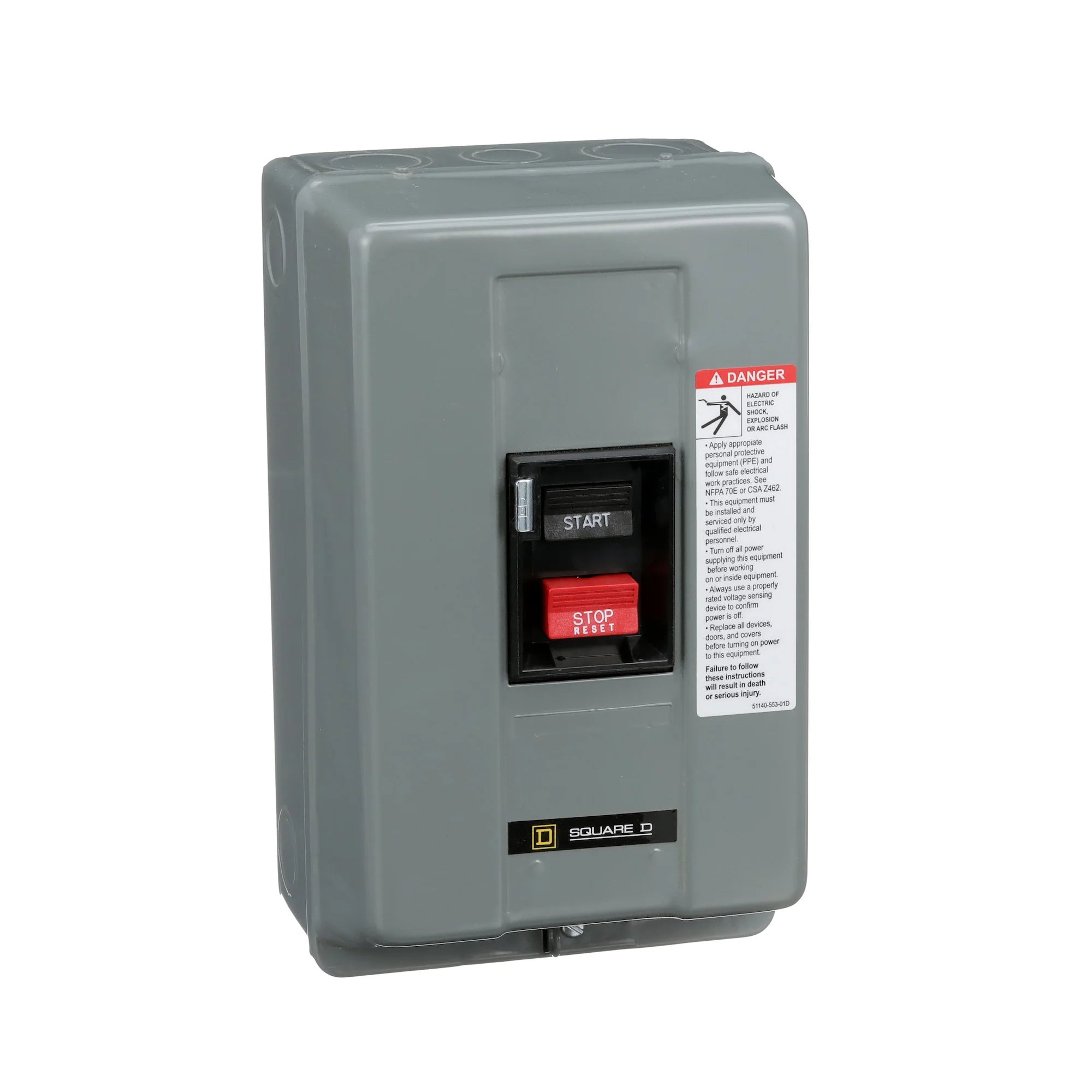

Square D 2510MCG2 Manual Starter, Integral Horsepower, NEMA M1P, 600VAC, 2 Pole, 5HP at 230VAC

Product Description

Square D offers the 2510MCG2 manual starter designed for integral horsepower control. This unit provides overload protection and allows for On-Off control of AC motors. The NEMA M1P housing is suitable for various industrial applications, and the design supports single or polyphase motors up to five horsepower. With UL Recognition and CSA Certification, the product is built to meet global safety standards.

• Provides overload protection for AC motors
• UL Recognized and CSA Certified
• Supports motors up to 5 HP at 230VAC

Product Highlights

The manual starter features a robust mechanism for reliable operation in commercial and industrial settings. It includes an option for locking in the Off position to prevent accidental activation, enhancing safety during maintenance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 2510MCG2
• Rated Operational Voltage: 600 V AC
• Number of Poles: 2
• Maximum Horse Power Rating: 5 HP at 230 VAC
• Thermal Overload Type: Melting alloy
• Weight: 6.02 lbs
• Dimensions: 5.22 in (depth) x 6 in (width) x 10 in (height)
• Country of Origin: Mexico
• Warranty Description: Contractual Warranty: 18 months
