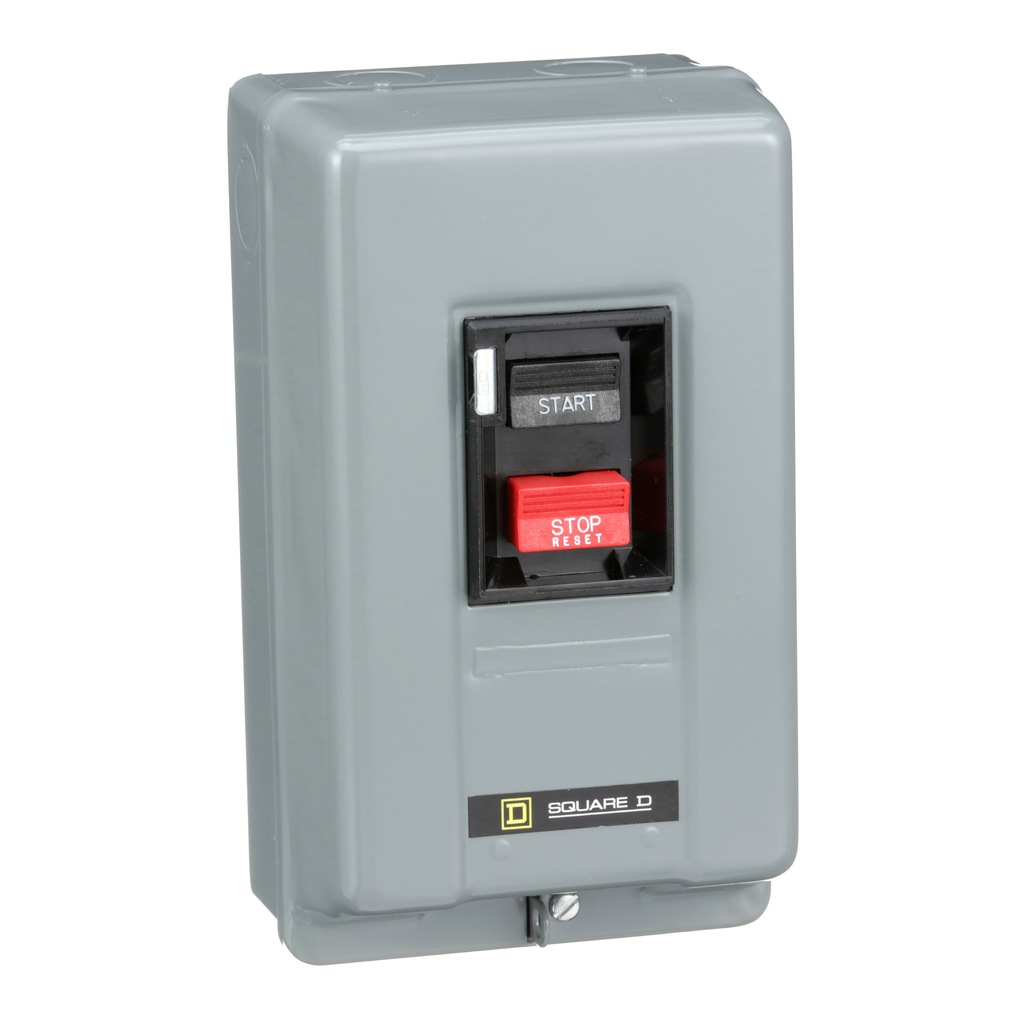

Square D 2510MCG1 Manual Starter 600 VAC 27 Amp 3 Hp 2-Pole NEMA 1

Product Description

The Square D 2510MCG1 is a manual motor starter designed for controlling small AC motors. This model operates at 600 VAC and offers overload protection for motors rated up to three horsepower at 230 VAC or two horsepower at 115 VAC. It features a non-reversing design suitable for various applications, including fans, pumps, conveyors, and small machine tools. Each thermal unit must be ordered separately to ensure proper overload protection for the connected motor. This starter is housed in a NEMA 1 rated enclosure, providing adequate protection in indoor environments.

• NEMA Size M-1, rated for two poles
• Thermal overload protection for motors
• Constructed of painted sheet steel for durability

Product Highlights

Reliable manual control for AC motors with effective overload protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510MCG1
• Voltage: 600 Volt
• Amperage: 27 A
• Number of Poles: 2
• Enclosure Type: NEMA 1
• Height: 8.63 inches
• Width: 5 inches
• Depth: 4.13 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
