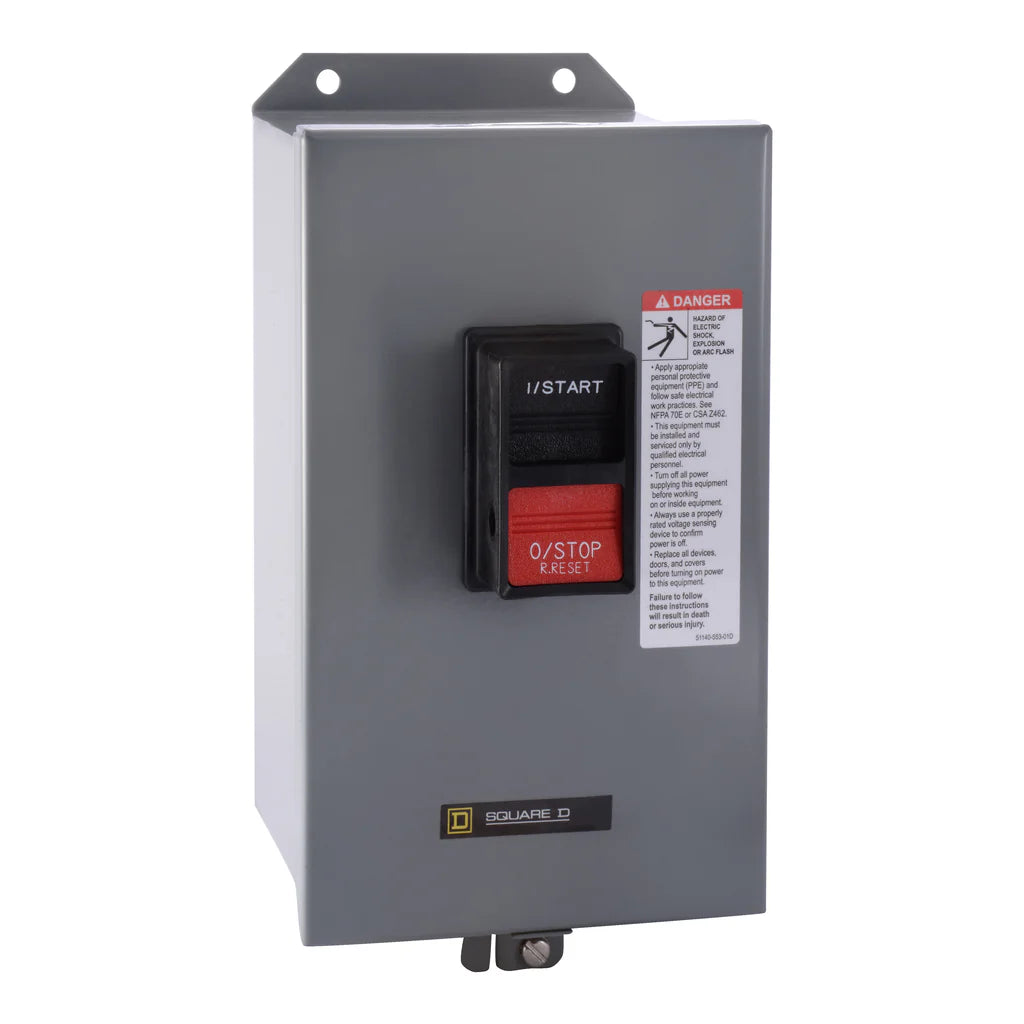

Square D 2510MCA3 Manual Starter 600 VAC 27 Amp 10 Hp 3 Pole NEMA 12

Product Description

Square D 2510MCA3 is a manual starter for controlling small AC motors. This product is designed for overload protection and features manual on and off control. It is ideal for various industrial applications including pumps, conveyors, and fans. Rated for 600 volts, the starter supports up to ten horsepower at 380 to 575 volts three-phase.

• Compatible with thermal overload protection systems.
• NEMA 12 enclosure for dust and drip resistance.
• Accepts wire sizes from 14 to 8 AWG copper.

Product Highlights

This Square D starter is UL listed and CSA certified as a reliable choice for motor control needs in harsh environments.

Product Information

Standard Information

• Brand: Square D
• MPN: 2510MCA3

Technical Specifications

• Catalog Number: 2510MCA3
• Voltage: 600 Volt
• Amperage: 27 Amp
• Number of Poles: 3 Pole
• Enclosure: NEMA 12
• Height: 10.92 inches
• Width: 5.78 inches
• Depth: 5.76 inches
• Country of Origin: Mexico
• Warranty: 18 months
• Thermal Unit Type: Melting alloy
