Square D 2510MBO2 Manual Starter Integral Horsepower 600VAC 3 Pole 5HP at 380575VAC 1 Phase No Indicator Open

Product Description

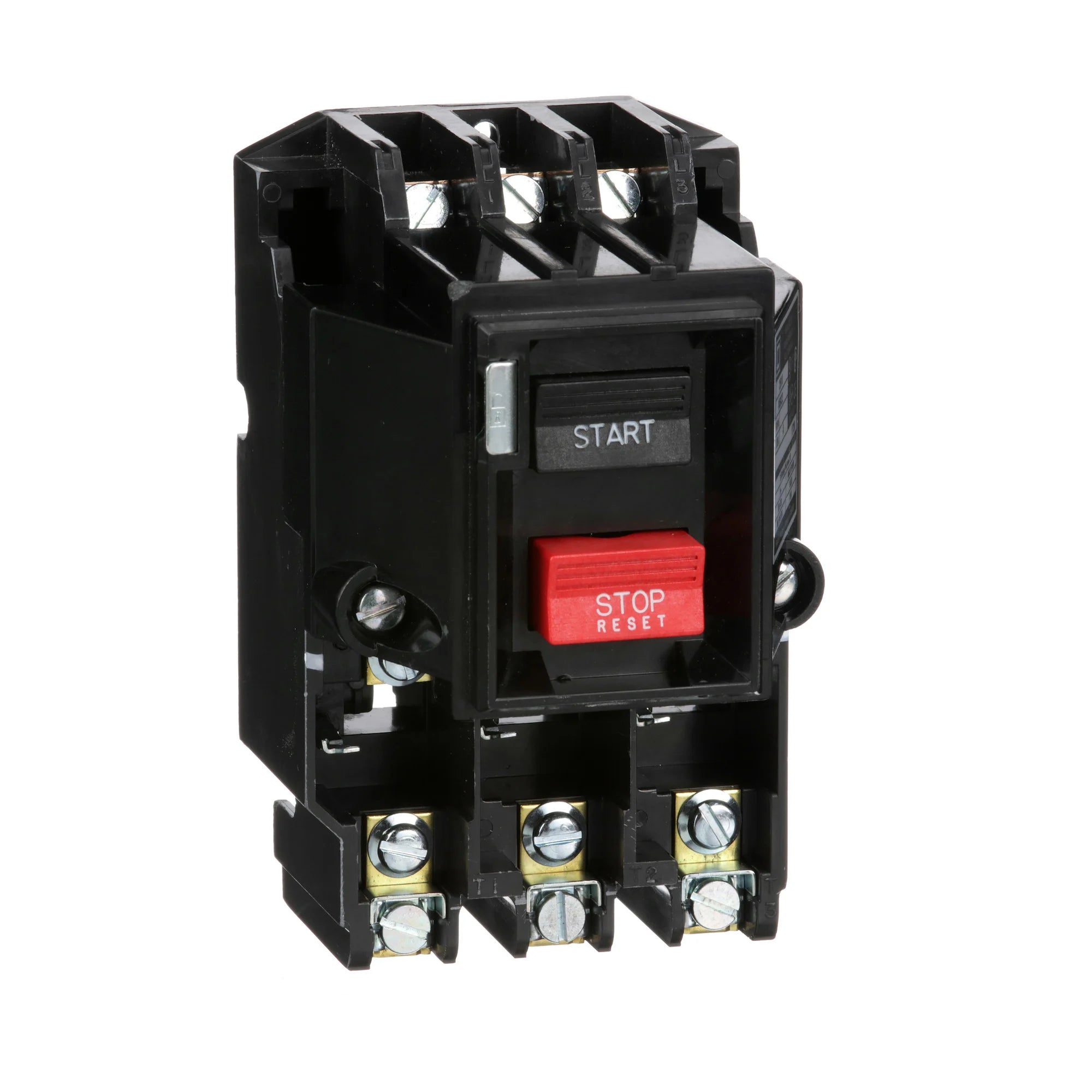

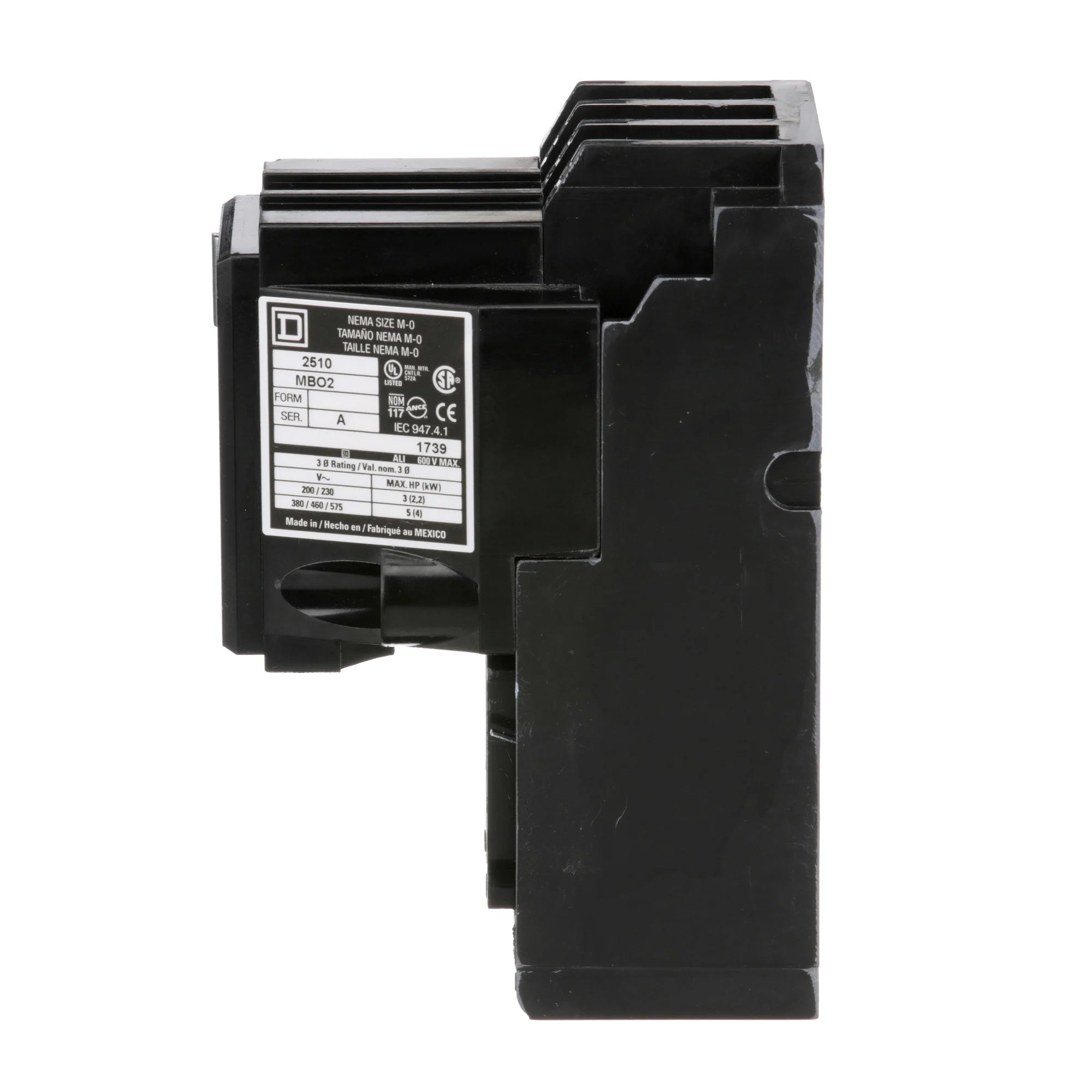

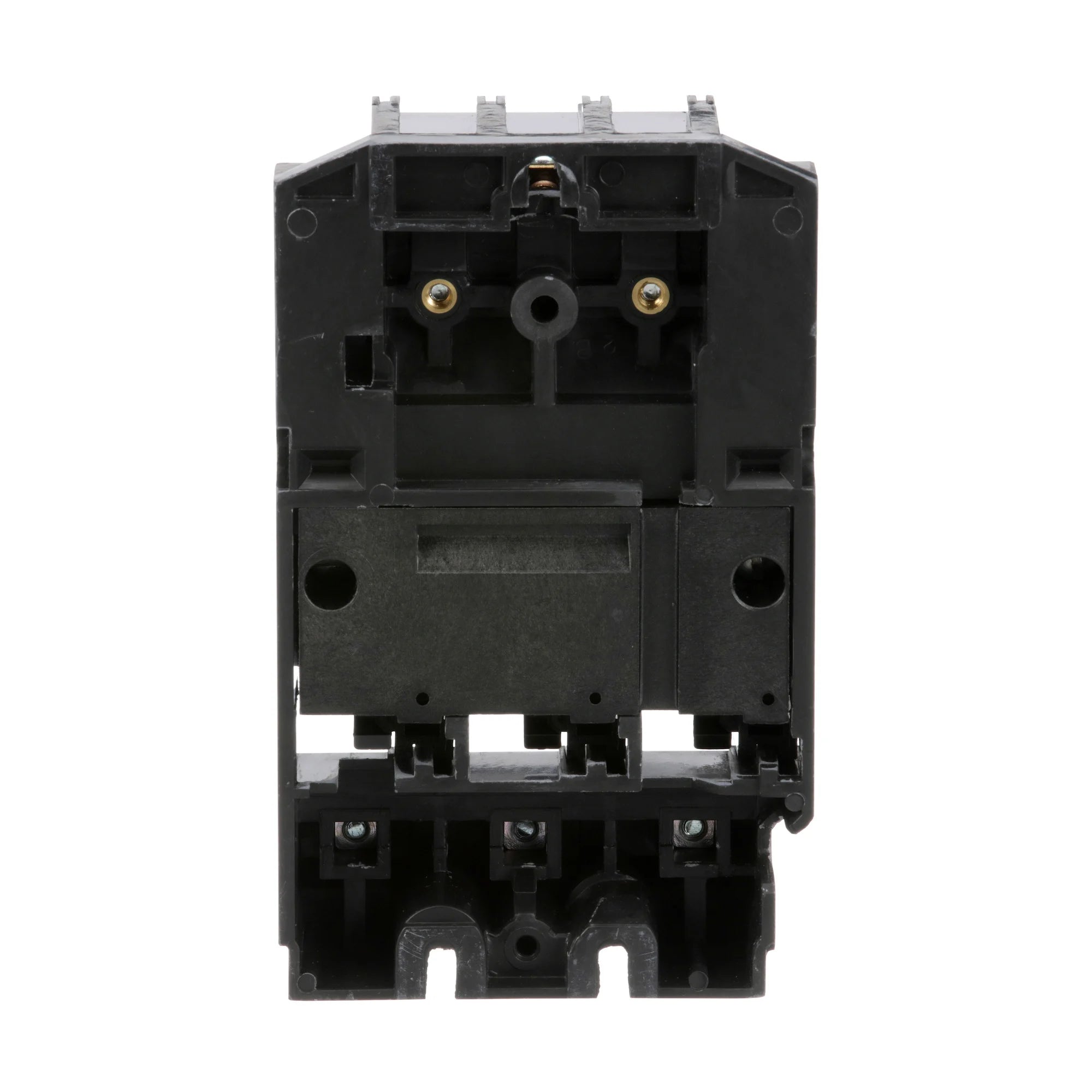

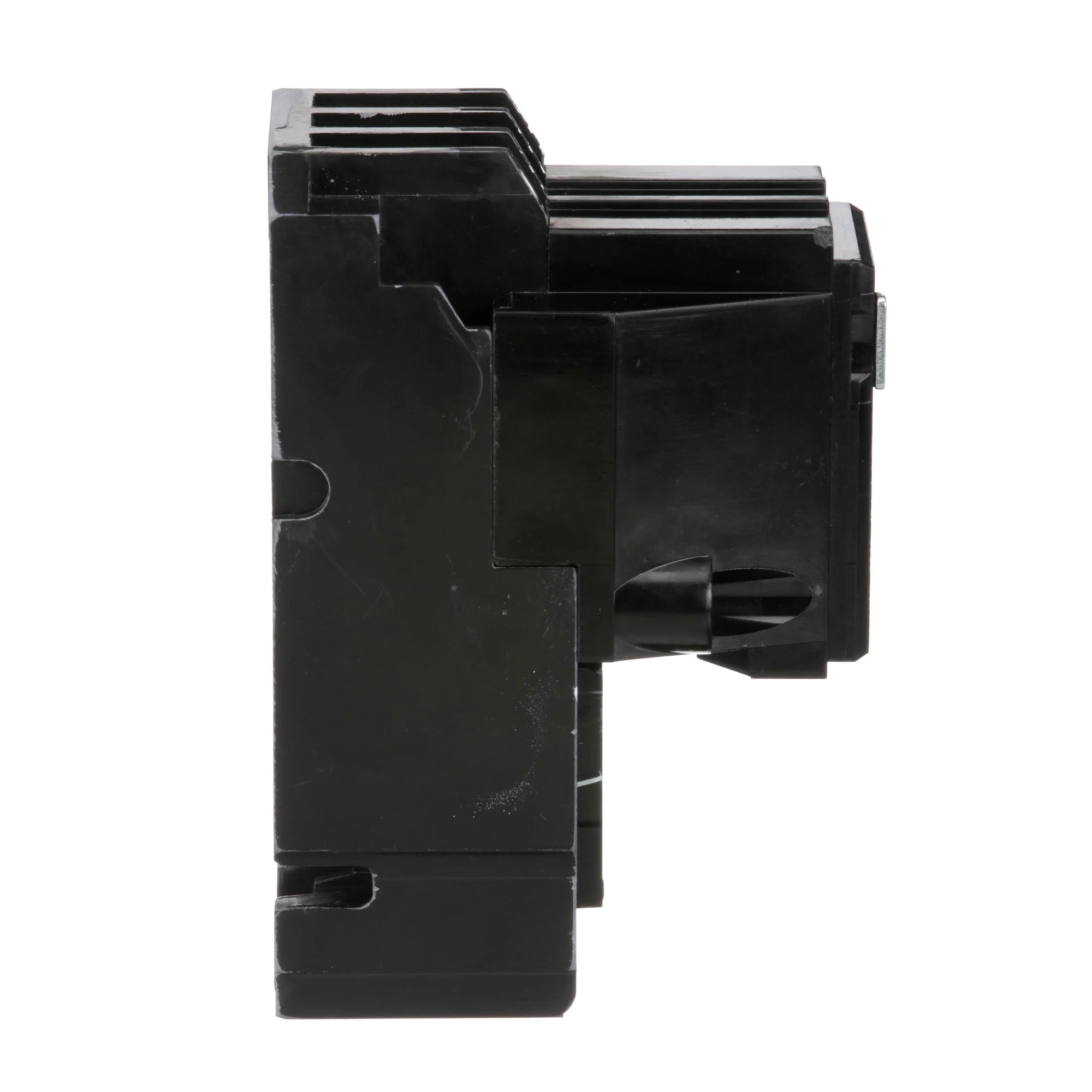

Square D 2510MBO2 manual starter provides overload protection and control for small AC motors. This device allows for locking in the off position to prevent unintentional use. It is designed for multiple applications and can accommodate a variety of enclosures. This starter does not have a pilot light indicator and is suitable for global applications due to its UL Listing and CSA Certification.

• Overload protection for small AC motors
• Locks in the off position to prevent accidental operation
• Accepts AWG 14 to 8 copper wire

Product Highlights

Reliable for industrial settings, this manual starter operates at 600VAC and can handle up to 5HP at specified voltage levels, making it an optimal choice for various motor control needs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510MBO2
• Voltage Rating: 600V AC
• Number of Poles: 3
• Motor Starter Type: Non-reversing
• Height: 5.72 inches
• Width: 3.50 inches
• Depth: 4.03 inches
• Connection Type: Pressure wire clamp
