Product Description

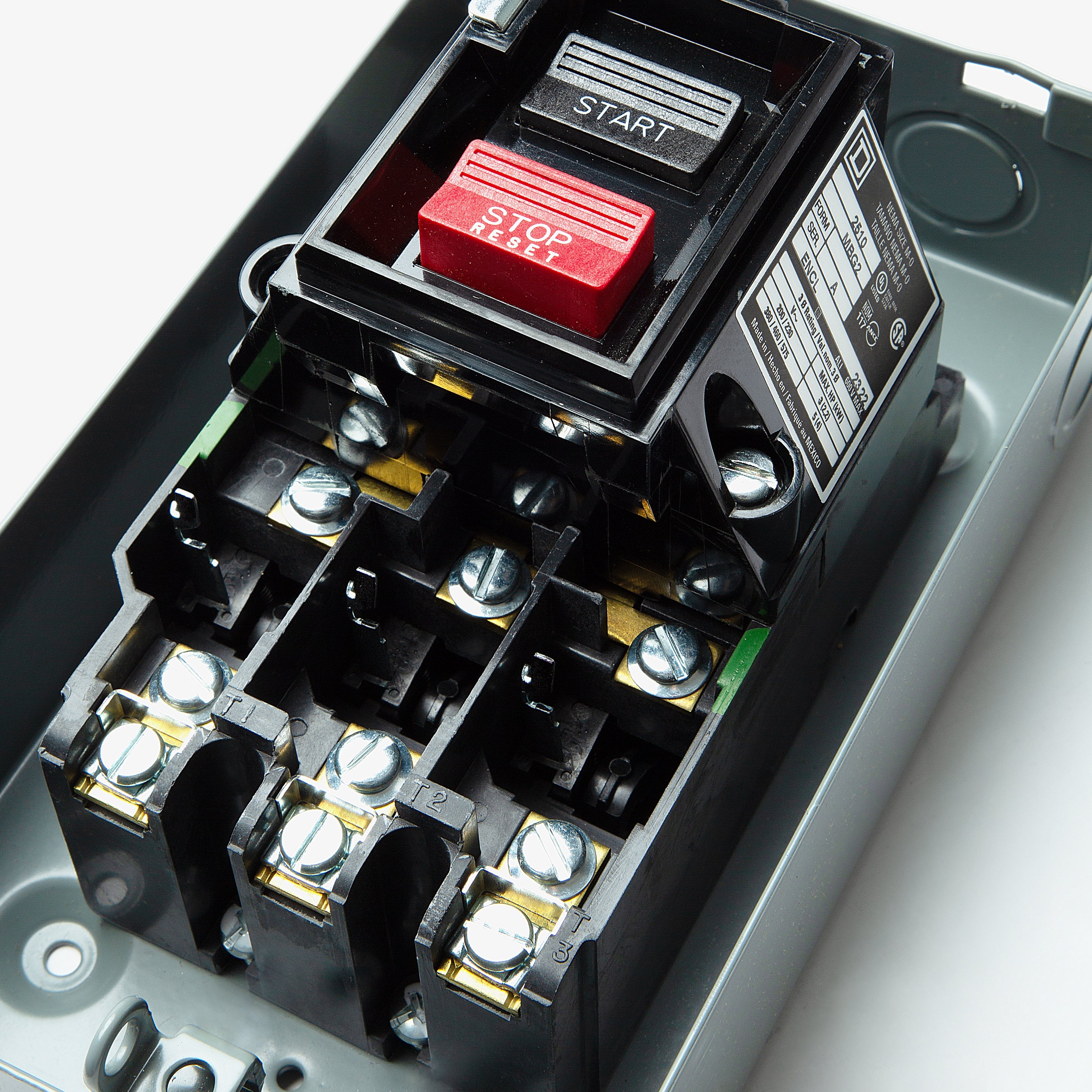

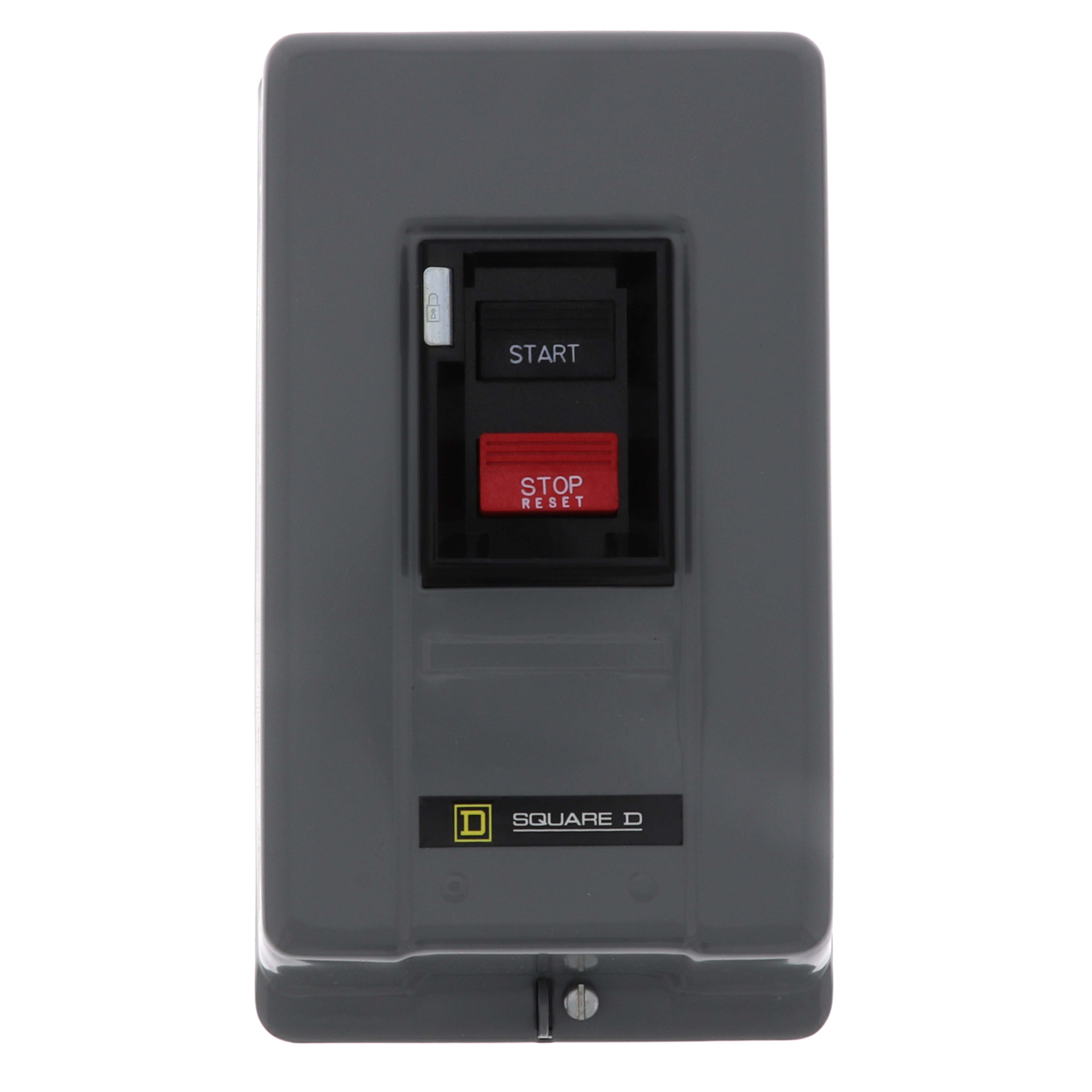

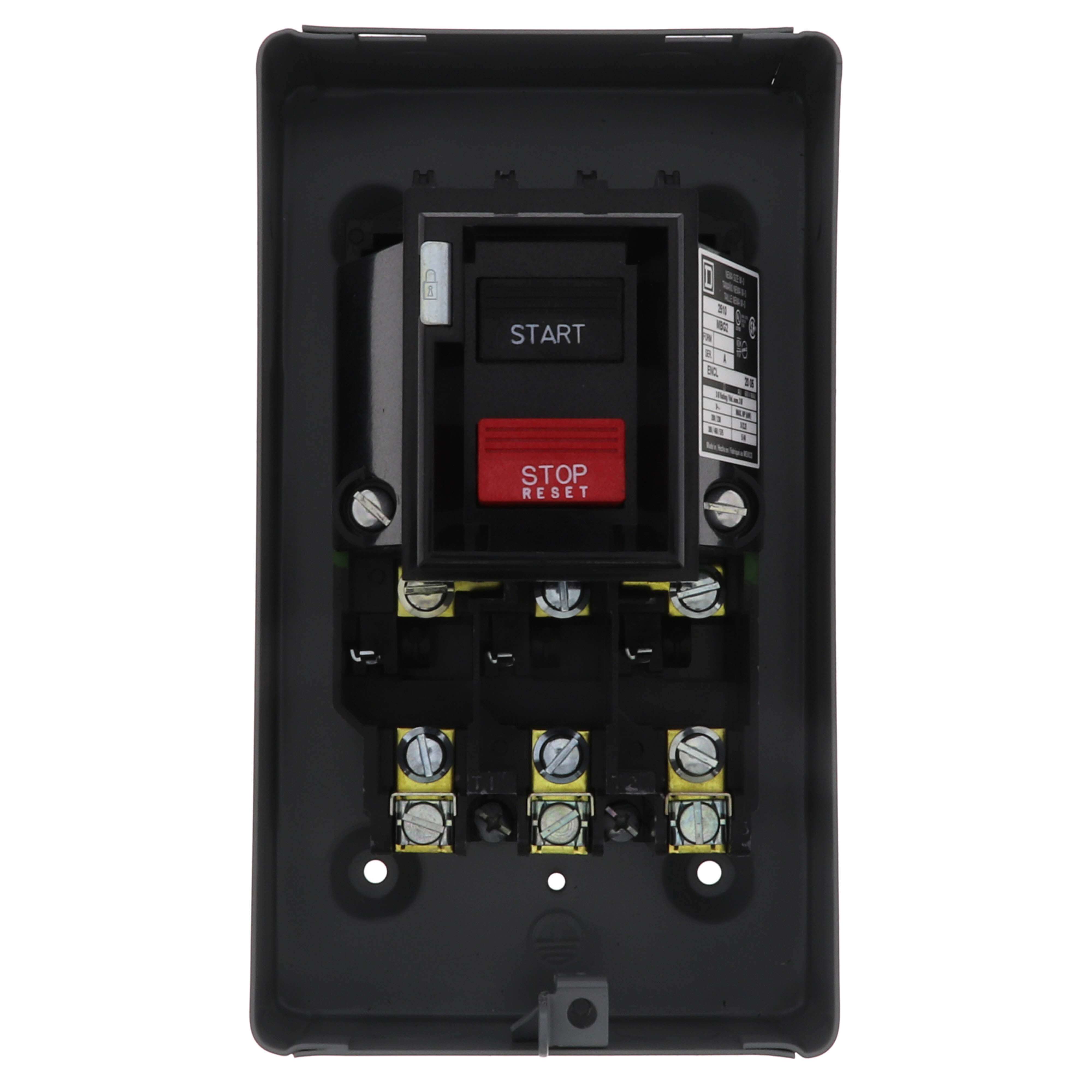

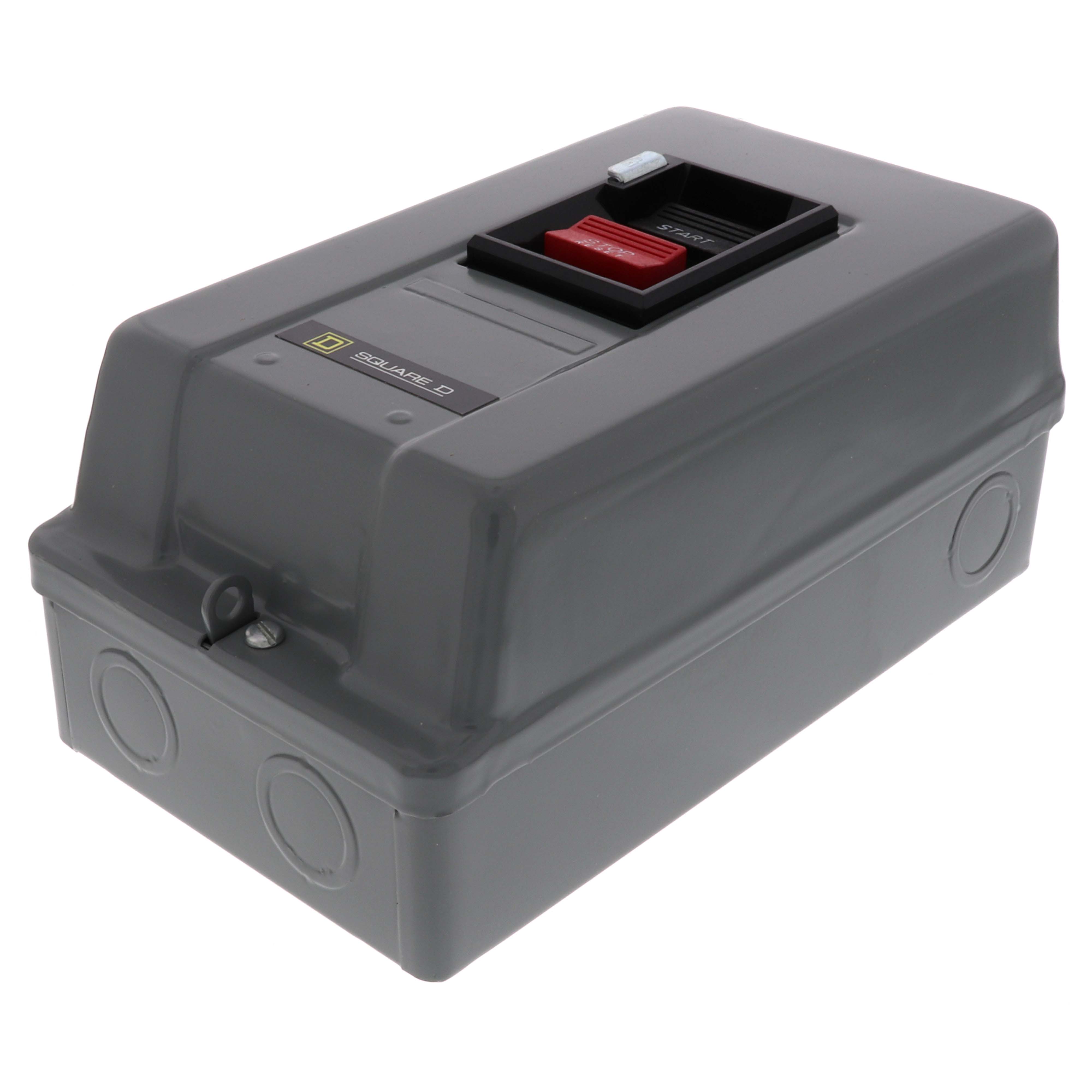

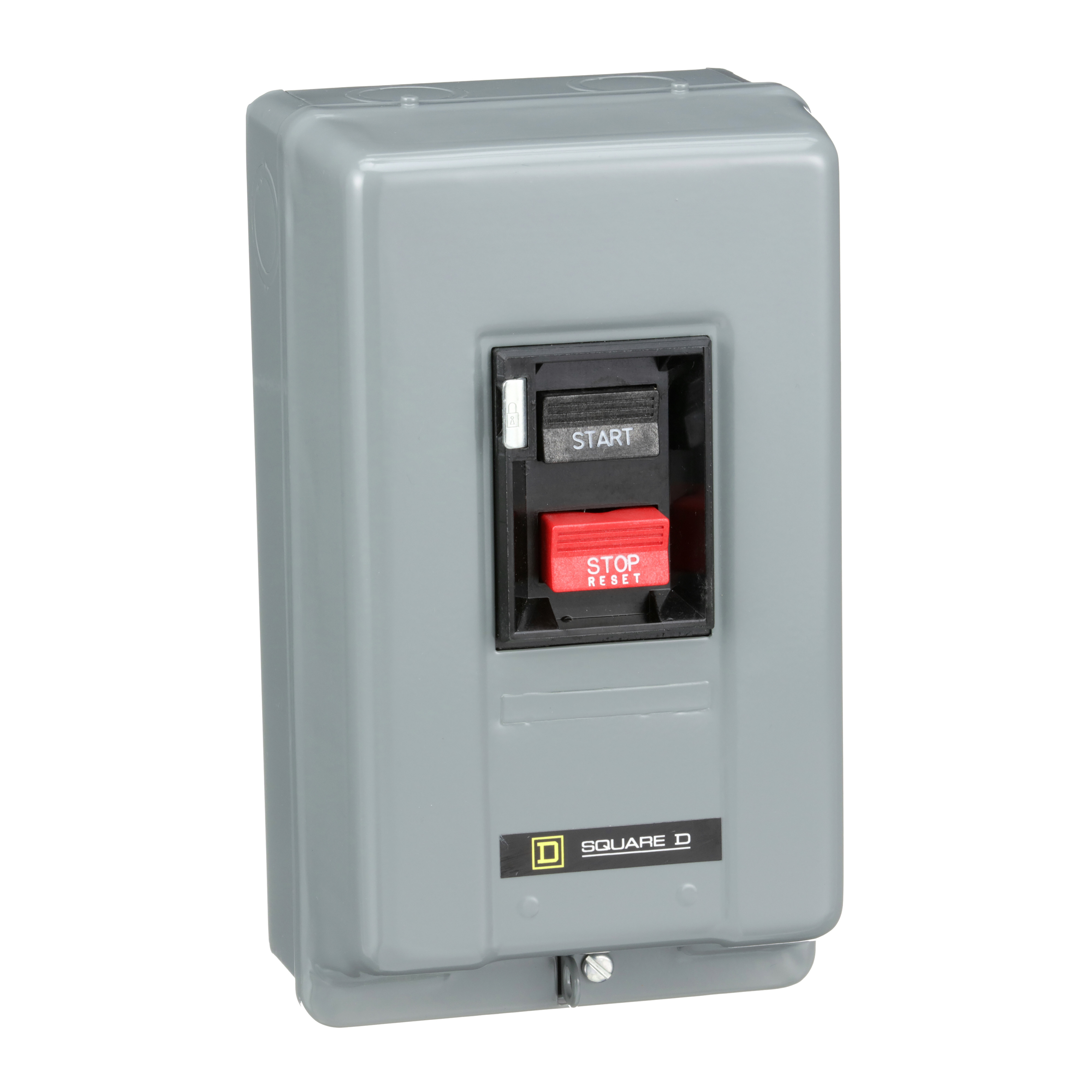

The Square D 2510MBG2 is a manual starter rated at 600VAC, with 3 poles and an 18A amperage. This integral horsepower manual motor starter provides overload protection and on/off control for small AC motors. It can be locked in the Off or Stop position to prevent inadvertent operation.
- Provides overload protection
- Offers On Off control for small AC motors
- Can be locked in the Off or Stop position
- UL Listed and CSA Certified
Product Highlights
The Square D 2510MBG2 manual starter is ideal for small machine tools, pumps, fans, and conveyors.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 2510MBG2
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Square D
-
MPN: 2510MBG2
-
Voltage: 600 VAC
-
Poles: 3
-
Amperage: 18A
-
Type: Manual Starter
-
Depth: 4.13 Inch
-
Width: 5 in
-
Height: 8.63 Inch
-
Enclosure: 1
-
NEMA Size: M-0
-
Sub Brand: M
-
Reset Type: THERMAL - MELTING ALLOY
-
TC Connection: Pressure wire clamp
-
Certifications: CSA LR60905 Class 3211 05,UL Listed File E42243 CCN NLRV
-
Number of Poles: 3 Pole
-
Contact Configuration: Without
-
Environmental Conditions: GENERAL PURPOSE (INDOOR)
-
Horsepower: 5 Hp
-
Mounting: Surface Mount
-
Non Reversing: true
-
3 Phase Rating: 3 Hp At 200 To 230 V, 5 Hp At 380 To 575 V
-
Pushbutton Operator: true
-
Overloads: Melting Alloy
-
Series: 2510M
-
Terminal Connection: Pressure Wire Clamp
-
Wire Gauge: AWG 14 to AWG 8, Copper
-
Enclosure Material: Painted Sheet Steel
-
Action: Non-Reversing
-
Operator: Push Button
-
Thermal Overload Type: Melting alloy
-
Rated Operational Voltage: 600 V AC
-
Maximum Horse Power Rating: 3-3 hp 200...230 V AC, 3 phase || 5-5 hp 380...575 V AC, 3 phase
-
Auxiliary Contact Composition: Without
-
Number Of Thermal Units Requir: 3
