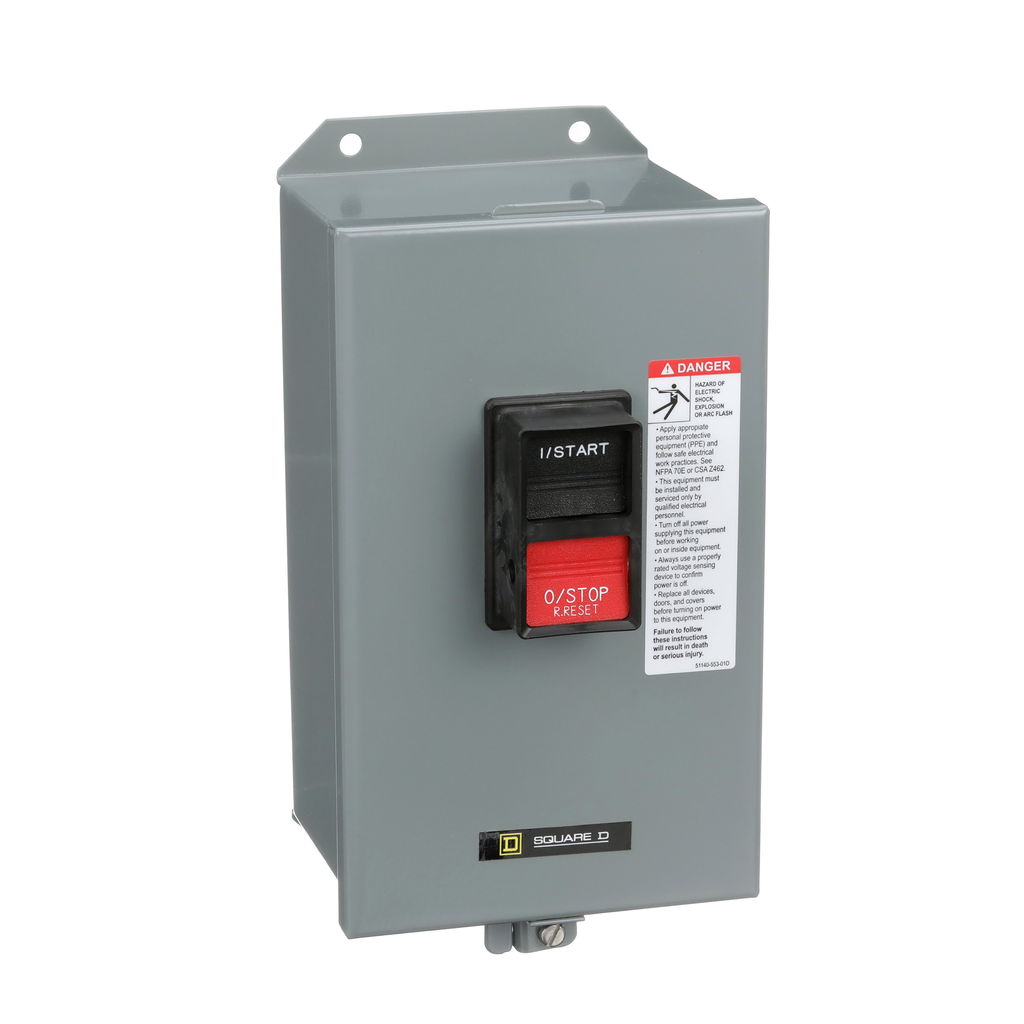

Square D 2510MBA1 Manual Motor Starter 230 VAC 18 Amp 2 Pole NEMA 12

Product Description

Square D 2510MBA1 is a manual motor starter designed for controlling small AC motors with up to two horsepower at 230 VAC. It provides overload protection and allows for On-Off operation. This device is suitable for both single-phase and poly-phase motors. It can be locked in the Off position to prevent accidental operation. Pilot lights and auxiliary contacts are flexible options that can be added in the field. Overload heater elements are sold separately to match specific motor requirements. This manual motor starter is UL Recognized, CSA Certified, and CE Marked, making it compliant for global applications.

• Compatible with motors up to 10 HP
• Available in enclosed or open versions
• Designed for industrial and commercial use

Product Highlights

Square D 2510MBA1 is built to deliver reliable performance and safety for small motors. It meets various international standards and is ideal for diverse environments.

Product Information

Standard Information

• Brand: Square D
• Model Number: 2510MBA1

Technical Specifications

• Voltage: 600 Volt
• Amperage: 18A
• Depth: 5.76 Inch
• Width: 5.78 Inch
• Height: 10.92 Inch
• Enclosure Type: NEMA 12
• Number of Poles: 2 Pole
• Country of Origin: Mexico
