Product Description

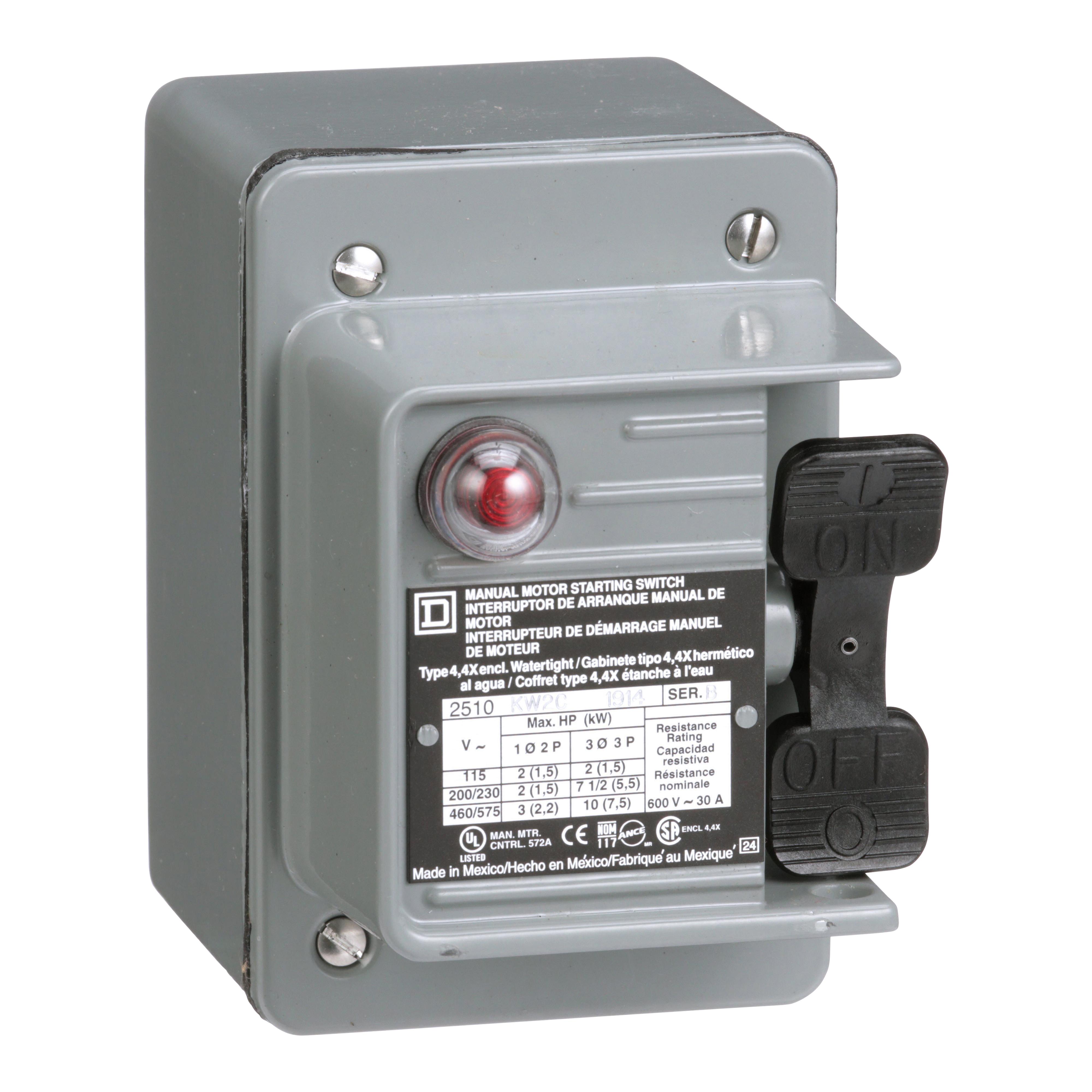

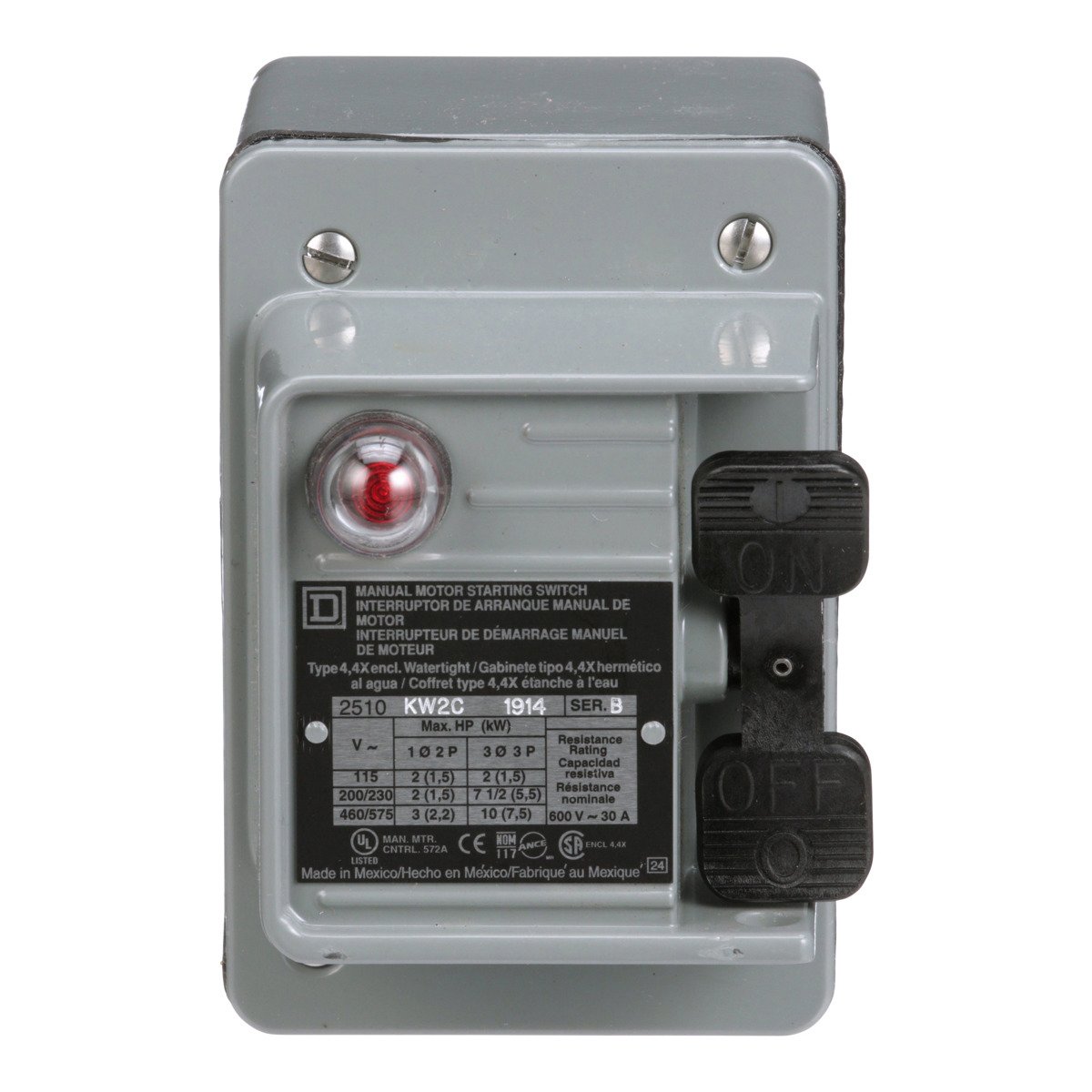

The Square D 2510KW2C manual motor switch is intended for industrial, commercial, and residential applications, providing manual On/Off control of small motors. This three-pole switch has a maximum operational voltage of 600 VAC and 250 VDC and is rated for 30A continuous. It features screw clamp terminals and a NEMA 4 watertight and dusttight die-cast zinc alloy enclosure.
- Intended for industrial, commercial and residential applications
- Manual On Off control of small motors
- Toggle operated
Product Highlights

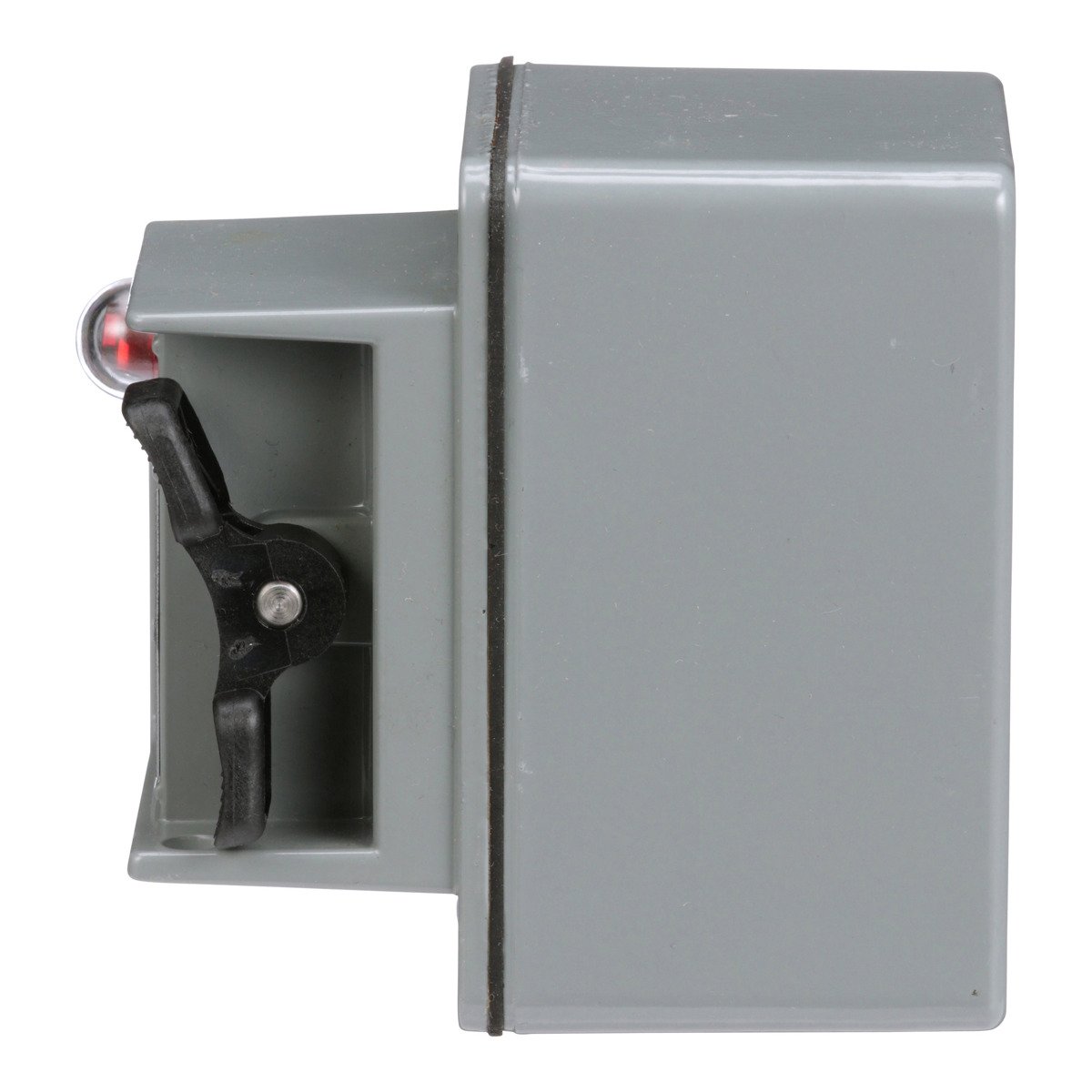

Provides manual On/Off control for single or three-phase AC motors where overload protection is not required. Features a toggle handle that can be padlocked in the off position.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 2510KW2C
-
Country of Origin: Mexico
Technical Specifications
-
GTiN: 00785901436584
-
Type: Single Unit Manual Switch
-
Brand: Square D
-
Current: 30 Amp
-
Voltage: 230 Volt
-
Amperage: 30 Amp
-
Enclosure: 4
-
Sub Brand: K
-
Cable Entry: 0.75 NPT (bottom)
-
Product UPC: 78590143658
-
12-Digit UPC: 785901436584
-
Applications: PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY
-
TC Connection: Screw clamp terminals
-
Certifications: CSA LR25490 Class 3211 05,UL Listed File E42243 CCN NLRV
-
Number of Poles: 3 Pole
-
Number of Phases: 3 Phase
-
Line Rated Current: 30 A
-
Environmental Conditions: SINGLE UNIT METAL BOX - OIL TIGHT AND DUST TIGHT
-
Manufacturer: Schneider Electric
-
UPC: 785901436584
-
Operator: Toggle
-
HP @ 115VDC: 2 hp
-
HP @ 230VDC: 1 1/2 hp
-
Pilot Light: Yes
-
Control Type: toggle
-
Max. Voltage: 600 V AC
-
Starter Type: NEMA Style
-
Local Signalling: red indicator, 440 to 600 V
-
Poles Description: 3P
-
Motor Starter Type: non reversing
-
HP @ 1 Phase - 120V: 2 hp
-
HP @ 1 Phase - 230V: 7 1/2 hp
-
HP @ 3 Phase - 240V: 7 1/2 hp
-
HP @ 3 Phase - 480V: 10 hp
-
HP @ 3 Phase - 575V: 10 hp
-
Electrical Connection: screw clamp terminals
-
Enclosure NEMA Rating: 4
-
Phase Loss Sensitivity: No
-
Product Certifications: UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
-
HP @ 3 Phase - 460-575V: 10 hp
-
Nema Degree Of Protection: NEMA 4 die cast zinc alloy standard size
-
Product Or Component Type: Single Unit Manual Switch
-
Maximum Horse Power Rating: 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
-
Number of Required Thermals: 3
-
Description/Special Features: Pilot Light
-
[Ue] Rated Operational Voltage: 600 V AC || 230 V DC
-
Action: Non-Reversing
-
Alternate Catalog Number: 2510KW2C
-
Amperage Rating: 30 A
-
ARRA Compliant: N
-
Buy American Compliant: N
-
Catalog Number: 2510KW2C
-
Connection: Screw clamp terminals
-
ConnectionType: Screw Clamp
-
Enclosure Type: NEMA 4
-
EU RoHS Indicator: Y
-
Material: Die Cast Zinc Alloy
-
Motor Power: 10 hp, 7-1/2 hp
-
Number Of Phases: 3
-
Reset Type: Manual
-
Series: 2510K
-
Standard: UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05
-
Type K: Type K
-
UNSPSC: 39121521
-
UPC 11: 78590143658
-
UPC 12: 785901436584
-
Voltage Rating: 600 VAC/230 VDC
-
HP Rating: 10 hp
-
Awg Gauge: AWG 14 to AWG 10 copper
-
Phase: 3 pH
