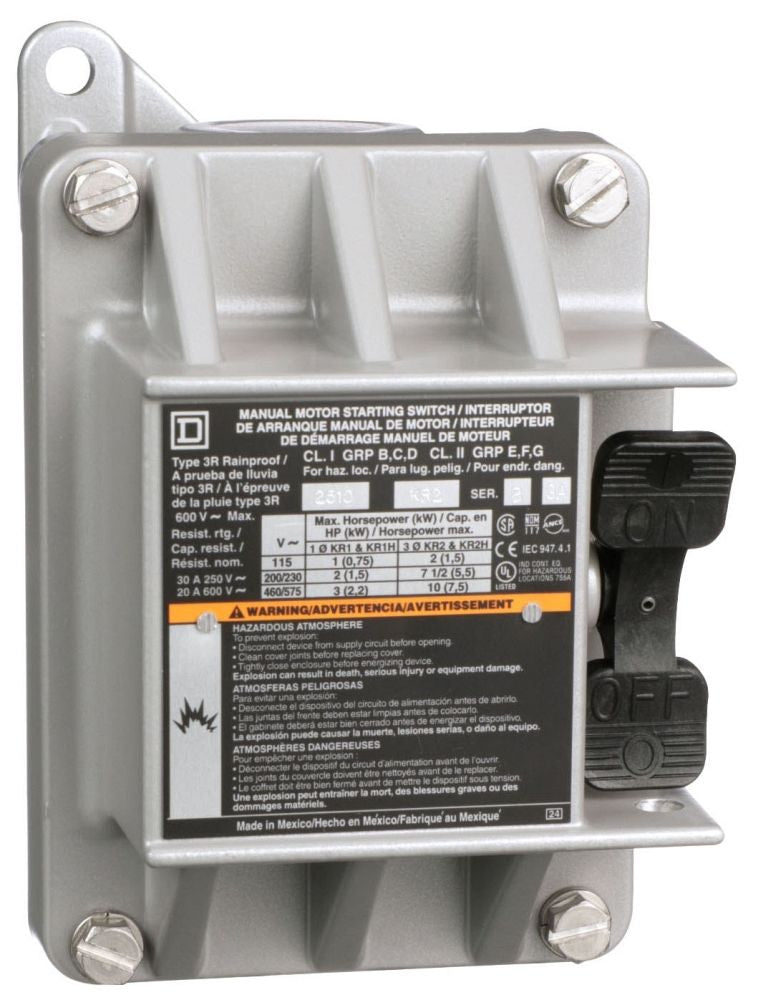

Square D 2510KR2 Manual Switch 600Vac K+Options

Product Description

Square D 2510KR2 is a manual switch designed for use at six hundred volts alternating current. This switch is suitable for various applications such as machine tools, pumps, fans, and conveyors.

• Non-reversing motor protector type.
• 30 amp current rating.
• NEMA 3R, 7, and 9 enclosure types.

Product Highlights

This switch provides a reliable method to control motors in industrial and commercial settings.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590107772

Technical Specifications

• Catalog Number: 2510KR2
• Type: Non-reversing motor protector
• Poles: 3
• Current Rating: 30 amp
• Enclosure Type: NEMA 3R/7/9, surface
• Operator Type: Toggle
• Approval: UL, CSA
• Full Technical Description: Non-reversing, motor protector type; 2 HP at 115 Volt AC, 7-1/2 HP at 230 Volt AC, 10 HP at 460/575 Volt AC; Toggle operated; RoHS compliant; Overall dimension three point nine five inches width x four point three five inches depth x six point six three inches height.
