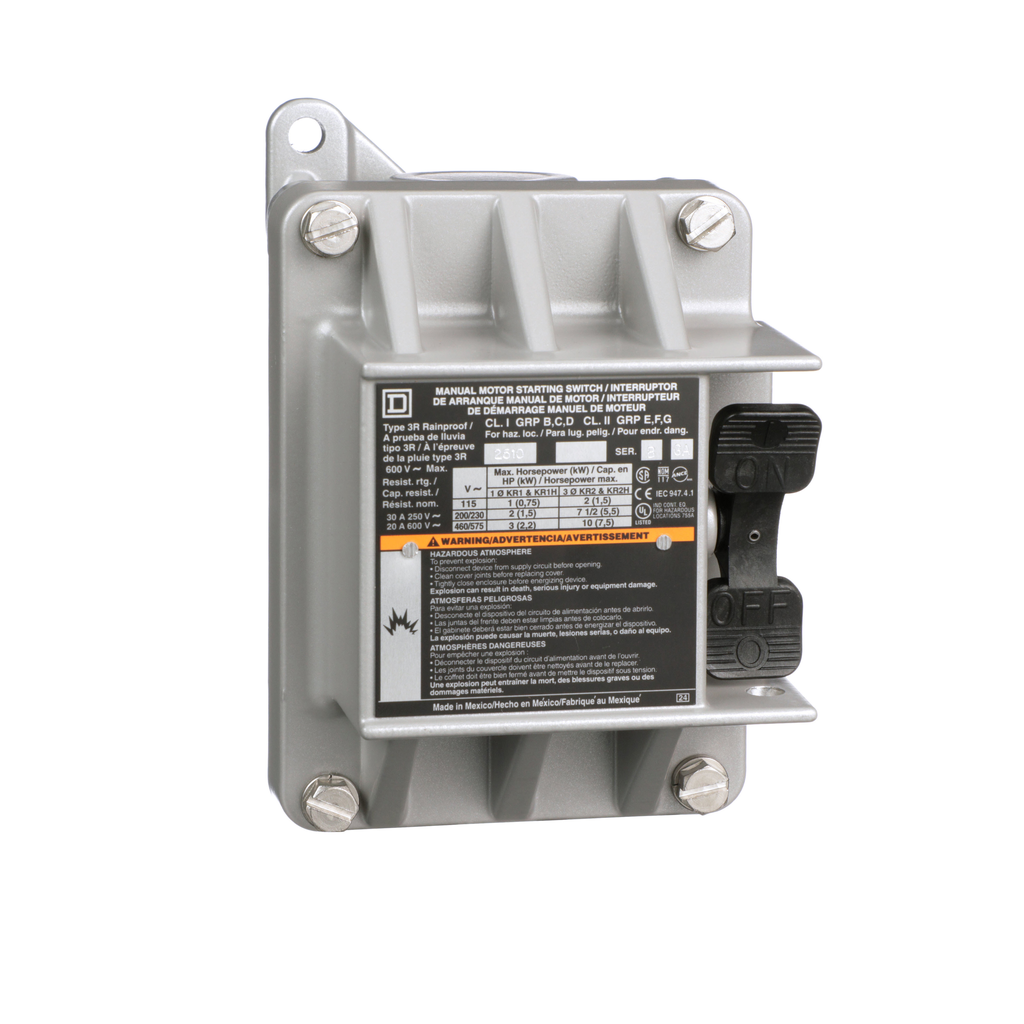

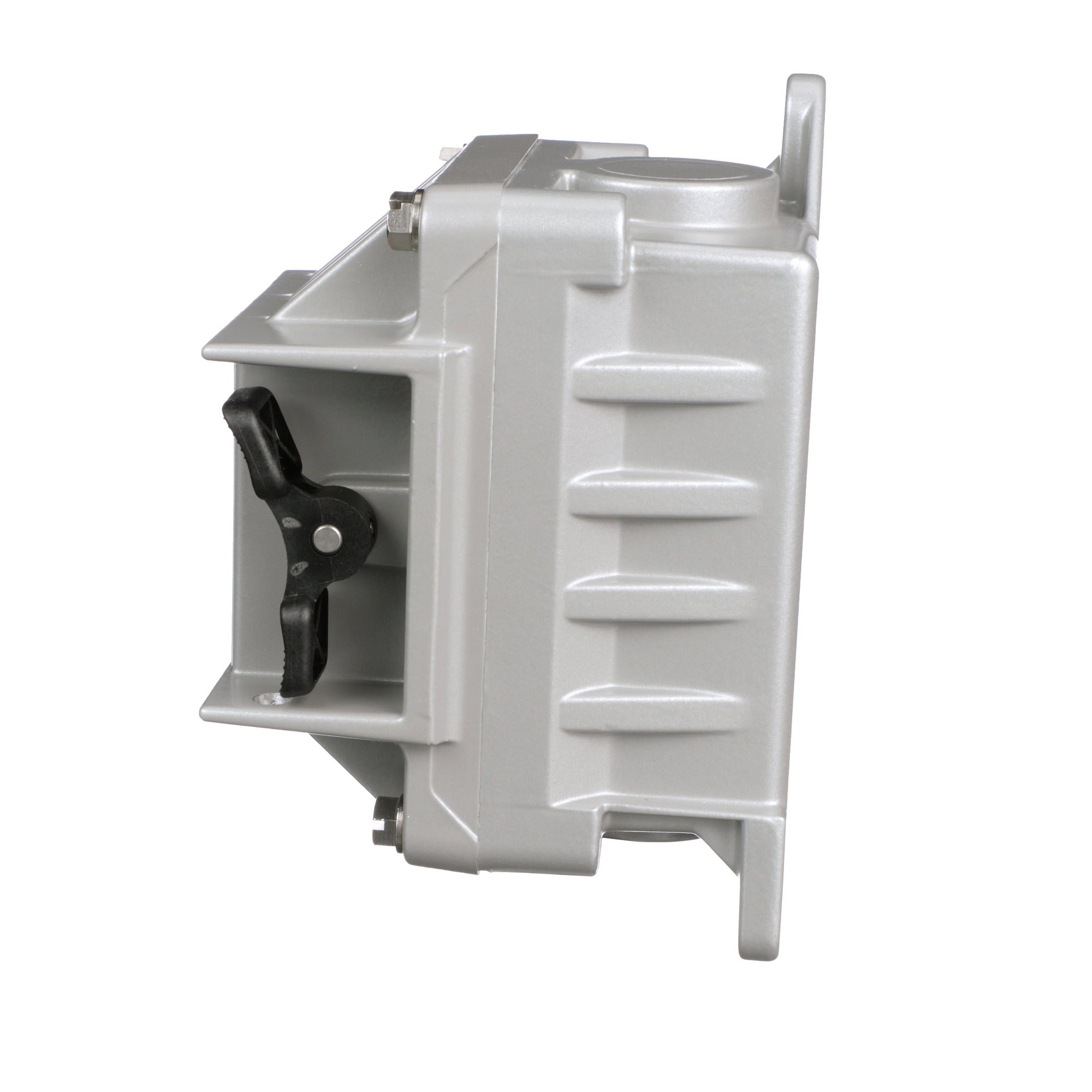

Square D 2510KR1 Manual Motor Switch 600 VAC 2 Pole NEMA 3R/7/9

Product Description

The Square D 2510KR1 is a manual motor switch designed for industrial, commercial, and residential applications. This switch allows manual on/off control of small motors where overload protection is not necessary. It supports single and three-phase AC motors. The non-reversing switch is toggle operated, suitable for various voltages.

• Rated for 600 VAC and 250 VDC operational voltage
• Capable of handling up to 3 HP for different voltage inputs
• Features screw clamp terminals accommodating AWG sizes from fourteen to ten

Product Highlights

This manual motor switch features a NEMA 7 and 9 enclosure for hazardous locations with a single conduit entry. It is UL listed and CSA certified, ensuring reliability in various environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510KR1
• Voltage: 600 Volt
• Current Rating: 20 Amp
• Number of Poles: 2 Pole
• Height: 6.36 inches
• Width: 3.95 inches
• Depth: 4.35 inches
• Country of Origin: Mexico
