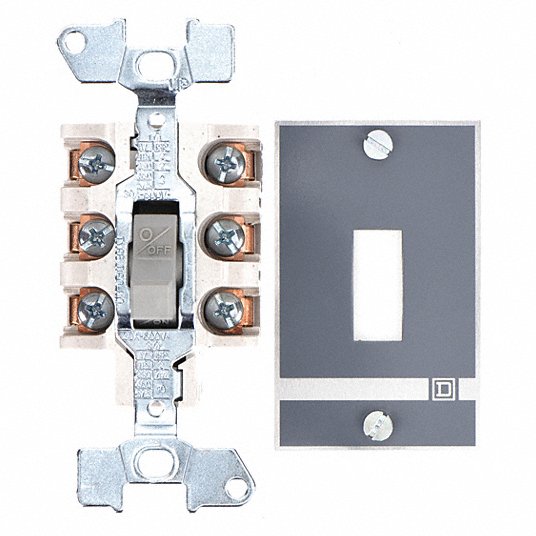

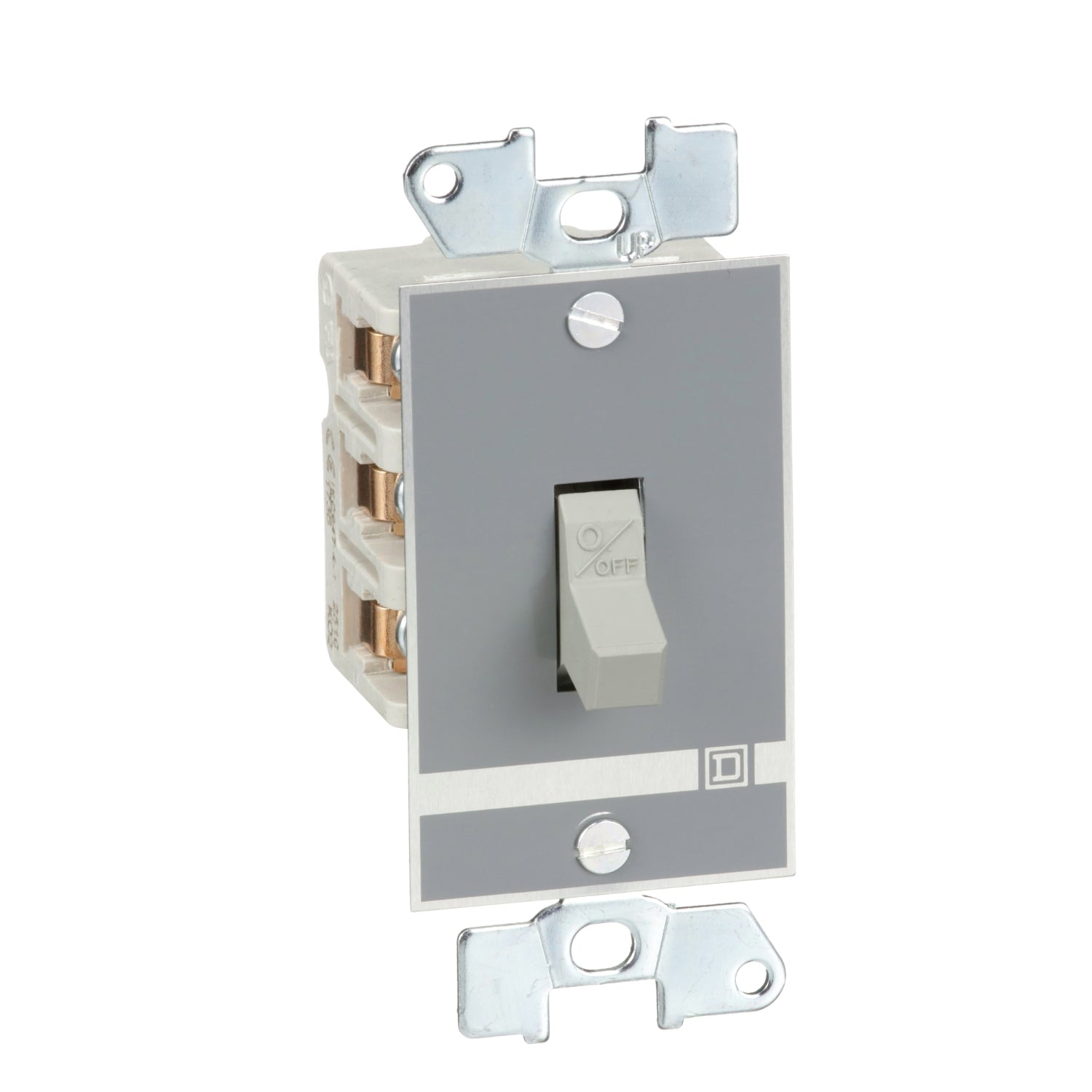

SQUARE D 2510KO2 Manual Motor Switch 30 A 3 Poles No Enclosure

Product Description

The SQUARE D 2510KO2 is a manual motor switch designed for controlling power to motors. This switch features a toggle mechanism that is easy to use for turning power on and off. It is suitable for various applications including industrial, commercial, and residential setups where separate overload protection is not necessary. Its open-style design provides easy access to the terminals for efficient wiring.

• Manual motor switches for reliable control
• Toggle switch operation for convenient usage
• Open design for easy terminal access

Product Highlights

This manual motor switch offers a straightforward method for motor control, making it suitable for a variety of settings. Its robust construction ensures longevity and the ability to handle significant electrical loads.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 2510KO2

Technical Specifications

• Series: Class 2510 Type K Series
• Number of Poles: 3
• Phase: Three
• Max Current (AC): 30 A
• Maximum Voltage Rating: 600V AC
• Horsepower @ Single Phase - 120V AC: 2 hp
• Horsepower @ Single Phase - 240V AC: 7-1/2 hp
• Horsepower @ Three Phase - 240V AC: 7-1/2 hp
• Horsepower @ Three Phase - 480V AC: 10 hp
• Horsepower @ Three Phase - 600V AC: 10 hp
• Horsepower @ 115V DC: 2 hp
• Horsepower @ 230V DC: 1-1/2 hp
• Operator: Toggle Switch
• Pilot Light: Not Included
• Phase Loss Sensitivity: No
• Wire Termination Type: Screw
• NEMA Enclosure Rating: No Enclosure
• Number of Gangs: 1
• Overall Height: 4.13 inches
• Overall Width: 1.69 inches
• Overall Depth: 2.34 inches
• Mounting Style: Surface
• Resistance Properties: Temperature Resistant
• Standards: CSA LR25490 Class 3211 05; UL Listed E42243 CCN NLRV2
• Type: Manual Switch
• Amp: 30 Amp
• Poles: 3 Pole
• Voltage: 600 Volt
• Enclosure Type: Open
