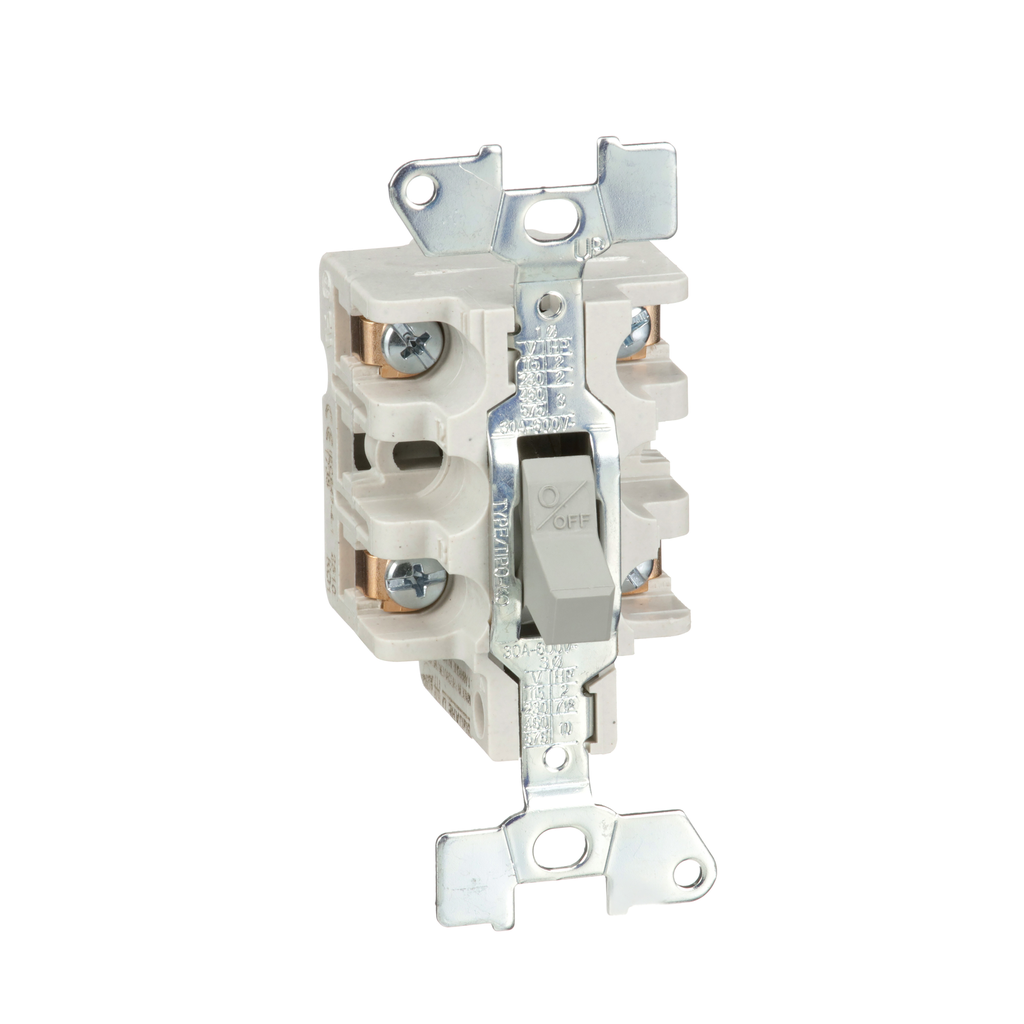

Square D 2510KO1 600 Vac 230 Vdc 30 Amp 3 Hp 2-Pole Open Type 1-Phase Manual Switch

Product Description

The Square D 2510KO1 is a manual switch designed for single or three phase motors. It operates at a maximum voltage of 600 Vac and 250 Vdc. This device is suitable for applications where overload protection is not required. The open type design allows for direct mounting in standard switch boxes. The manual switch has a variety of enclosures available, and a pilot light option is also offered.

• Rated for up to 30 Amps continuous current
• Compatible with 14 to 10 AWG copper wire
• Measurements: four point thirteen inches tall, one point sixty-nine inches wide, and two point thirty-four inches deep

Product Highlights

Square D 2510KO1 provides compact manual control for motors up to three horsepower, suitable for various industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 2510KO1
• Current Rating: 30 Amp
• Voltage Rating: 600 Vac, 230 Vdc
• Poles: 2
• Phases: 1
• Weight: 0.35 lb
• Height: 4.13 inches
• Width: 1.69 inches
• Depth: 2.34 inches
• Country of Origin: Mexico
