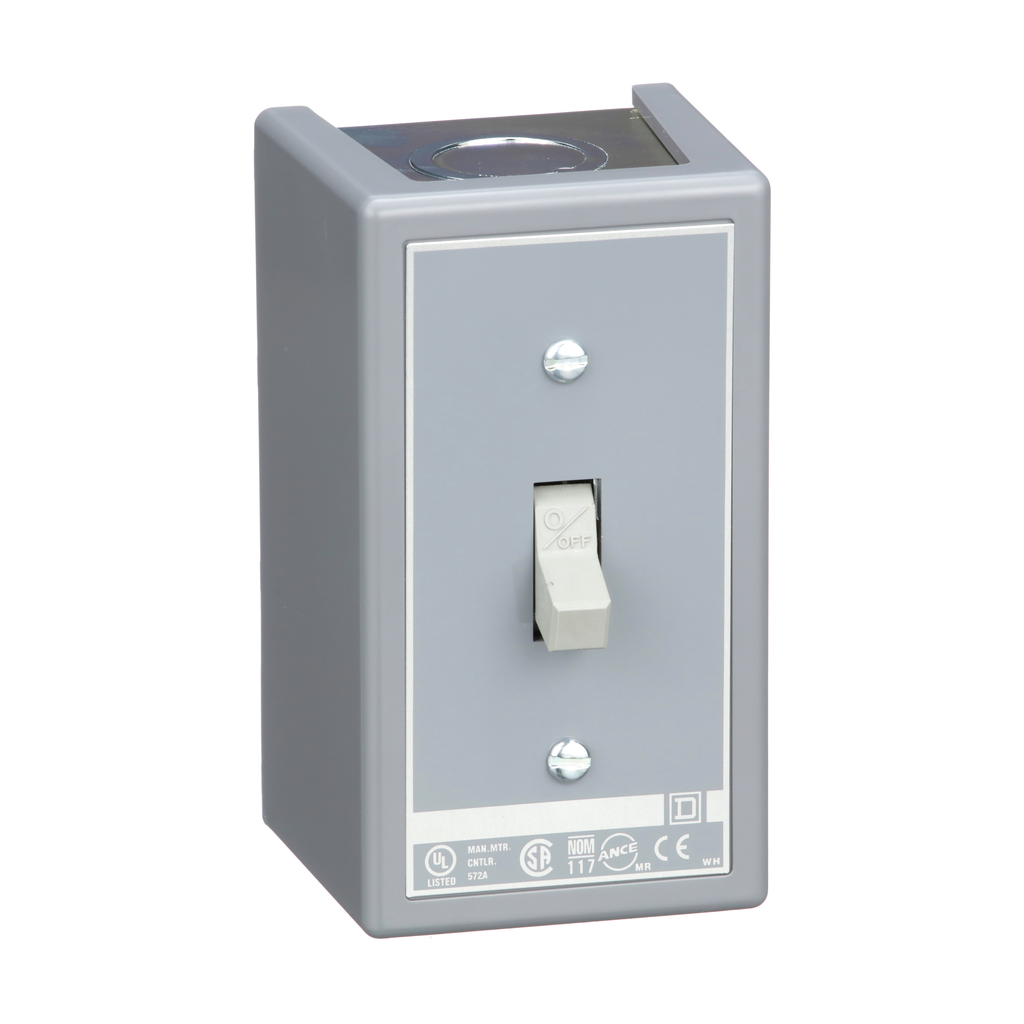

Square D 2510KG2 Manual Motor Switch 30 Amp 3 Pole NEMA 1

Product Description

Square D 2510KG2 is a manual motor switch by Schneider Electric designed to control single or three phase motors. This switch operates up to six hundred volts alternating current and provides a maximum of thirty amps. It is suitable for use with motors up to ten horsepower.

• Supports single and three phase applications
• Durable NEMA 1 enclosure for surface mounting
• UL Listed and CSA Certified, ensuring reliable performance

Product Highlights

This switch allows for manual on/off control, making it ideal for applications where overload protection is not necessary. It fits in standard single-gang switch boxes, is available with pilot light options, and comes in various enclosure types.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510KG2
• Voltage Rating: 600 VAC, 250 VDC
• Current Rating: 30 Amp
• Number of Poles: 3
• Horsepower Ratings: 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC
• Weight: 0.84 lb
• Dimensions: 4.25 inches tall, 2.44 inches wide, 2.75 inches deep
• Wire Gauge Acceptance: 14 to 10 AWG copper
