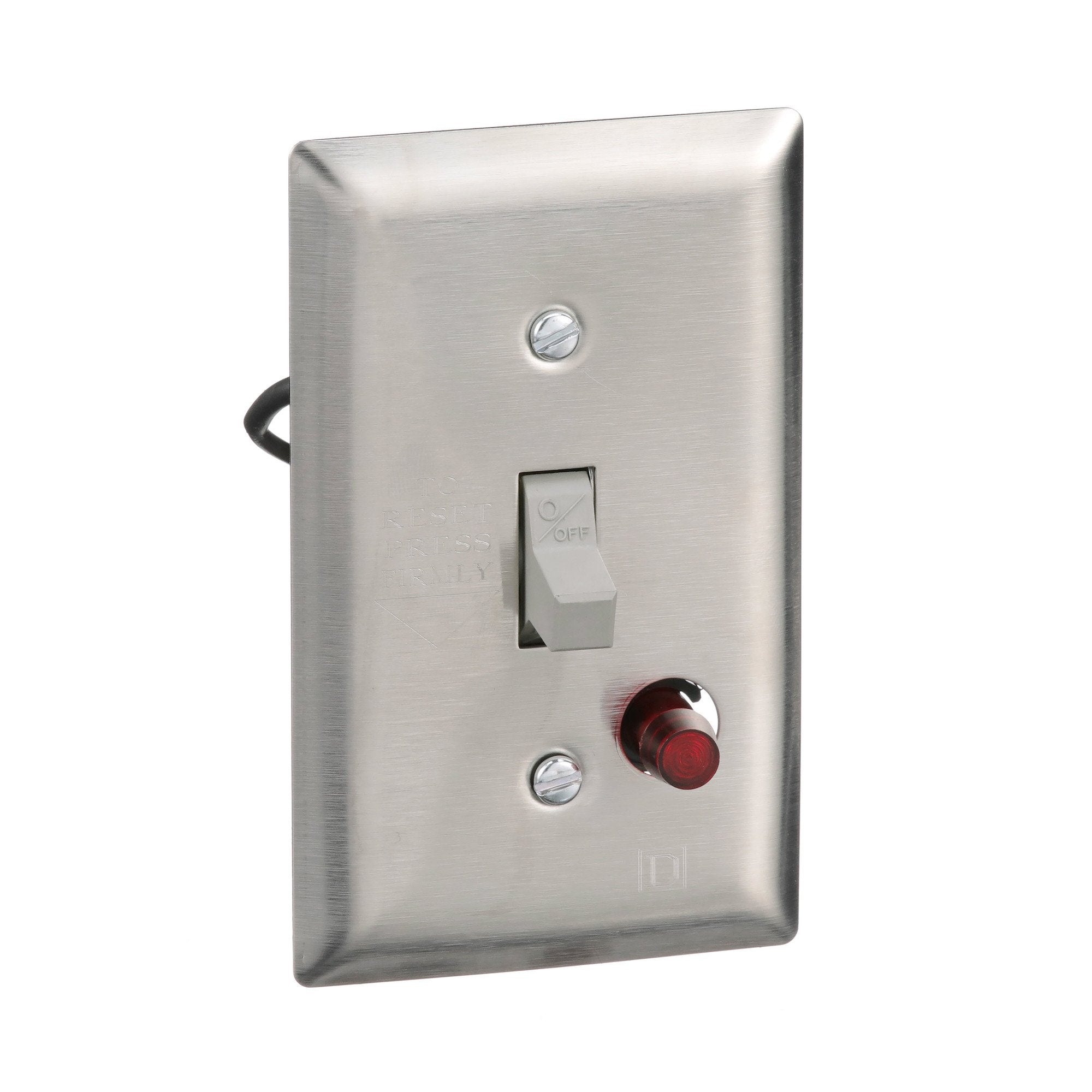

Square D 2510FS1P 1 Hp 277 VAC 16 Amp 1-Pole Manual Starter

Product Description

Square D 2510FS1P is a manual motor starter designed for single-phase AC motors. It operates at 277 volts and is rated for a maximum of 16 amps and one horsepower. The unit is suitable for flush mounting in standard switch boxes or machine cavities. It provides overload protection and manual on-off control for small motors, making it ideal for industrial and commercial use.

• Manual control for easy operation
• Overload protection via melting alloy
• UL Listed, CSA Certified, and CE Marked

Product Highlights

This starter is easy to install and is available in enclosed or open configurations. Suitable for various application environments, it can be used for fractional single-phase motors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510FS1P
• Voltage: 277 Volt
• Current: 16 Amp
• Poles: 1 Pole
• Phases: 1 Phase
• Depth: 2.19 inches
• Width: 2.75 inches
• Height: 4.5 inches
• Country of Origin: Mexico
• Warranty: 18 months
