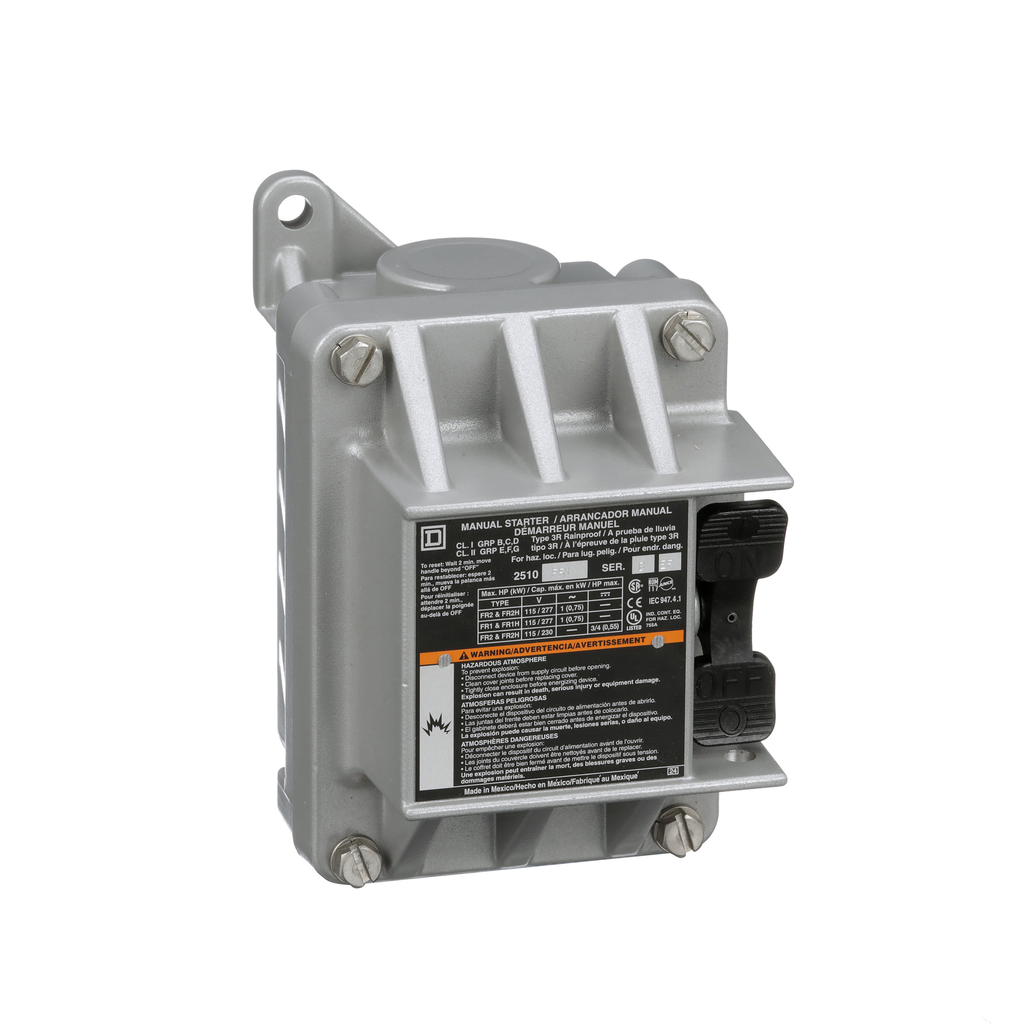

Square D 2510FR1 Manual Starter 16 Amp 1 Hp 1-Pole NEMA 3R/7/9

Product Description

Square D 2510FR1 is a manual starter designed for single-phase motors up to one horsepower. It provides manual on-off control and overload protection, suitable for small motors used in industrial and commercial applications.

• Current Rating: Sixteen amps
• Voltage: Two hundred seventy-seven volts
• One pole non-reversing operation

Product Highlights

This starter ensures reliable control of small motors like fans, pumps, and conveyors. It features a toggle handle that can be padlocked in the off position for safety. The enclosure is rated NEMA 3R, 7, and 9, making it ideal for hazardous locations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510FR1
• Voltage: 277 Volt
• Amperage: 16 Amp
• Enclosure Type: NEMA 3R/7/9
• Dimensions: 6.36 inches tall, 3.95 inches wide, 4.35 inches deep
• Country of Origin: United States
• Warranty Length: 18 months
• Overload Protection Type: Thermal - Melting Alloy
