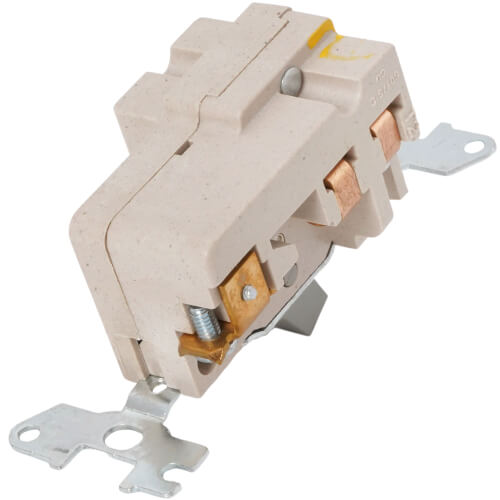

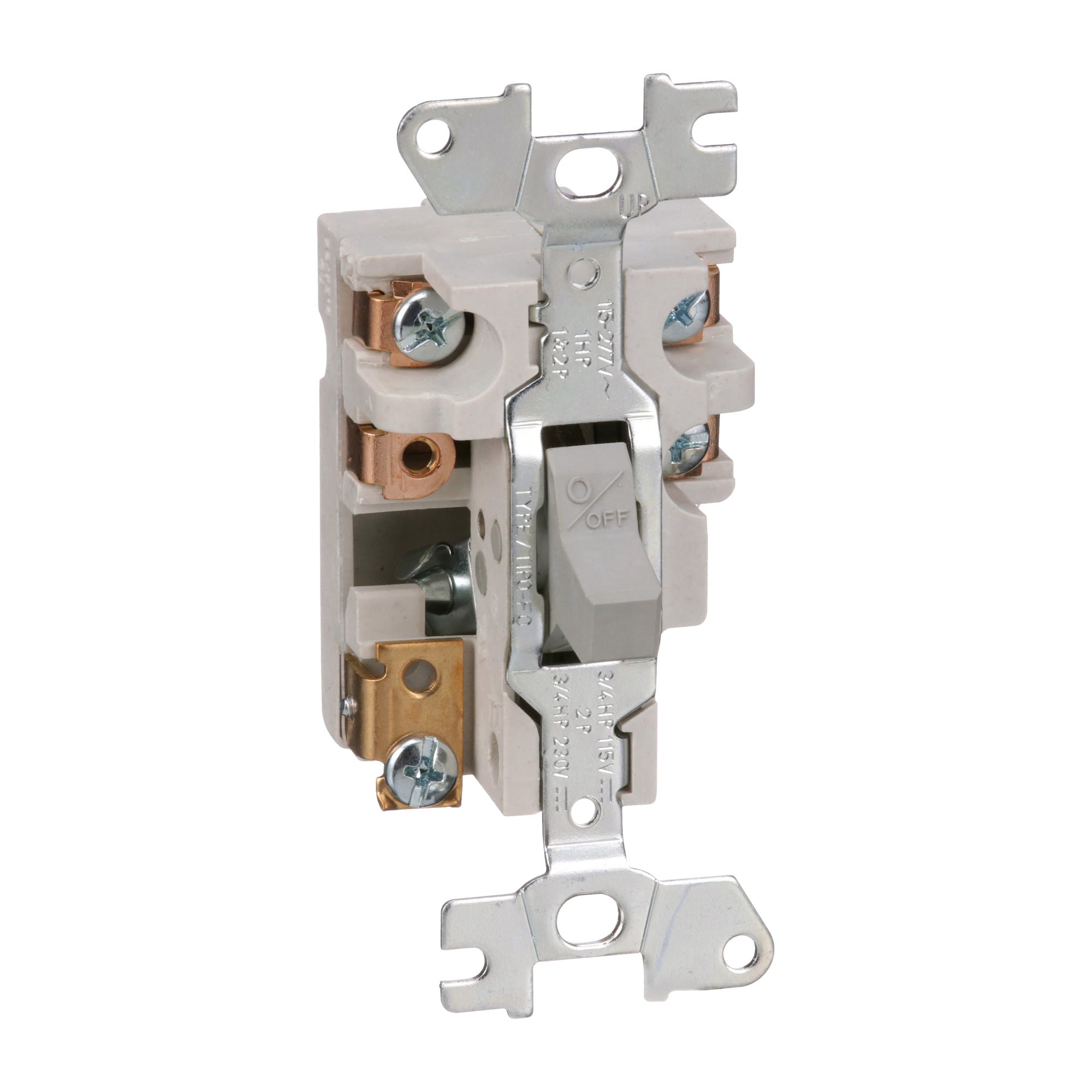

Square D 2510FO2 Manual Starter 16A 2 Poles 1 HP at 277 VAC

Product Description

Square D 2510FO2 is a manual starter that provides overload protection and manual On/Off control for small single-phase AC motors. This unit features an open style and fits in industry-standard single-gang switch boxes, allowing direct mounting in walls or machines with standard cover plates. Overload heater elements are sold separately based on motor specifications. A pilot light option is available, and various enclosures can be selected to fit applications. This device is UL recognized and CSA certified for wide-ranging applications.

• 2 pole non-reversing manual starter with 16A current rating.
• 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC, and 0.75 HP at 115 and 230 VDC ratings.
• Dimensions: four point thirteen inches tall, one point sixty-nine inches wide, and two point twenty-two inches deep.

Product Highlights

The 2510FO2 manual starter is designed for reliable operation in industrial environments. It is an effective solution for controlling small motors, ensuring safety and efficiency in your electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 2510FO2
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: Mexico
• UPC: 785901554158
• Weight: 0.33 lb
• Dimensions: 4.13 inches tall, 1.69 inches wide, 2.22 inches deep
• Enclosure Type: NEMA 1 surface mount
