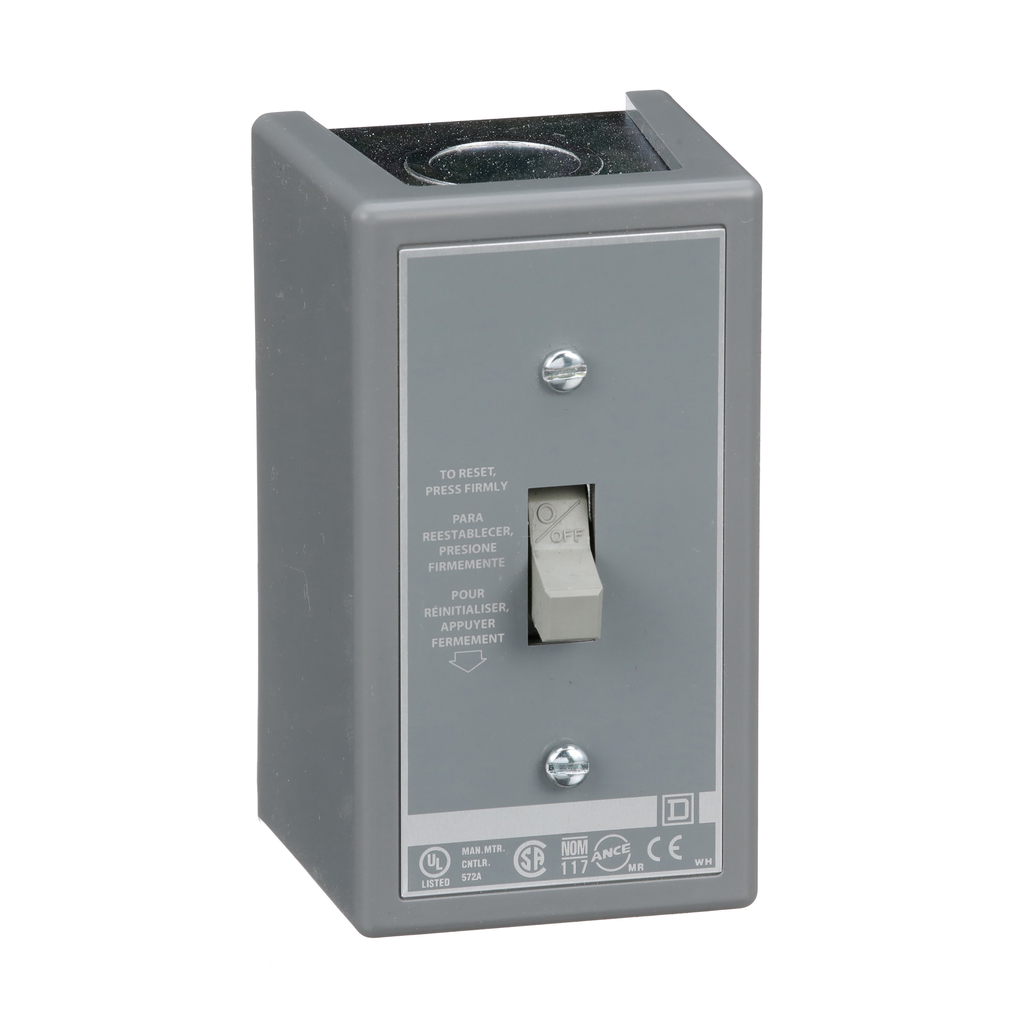

Square D 2510FG5 Manual Starter 16 Amp 1 HP 1 Pole NEMA 1

Product Description

The Square D 2510FG5 is a manual starter designed for single-phase AC motors. This model provides overload protection and manual On-Off control for motors rated up to one horsepower at 277 volts.

• Overload protection for small motors
• Convenient wiring with a thermoplastic cover
• UL Listed, CSA Certified, and CE Marked

Product Highlights

This manual starter is effective for industrial and commercial applications where direct motor control is needed. Its built-in overload protection ensures that connected motors are safeguarded against overheating and damage.

Product Information

Standard Information

• Brand: Square D
• MPN: 2510FG5

Technical Specifications

• Catalog Number: 2510FG5
• Current: 16 Amp
• Voltage: 277 Volt
• Number of Poles: 1 Pole
• Dimensions: Width 2.44 inches, Depth 2.88 inches, Height 4-1/4 inches
• Sub Brand: F
• Country of Origin: Mexico
• Reset Type: Thermal - Melting Alloy
