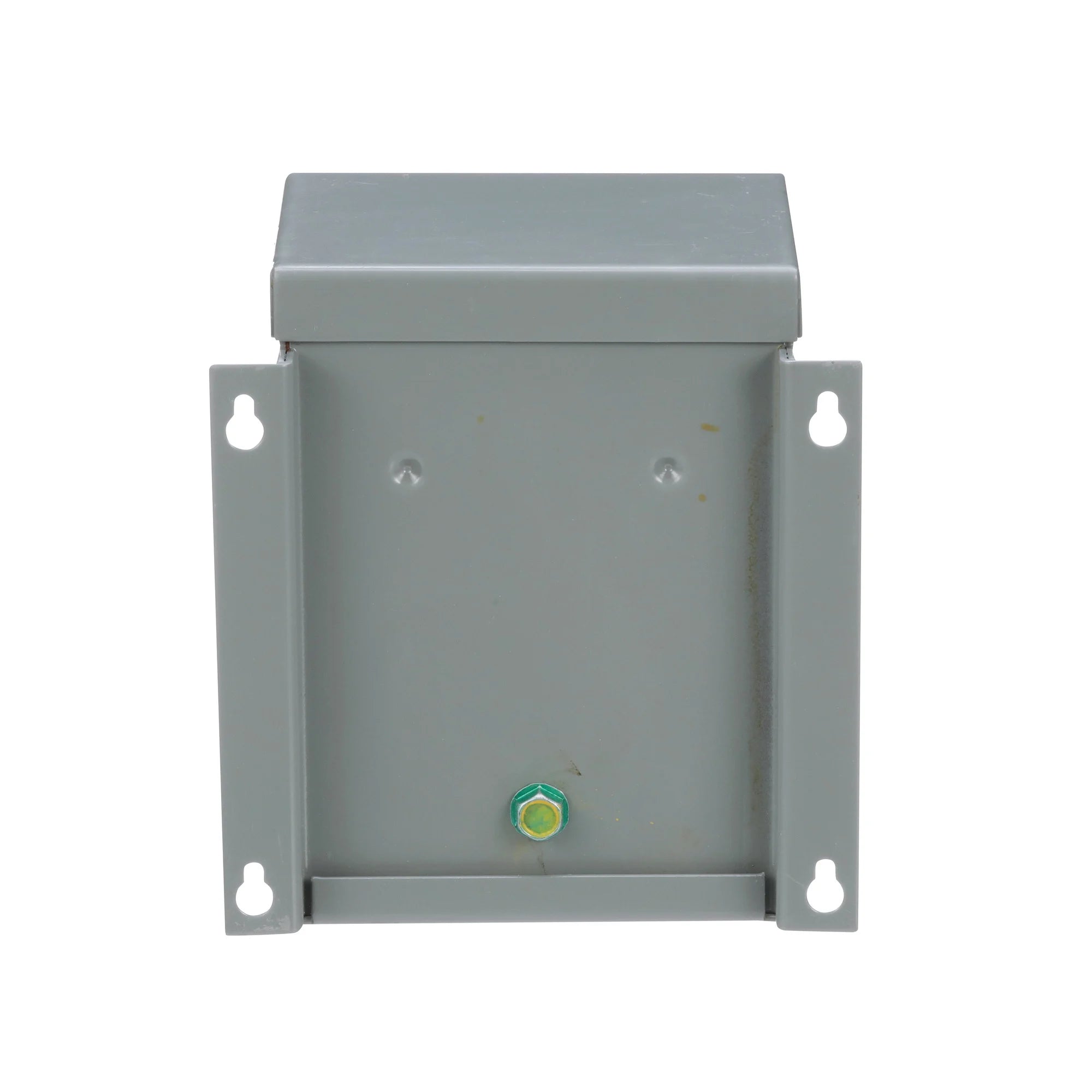

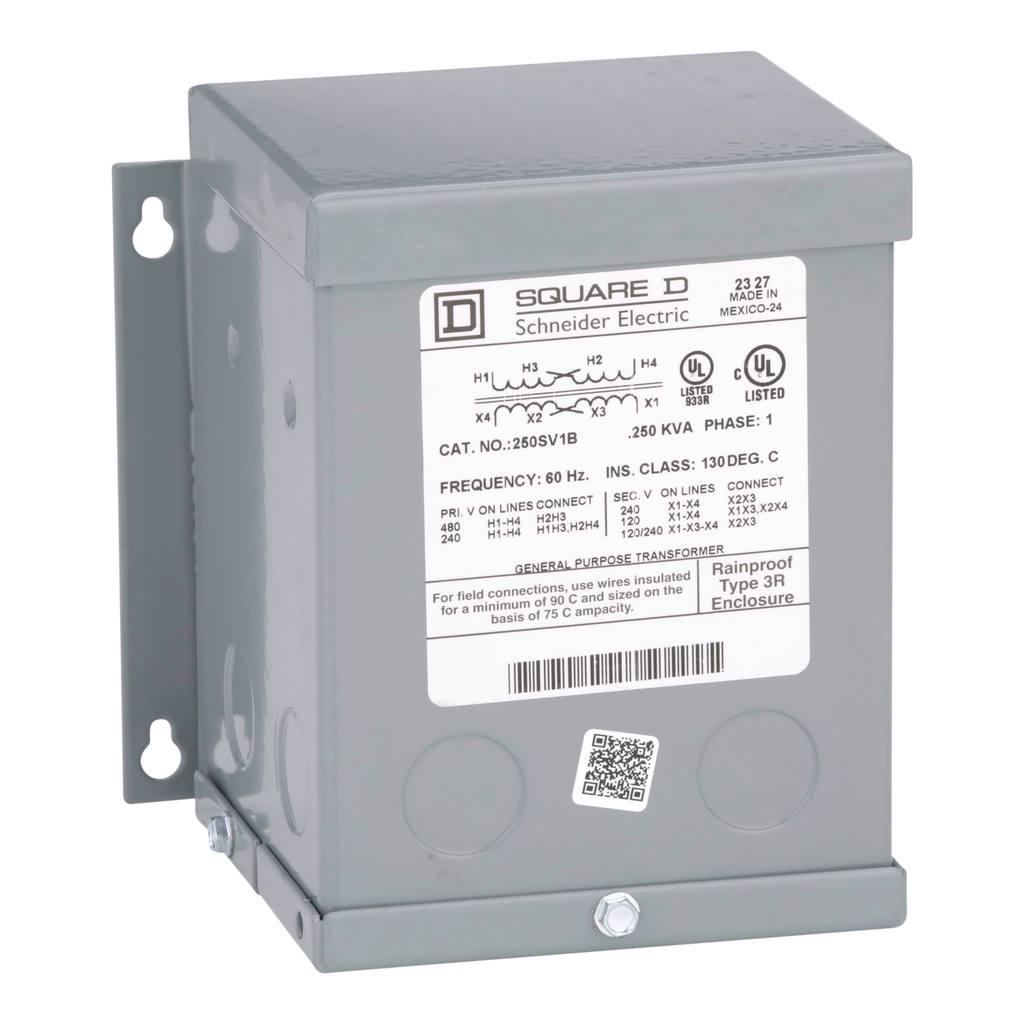

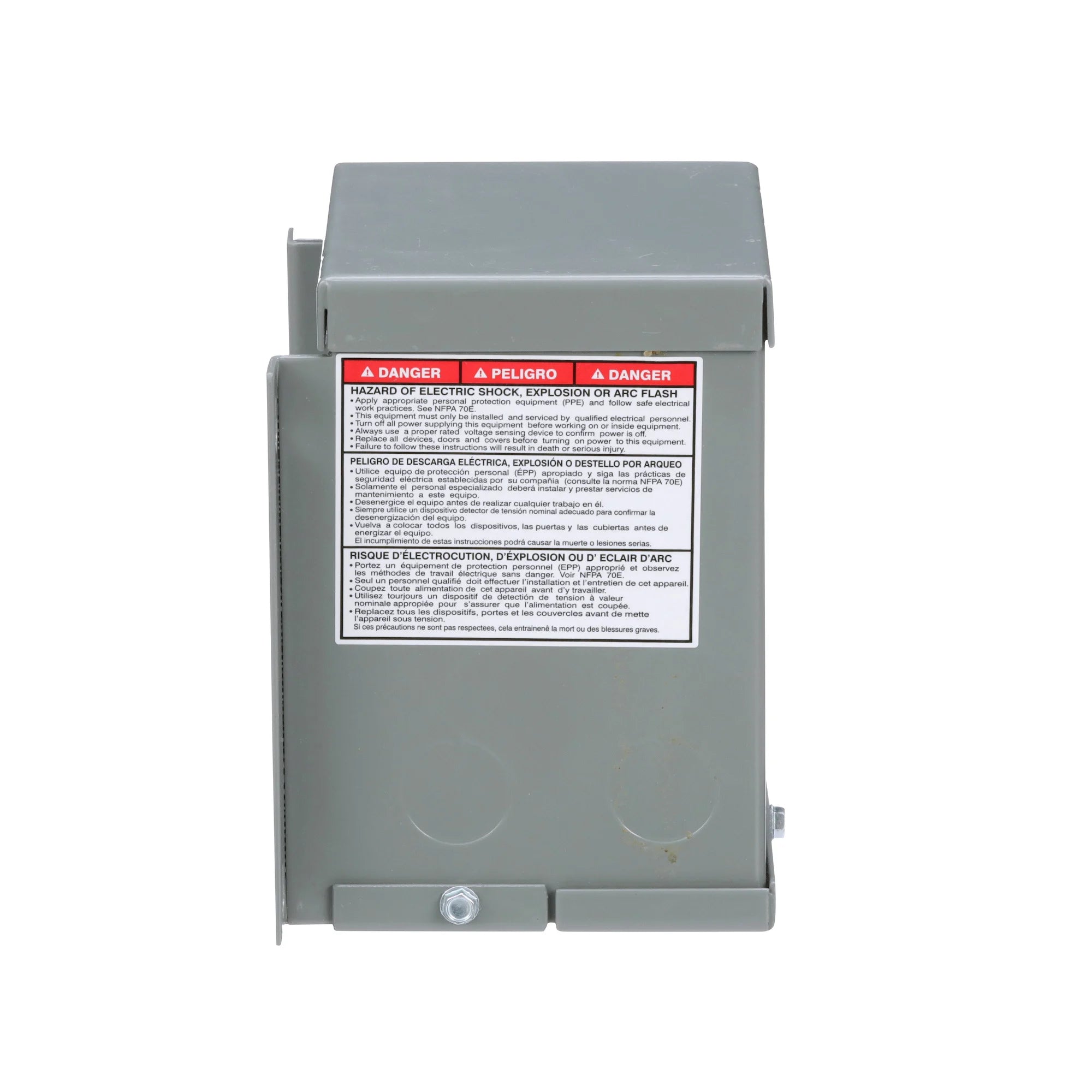

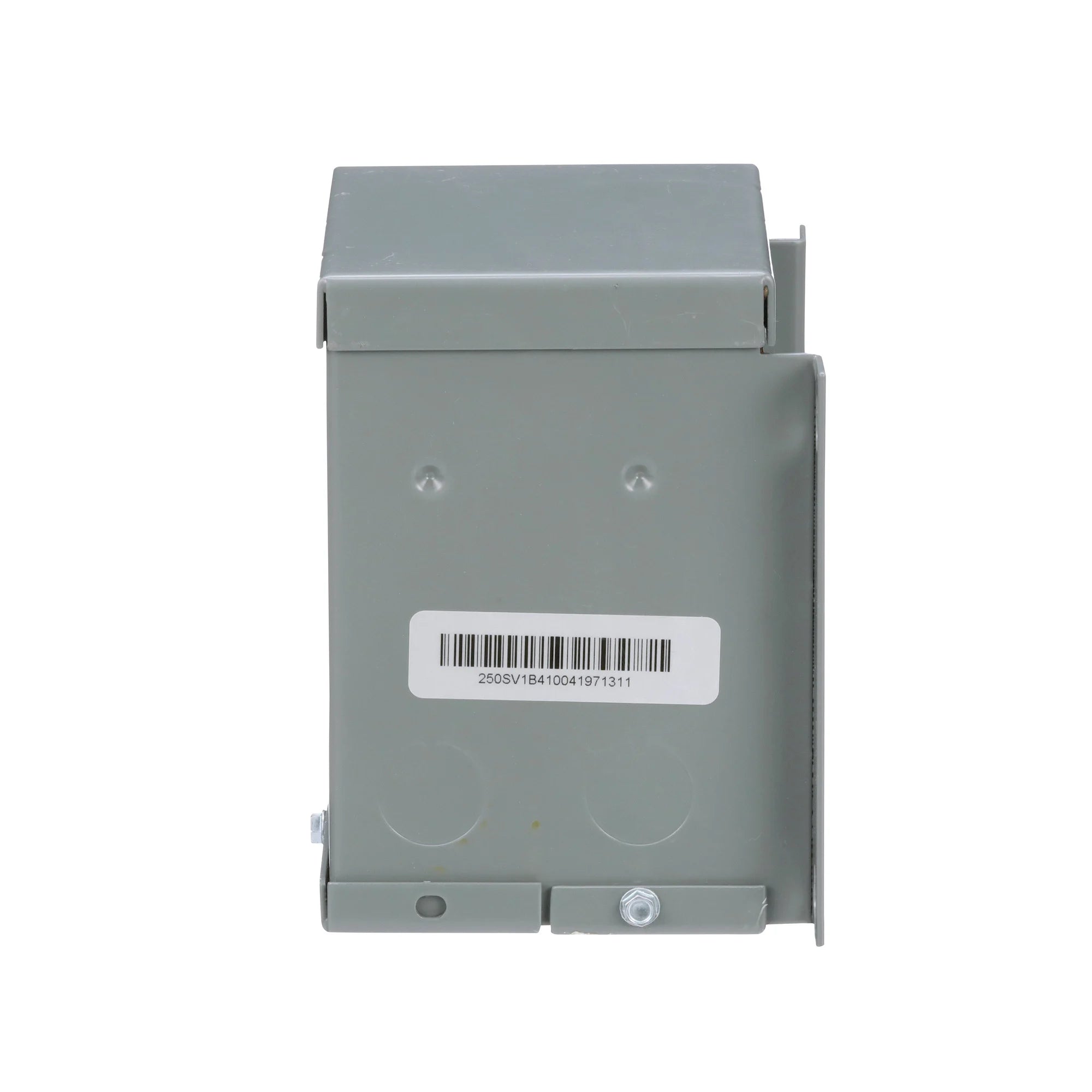

Square D 250SV1B 240 x 480 VAC Primary 120/240 VAC Secondary 0.25 kVa Dry Type General Purpose Transformer

Product Description

The Square D 250SV1B is a dry type general purpose transformer with a primary voltage of two hundred forty by four hundred eighty volts and a secondary voltage of one hundred twenty/ two hundred forty volts. This transformer is suitable for various electrical applications and is designed to meet UL and CSA standards.

• Resin-filled design for excellent durability.
• NEMA 3R rated enclosure for indoor or outdoor use.
• 1-phase operation with a power rating of 0.25 kVa.

Product Highlights

This transformer is ideal for HVAC, lighting, and heating applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Power: 0.25 kVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Dimensions: 5.5 in (H) x 5.23 in (W) x 4.06 in (D)
• Enclosure Material: Painted sheet steel
• Number of Phases: 1 Phase
• Temperature Rating: 80 degrees C
• Country of Origin: Mexico
• Warranty Length: 18 months
• Certifications: CSA, CULus, UL Listed
