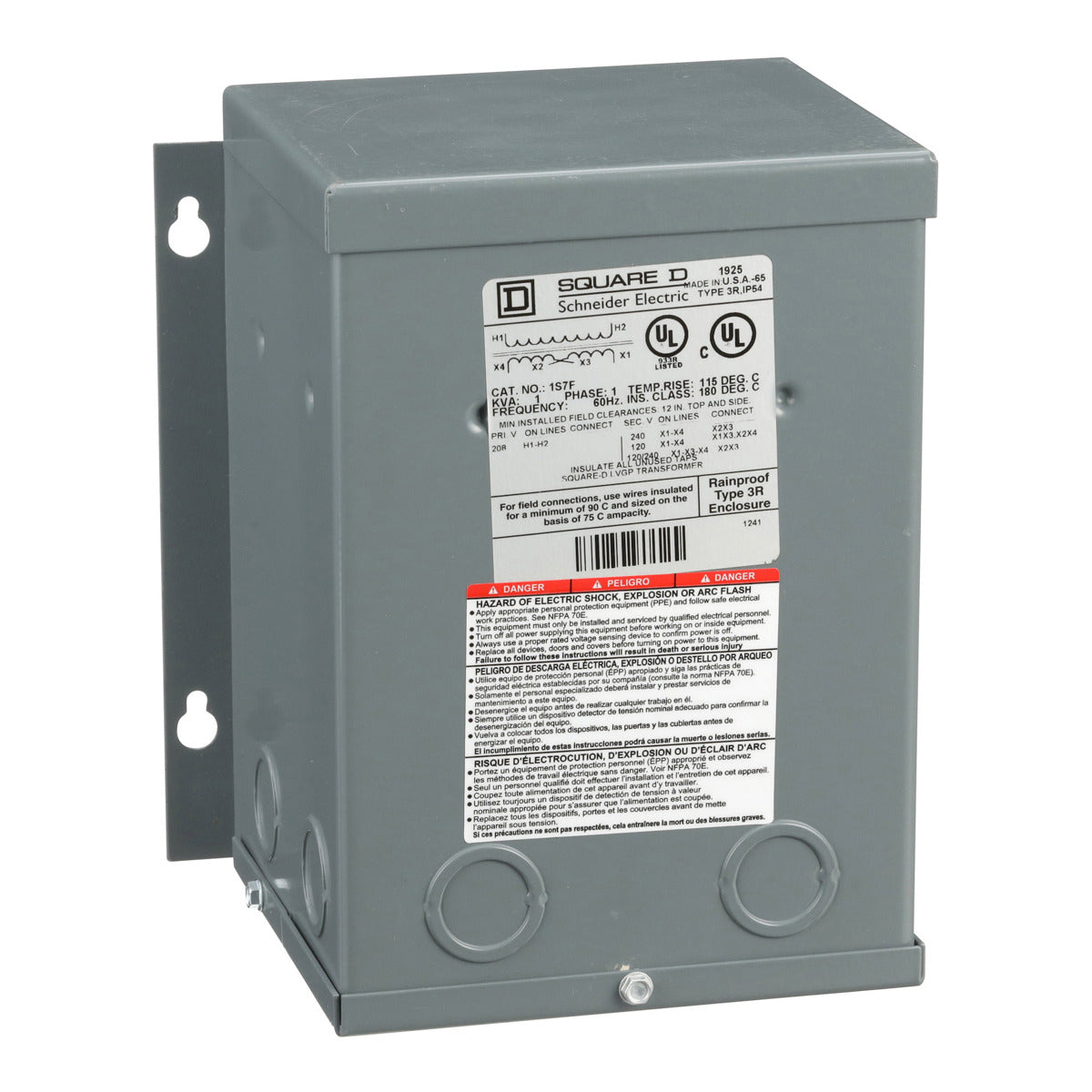

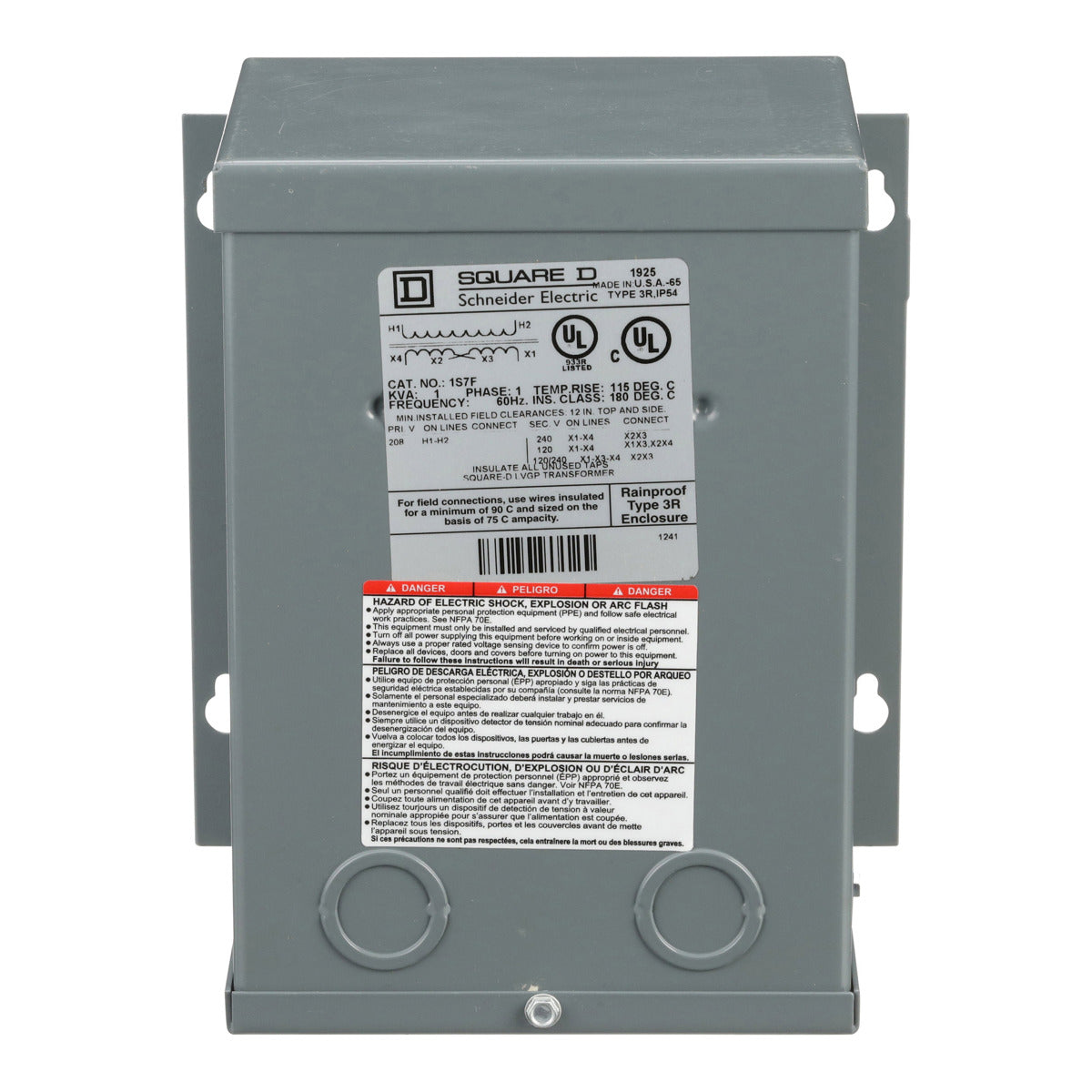

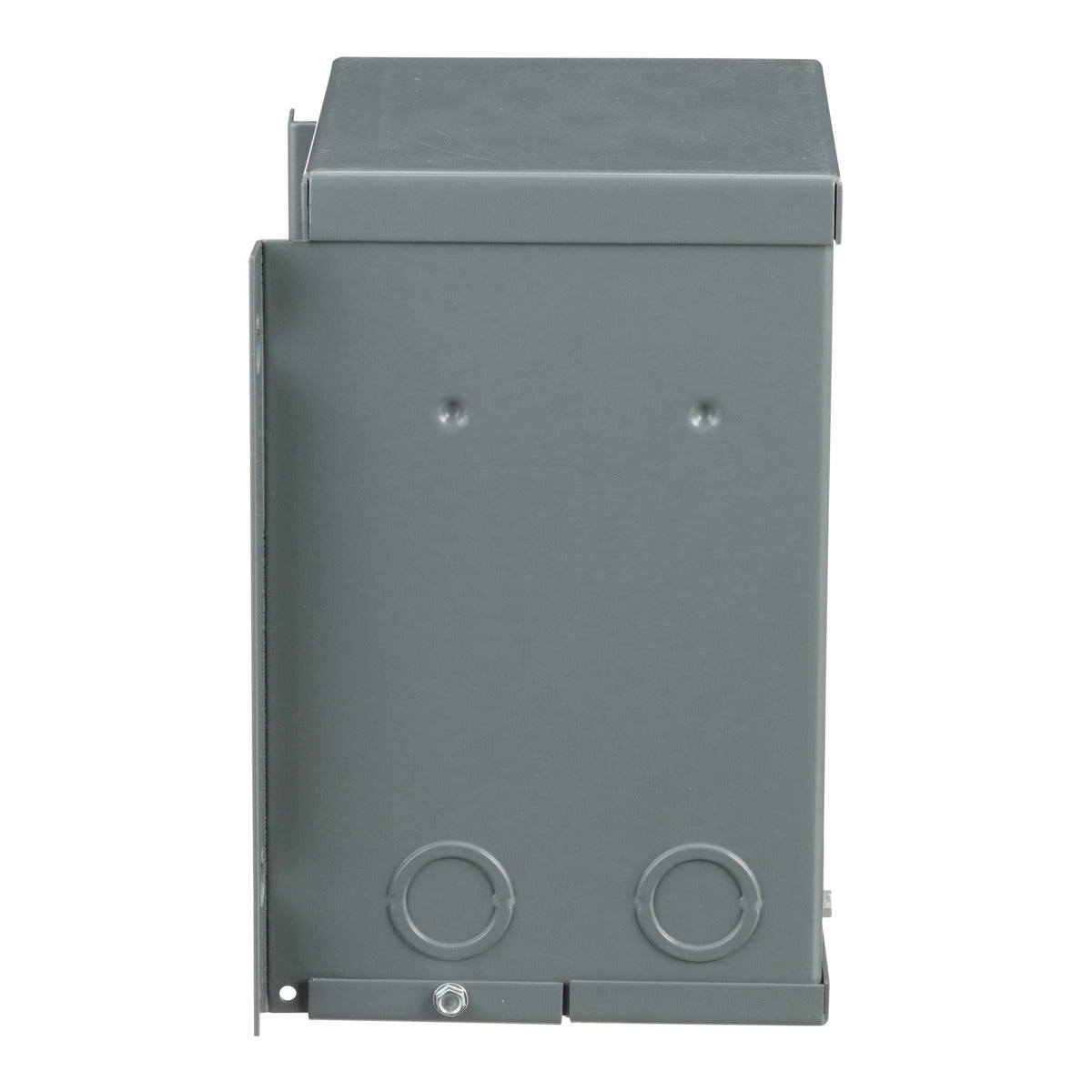

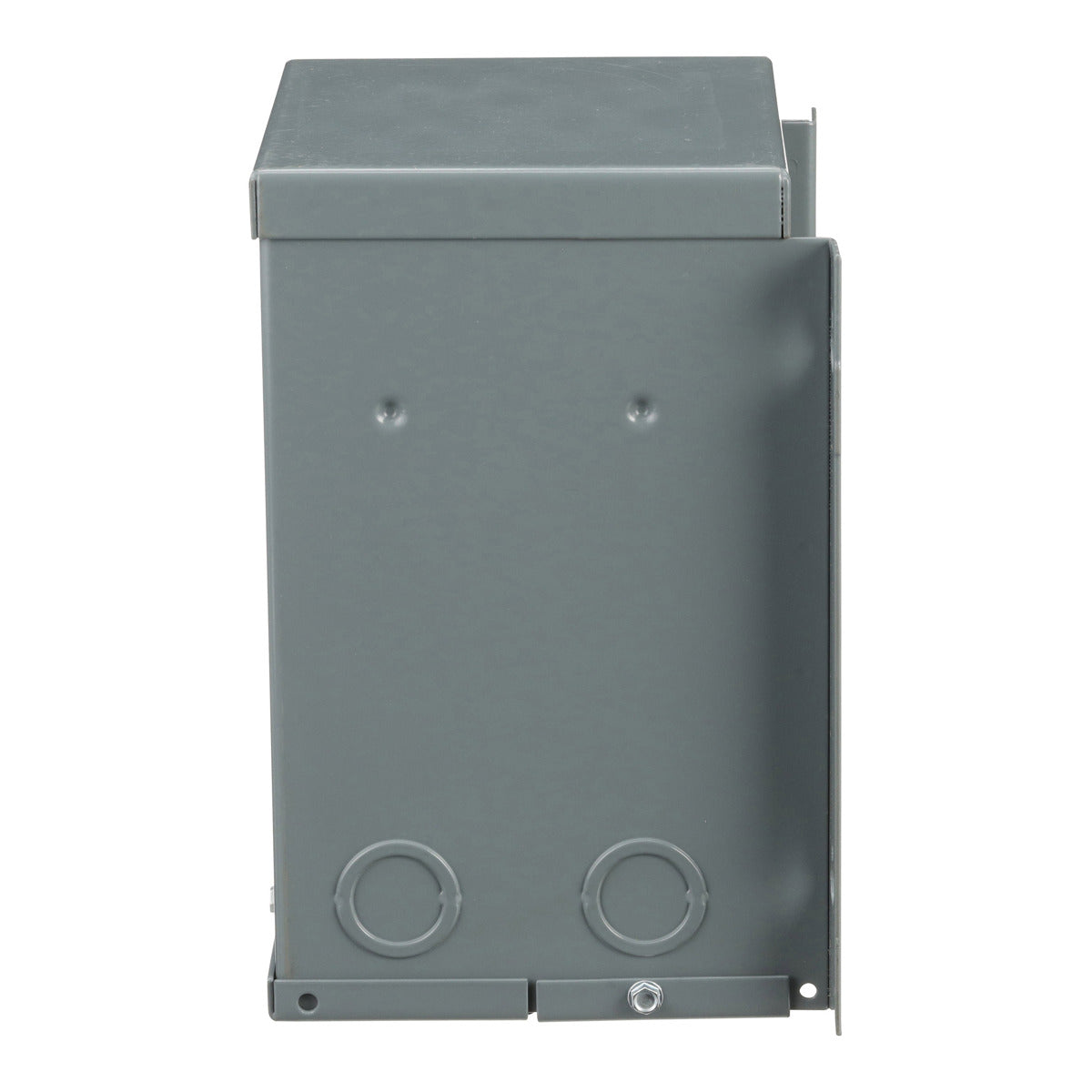

Square D 1S7F General Purpose Transformer 1 kVa 208 VAC Primary 120/240 VAC Secondary

Product Description

The Square D 1S7F is a dry type general purpose transformer with a primary voltage of two hundred eight volts and a secondary voltage of one hundred twenty to two hundred forty volts. This transformer is designed for effective use in various voltage systems worldwide. It has a resin encapsulated structure that protects the core and coil assembly. This makes it suitable for both indoor and outdoor installations where debris and contaminants can impair performance.

• 1 kVA rated power suitable for general purpose applications
• NEMA Type 3R enclosure for improved durability
• Wall-mounted design for ease of installation

Product Highlights

This transformer is ideal for applications in power distribution, heating, and lighting.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 1S7F
• Rated Power: 1 kVA
• Primary Voltage: 208 V
• Secondary Voltage: 120/240 V
• Number of Phases: 1
• Height: 8.13 inches
• Width: 6.94 inches
• Depth: 5.31 inches
• Enclosure Material: Painted sheet steel
• Temperature Rating: 115 degrees C
• Warranty Length: 18 months
