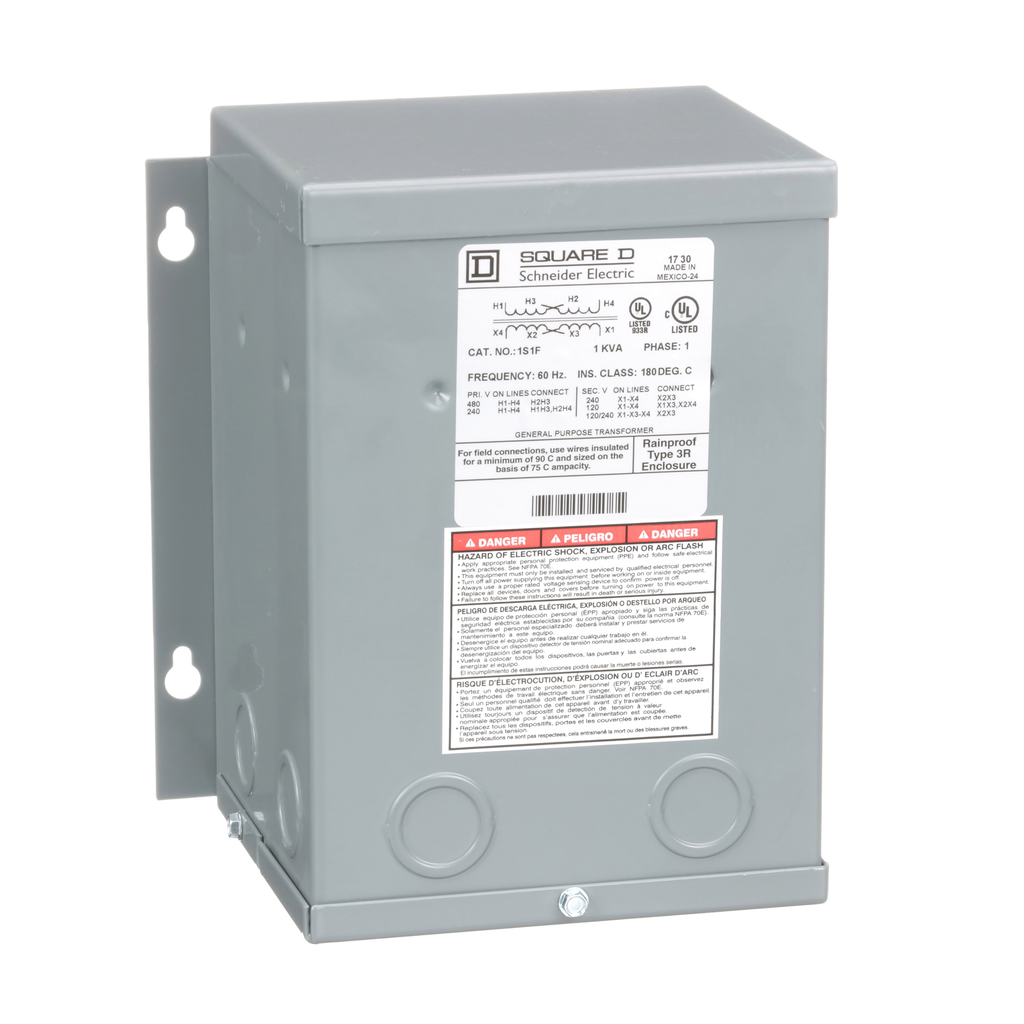

Square D 1S1F 1 kVa 240 x 480 VAC Primary 120/240 VAC Secondary Dry Type General Purpose Transformer

Product Description

Square D offers the 1S1F transformer, a dry type general purpose transformer designed for versatile applications. This transformer operates with a primary voltage of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty/two hundred forty VAC. It is perfect for indoor or outdoor use due to its sealed design that prevents contaminants from impacting performance. The transformer is compliant with UL and CSA standards, ensuring safety and reliability.

• Resin encapsulated for durable performance
• Rated power of 1 kVA
• NEMA 3R rated enclosure for enhanced protection

Product Highlights

This transformer is suitable for multiple applications, including lighting and heating. Its compact design allows for wall mounting while its robust construction ensures longevity in various environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 1S1F
• Rated Power: 1 kVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Number of Phases: 1
• Temperature Rating: 115 degrees C
• Weight: 21.2 lb
• Dimensions: 8.13 inches (H) x 6.94 inches (W) x 5.31 inches (D)
• Enclosure Material: Painted sheet steel
• Warranty Length: 18 months
