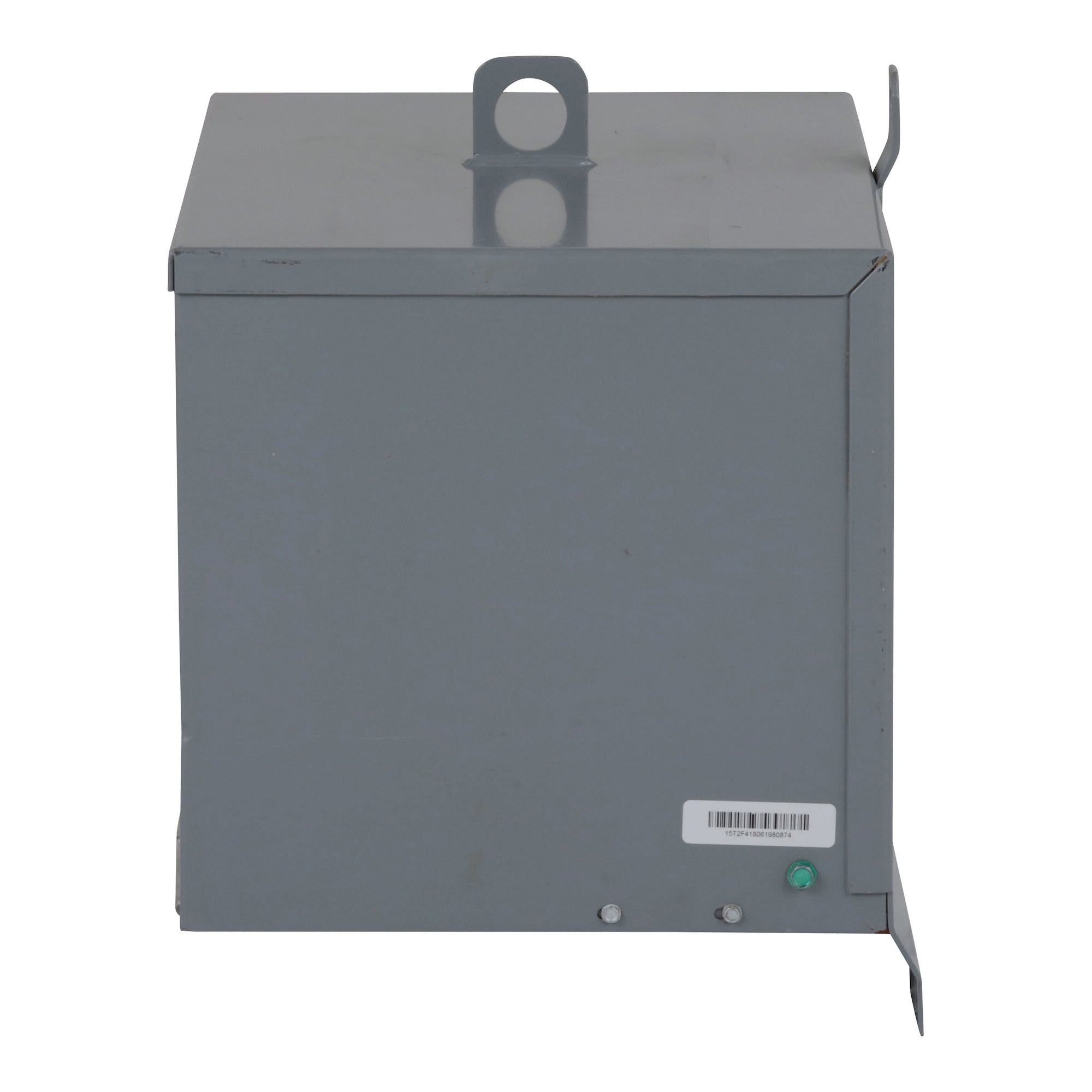

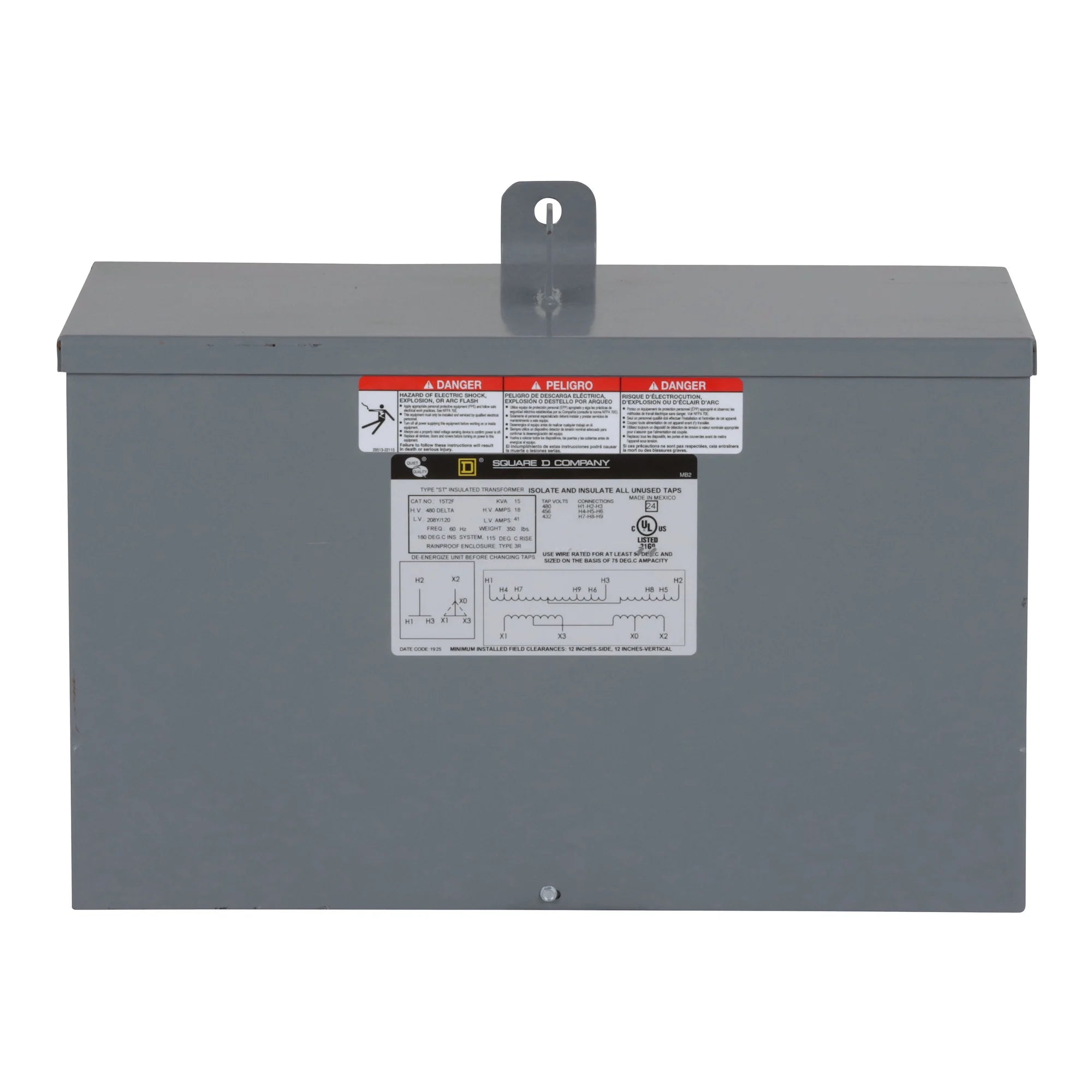

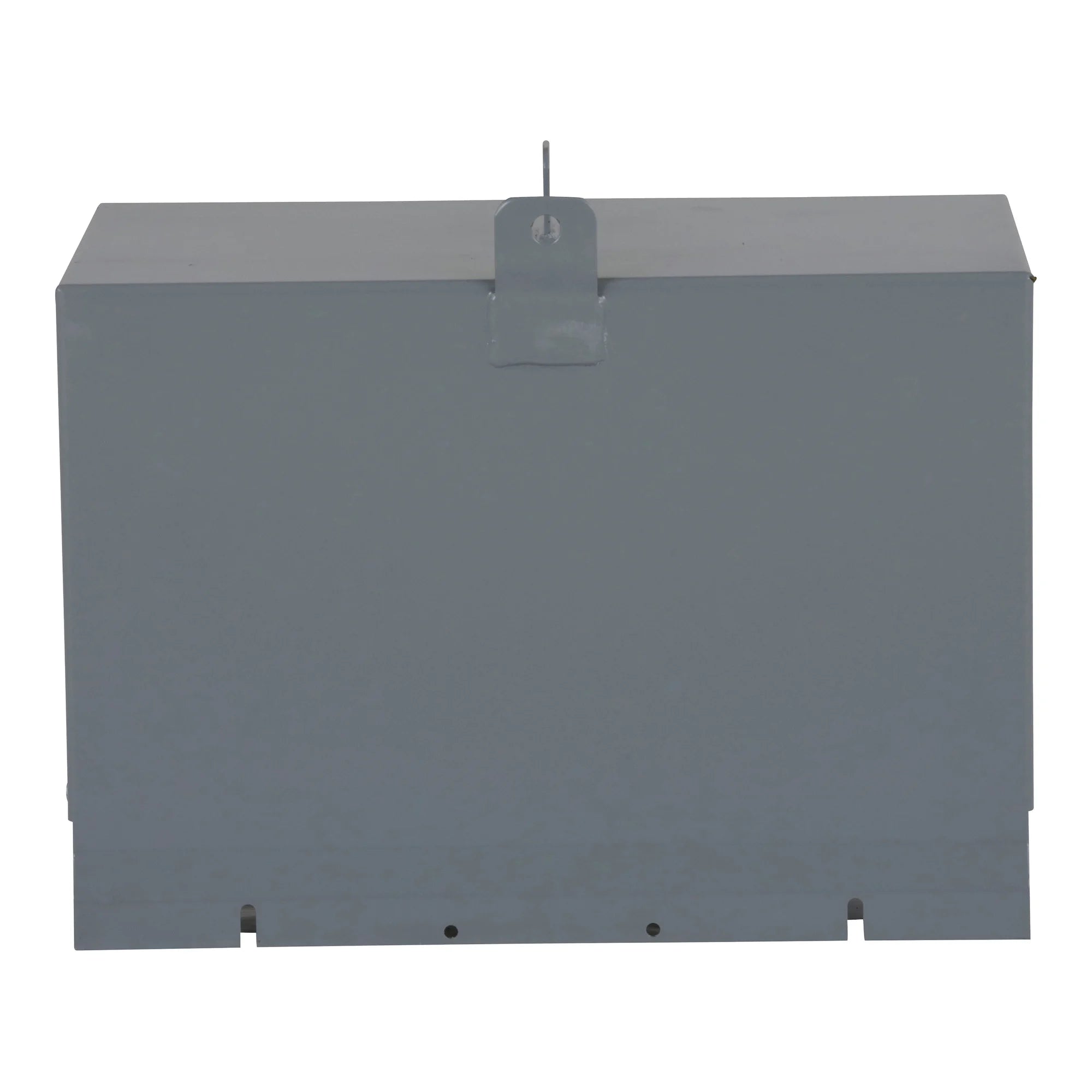

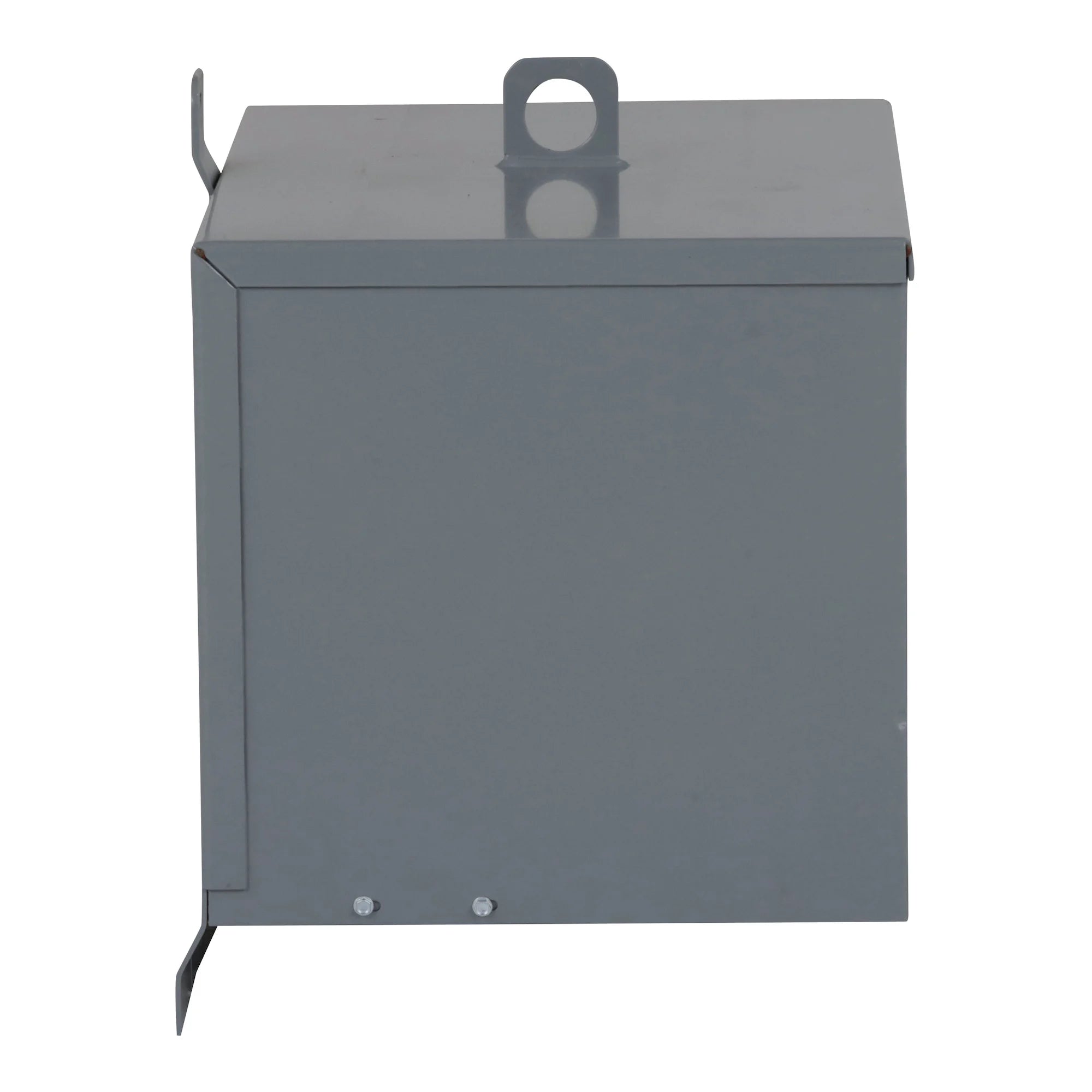

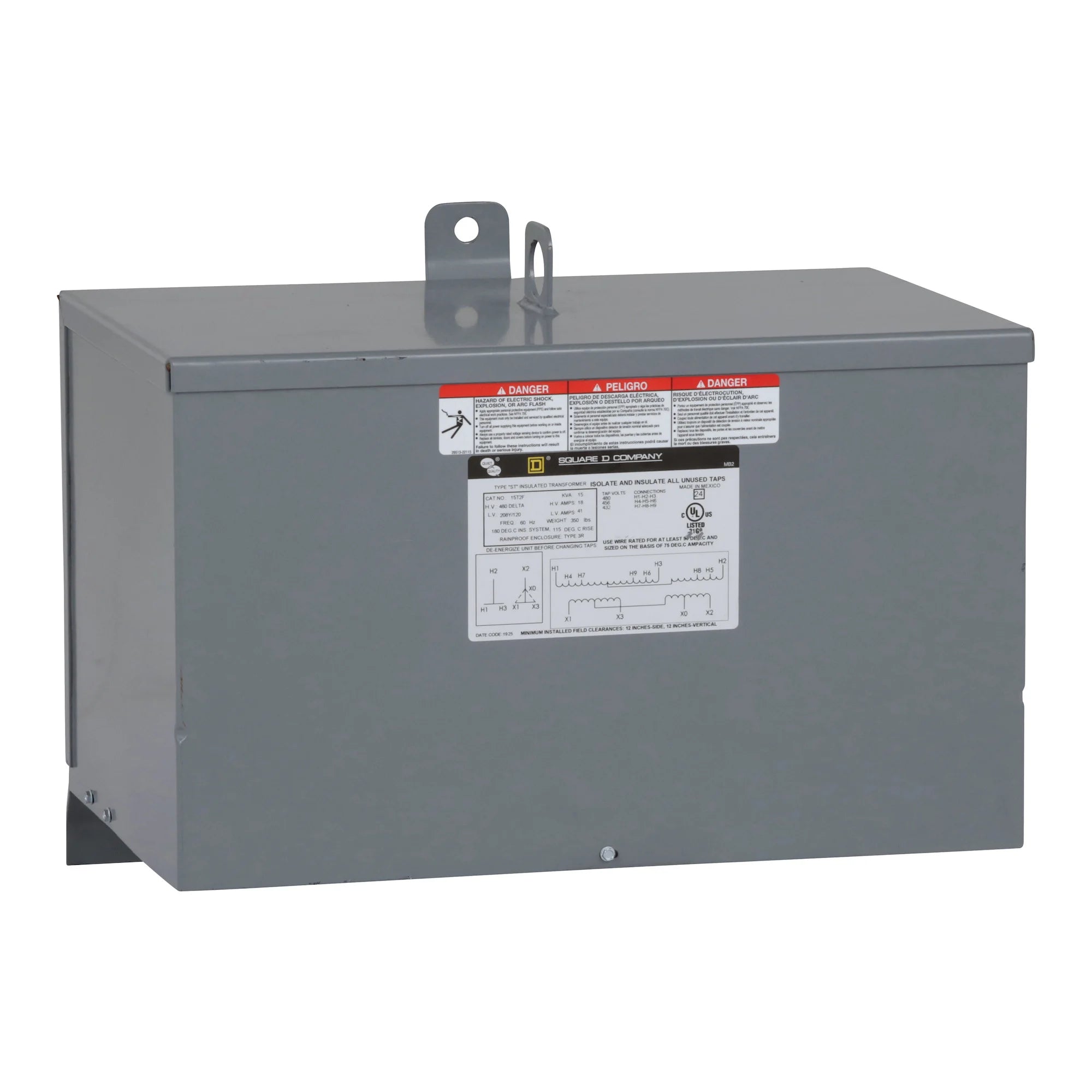

Square D 15T2F Transformer, Dry Type, Encapsulated, 15kVA, 3 Phase, 480V Primary, 208Y/120V Secondary

Product Description

The Square D 15T2F is a resin encapsulated transformer designed for versatile voltage systems. It operates with a primary voltage of four hundred eighty volts delta and a secondary voltage of two hundred eight Y over one hundred twenty volts. This transformer is suitable for indoor and outdoor applications as it features an enclosure that prevents contamination.

• Rated power of 15 kVA
• Three-phase configuration
• NEMA 3R rated for durability

Product Highlights

Ideal for power distribution, the 15T2F provides robust performance in various environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 15T2F
• Primary Voltage: 480 V delta 208Y/120 V
• Rated Power: 15 kVA
• Height: 14.75 inches
• Width: 19.1 inches
• Depth: 12.25 inches
• Country of Origin: Mexico
• Warranty: Contractual Warranty: 18 months
