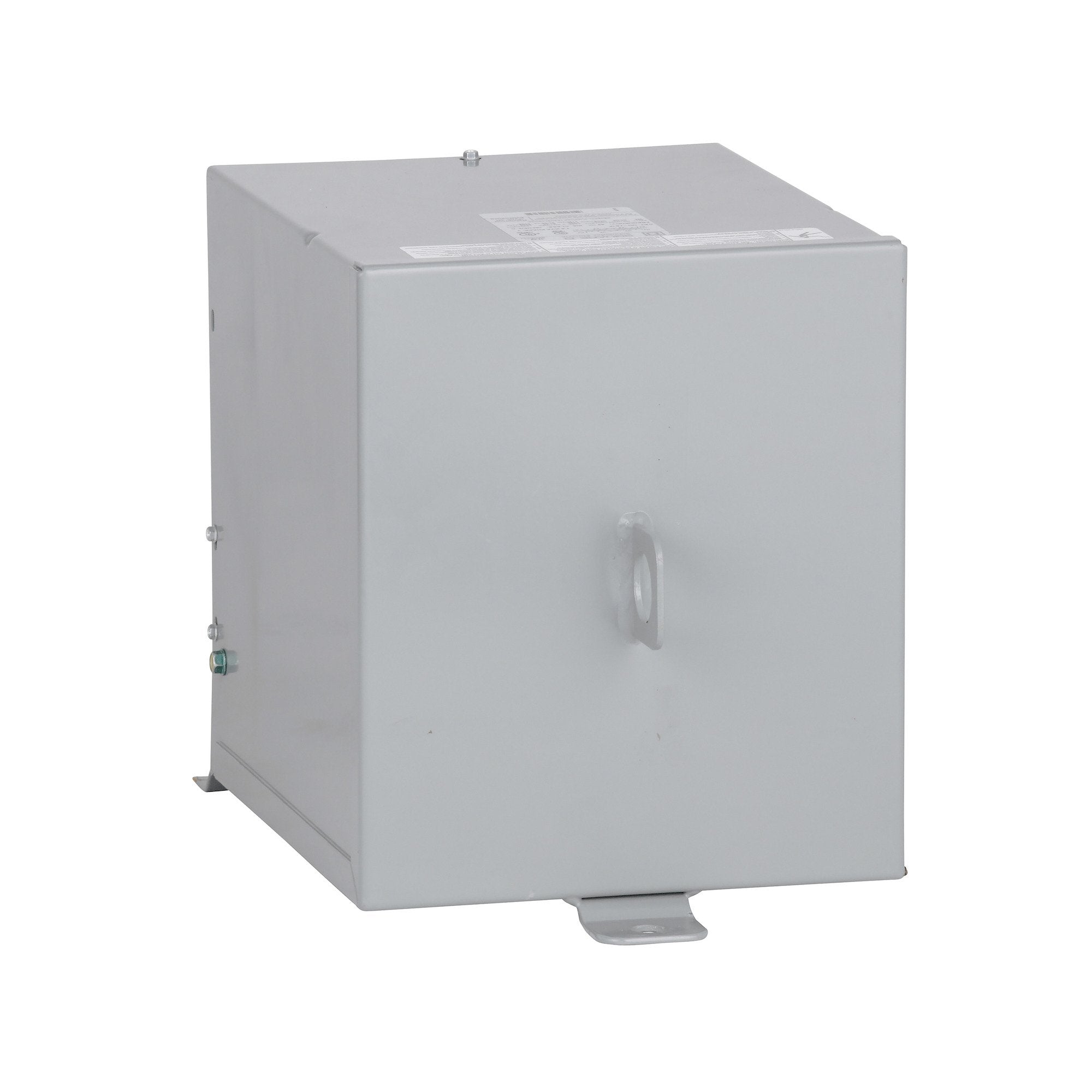

Square D 10S1F Transformer Dry 10KVA 240X480V-120/240V

Product Description

The Square D 10S1F is a dry sealed transformer designed for general purpose applications. It features a power rating of ten kVA and operates with a primary voltage of two hundred forty by four hundred eighty volts, and a secondary voltage of one hundred twenty by two hundred forty volts. This transformer is epoxy encapsulated, ensuring safety in various environments by preventing contaminants from affecting performance. Its robust Type 3R enclosure is suitable for outdoor installation, providing protection from weather and debris.

• Rated Power: 10 kVA
• Primary Voltage: 240 x 480 V
• NEMA 3R enclosure rating

Product Highlights

This transformer is equipped with wall mounting options and made from painted sheet steel for durability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Model Number: 10S1F
• Power Rating: 10 kVA
• Phase: 1 Phase
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Enclosure Type: Painted sheet steel; 13B
• Dimensions: 14.75 inches (H) x 9.75 inches (W) x 11.75 inches (D)
• Weight: 165 lb
• Warranty Length: 18 months
• Country of Origin: Mexico
• Certifications: UL Listed, CSA
