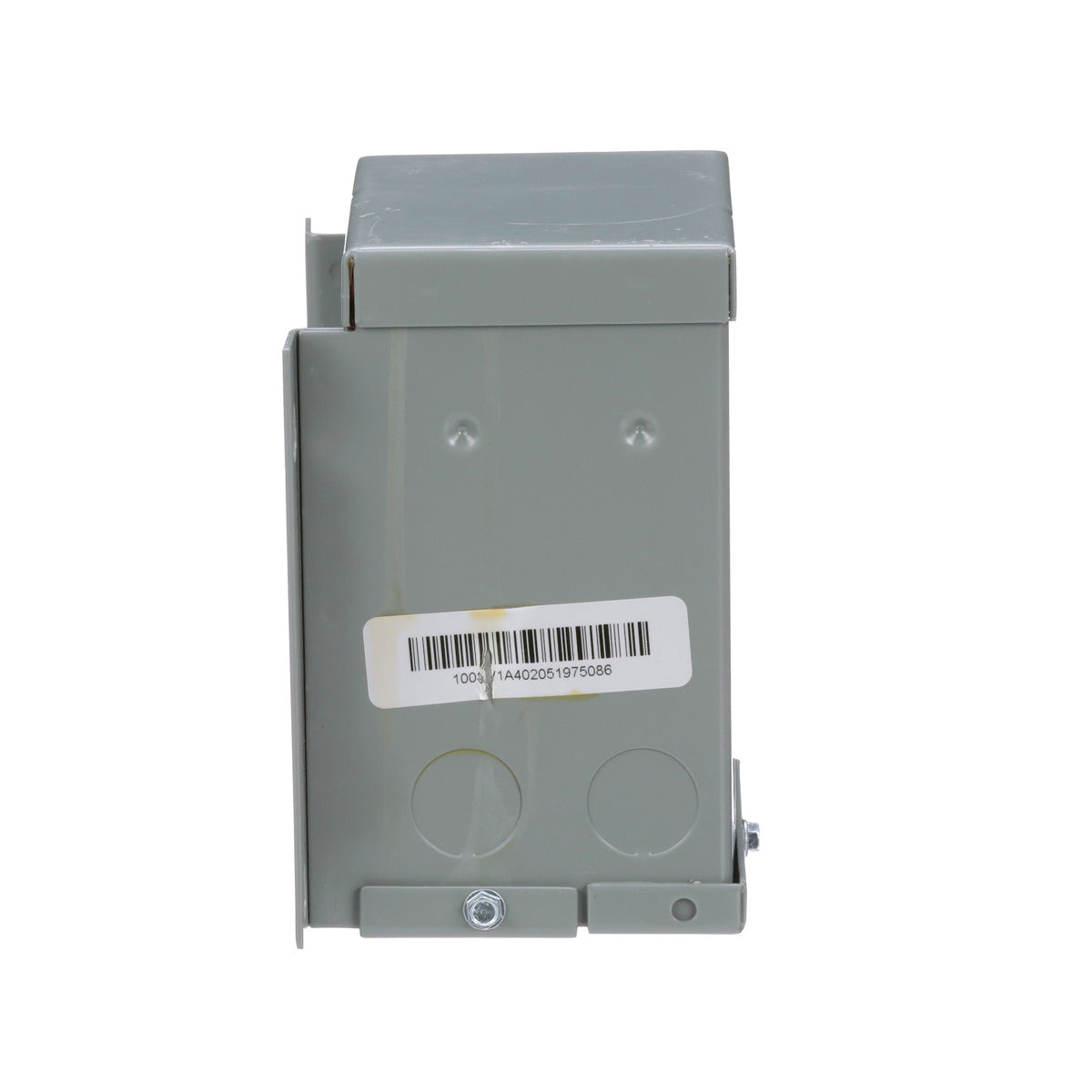

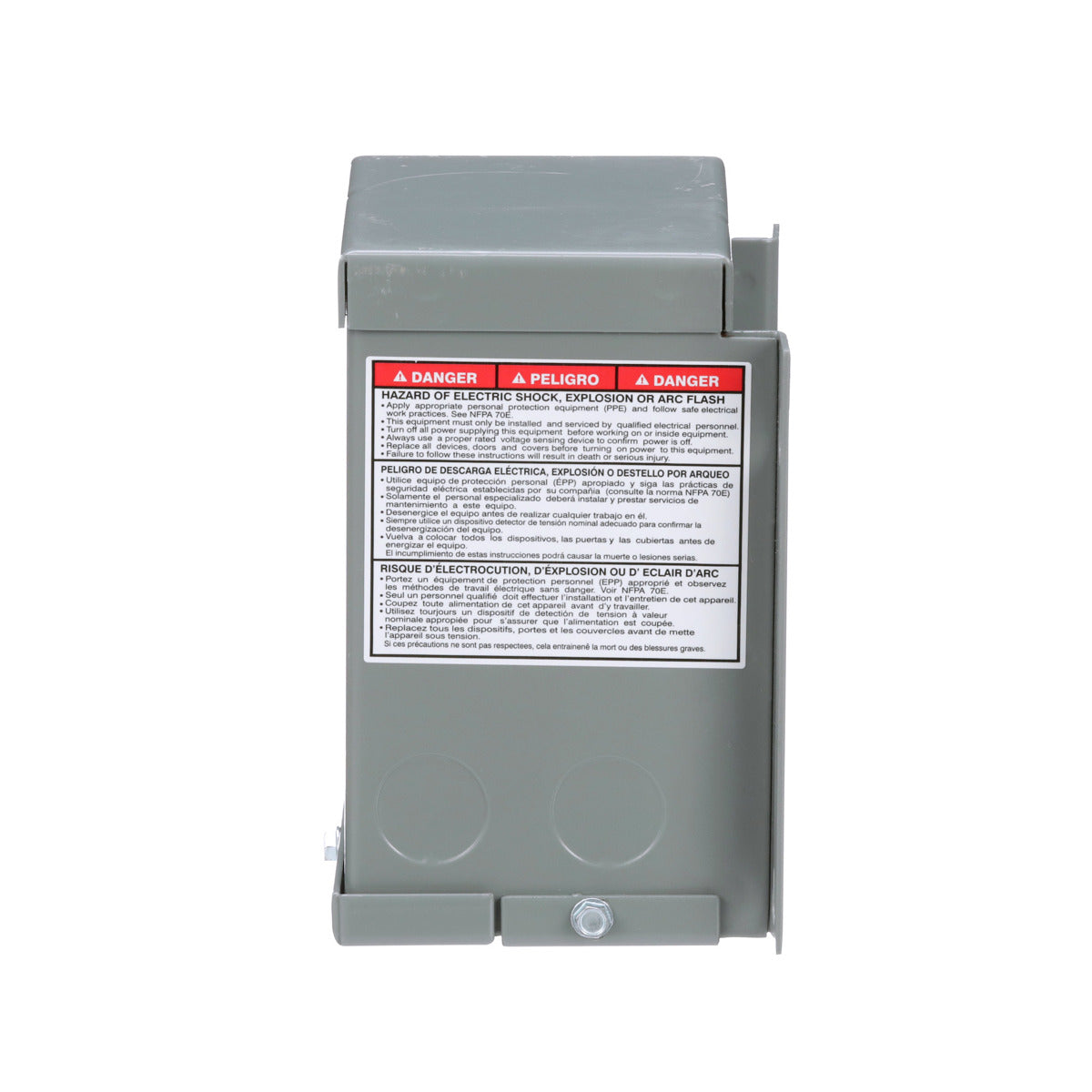

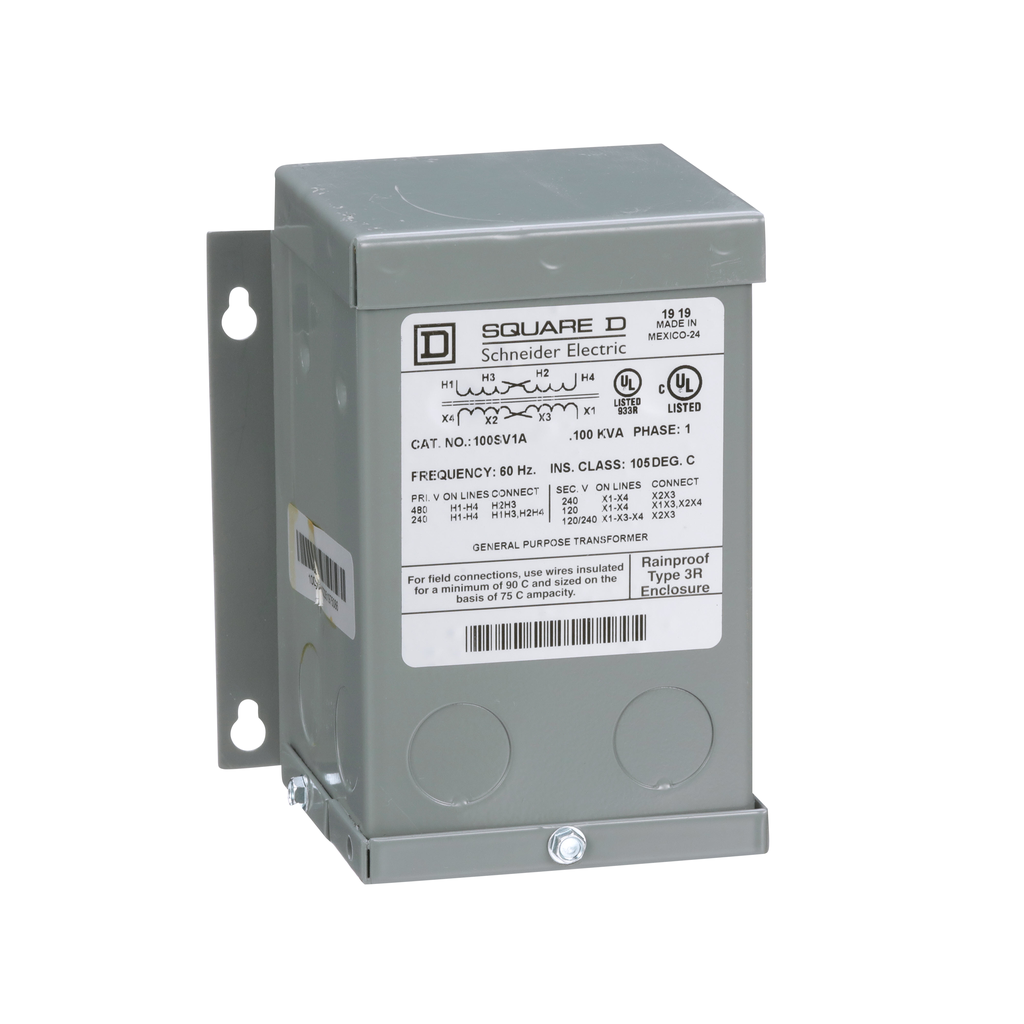

Square D 100SV1A 0.1 kVa 240 x 480 VAC Primary 120/240 VAC Secondary Dry Type General Purpose Transformer

Product Description

The Square D 100SV1A is a dry type transformer with a rated power of 0.1 kVA. It operates on a primary voltage of 240 x 480 volts and has a secondary voltage of 120/240 volts. This transformer is suitable for general purpose use in power, heating, and lighting applications.

• Type 3R enclosure for enhanced protection
• Resin encapsulated for durability in diverse environments

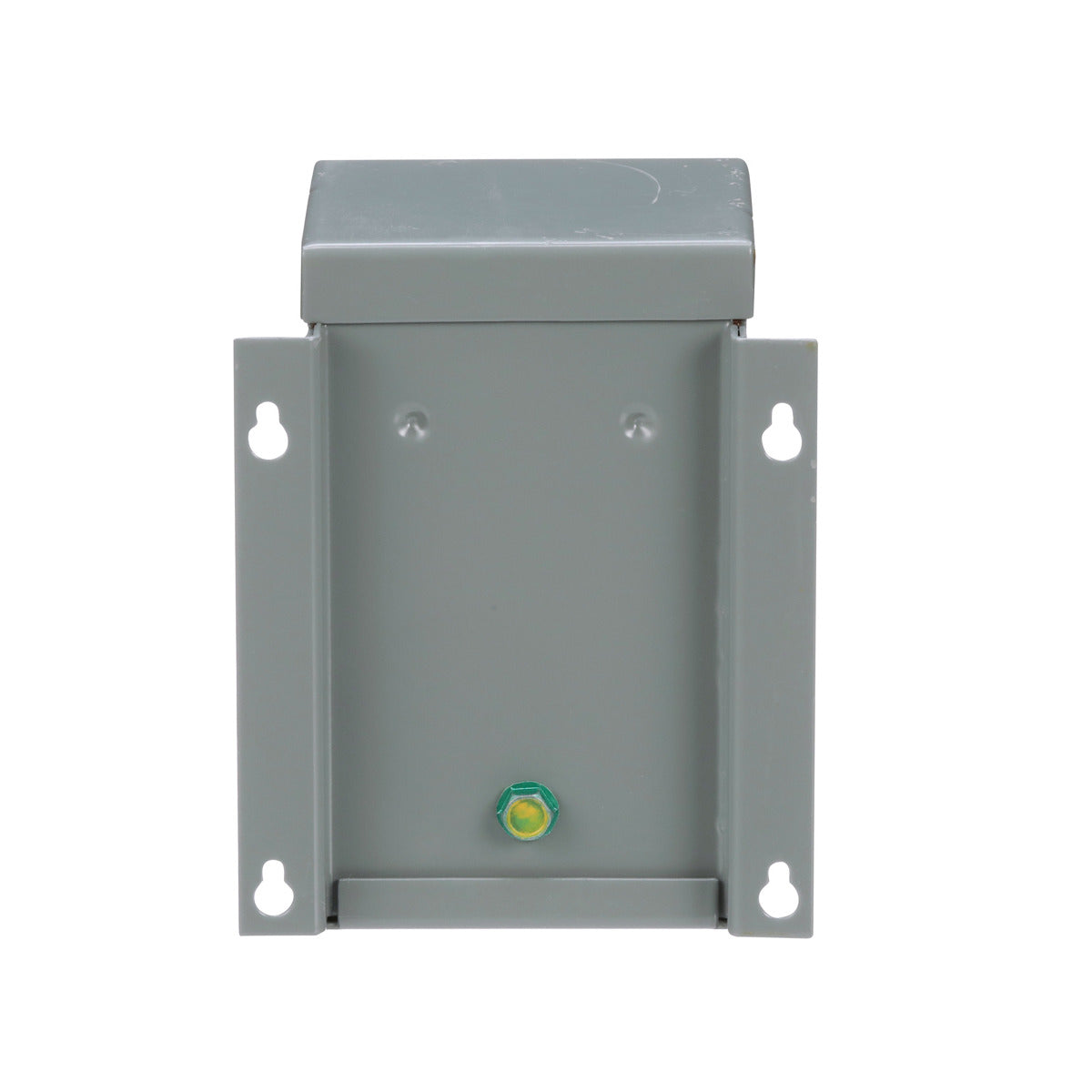

• Wall-mounted design for easy installation

Product Highlights

This transformer is designed to withstand various environmental conditions with its epoxy encapsulated core and coil assembly, making it ideal for both indoor and outdoor use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 100SV1A
• Rated Power: 0.1 kVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Enclosure Material: Painted sheet steel
• Height: 5.5 inches
• Width: 4.47 inches
• Depth: 3.44 inches
• Number of Phases: 1 Phase
• Weight: 10 pounds
