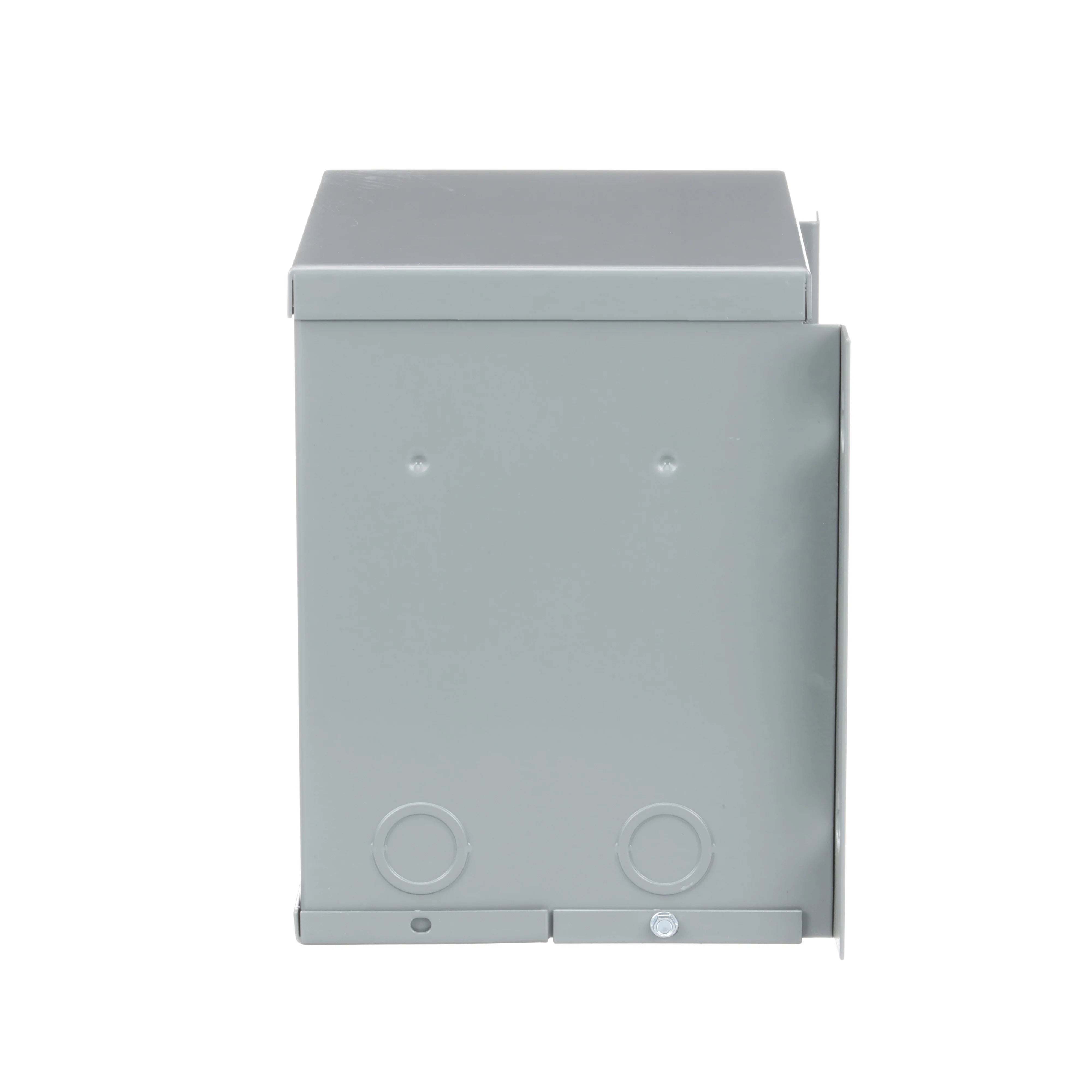

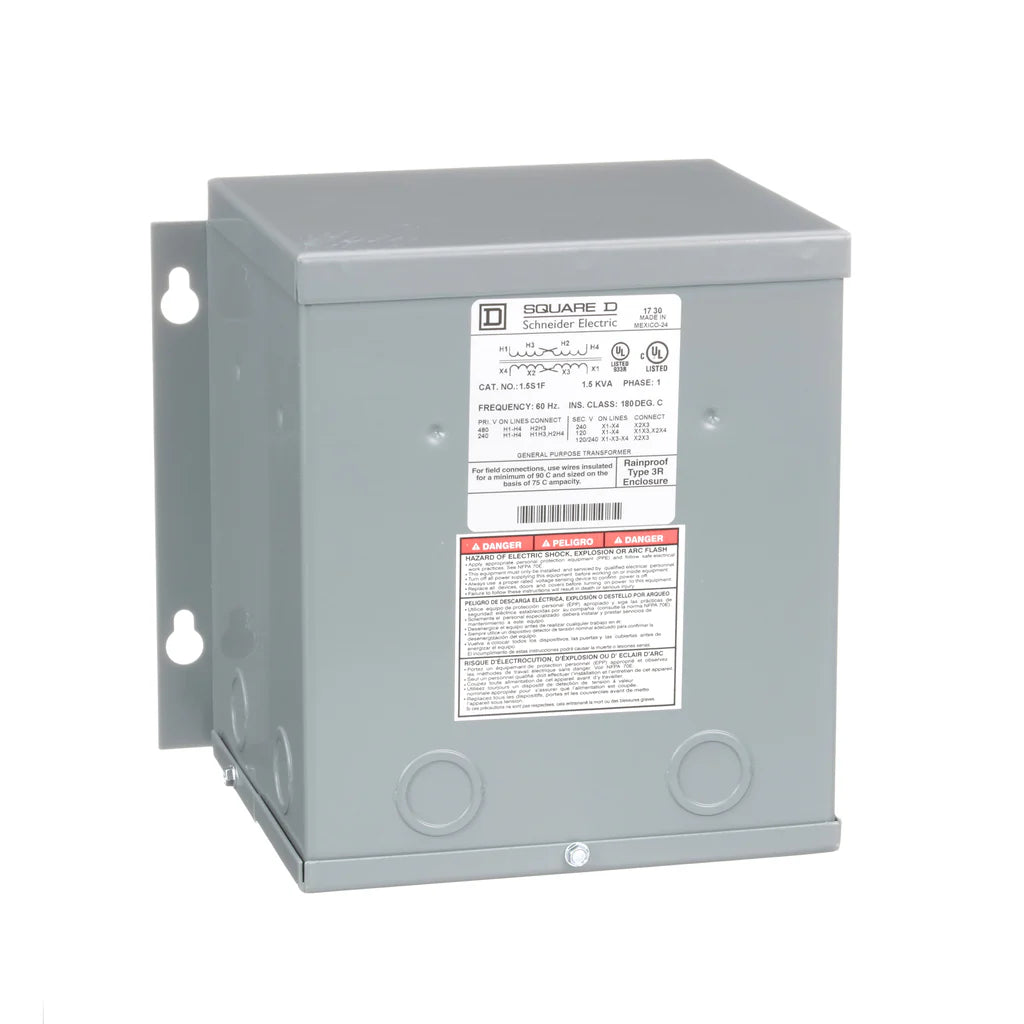

Square D 1.5S1F 1.5 kVa 240 x 480 VAC Primary 120/240 VAC Secondary Dry Type General Purpose Transformer

Product Description

Square D offers the 1.5S1F transformer designed for general purpose applications. This dry type transformer features a primary voltage of two hundred forty by four hundred eighty volts and a secondary voltage of one hundred twenty/ two hundred forty volts. The transformer is wall-mounted and encapsulated in resin, providing protection from airborne particles. It is built to operate effectively in various environments and meets UL and CSA standards.

• 1.5 kVA rated power
• NEMA 3R rated enclosure
• Suitable for indoor and outdoor installations

Product Highlights

This transformer is ideal for power, heating, and lighting applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Power: 1.5 kVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Phase: 1
• Enclosure: Painted sheet steel
• Wall Mounted: Yes
• Dimensions: 8.25 inches (H) x 8.68 inches (W) x 6.56 inches (D)
• Weight: 30.1 lb
• Country of Origin: Mexico
• Temperature Rating: 115 degrees C
