JOHNSON A19AAD-5C Remote Bulb Temp. Control Nema 1 30/50F

Product Description

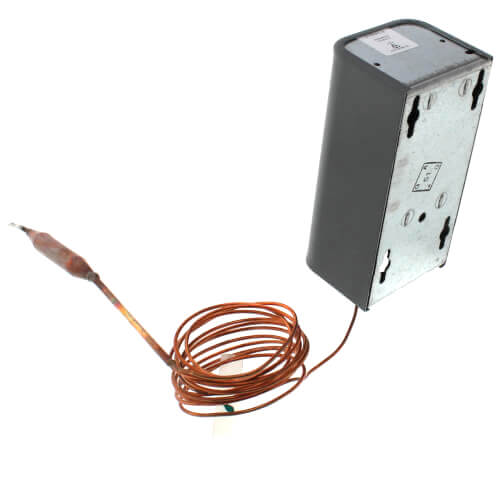

The Johnson Controls A19AAD-5C is a SPST remote bulb temperature control designed for industrial use. It offers accurate temperature regulation with an operating range from thirty degrees Fahrenheit to fifty degrees Fahrenheit. This control unit features a compensated differential of two degrees Fahrenheit for precise temperature maintenance. The six-foot capillary tube allows for flexible bulb placement to suit various installation needs.

• Operating temperature range: 30°F to 50°F
• Compensated differential: 2°F
• Enclosed in NEMA 1 housing for dust and moisture protection

Product Highlights

This device is ideal for HVAC systems, industrial machinery, and process control applications where accurate temperature measurement is crucial.

Product Information

Standard Information

• Brand: Johnson
• MPN: A19AAD-5C

Technical Specifications

• Temperature range: 30 °F to 50 °F
• Capillary length: 6 feet
• Switch type: SPST
• Housing type: NEMA 1
• Weight: 1.3 pounds
• Shipping dimensions: 6.5 x 5 x 3 inches
• Applications: HVAC systems, industrial temperature control
