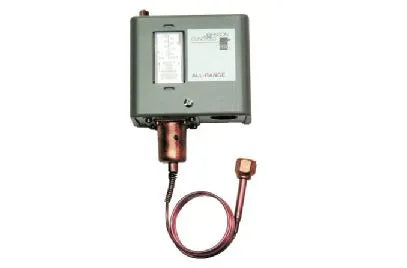

Johnson Controls P70CA-3C High Pressure Fan Cycling Control 50-450PSI

Product Description

The Johnson Controls P70CA-3C Pressure Control is a high-pressure control device designed to manage pressures from 50 to 500 psi. Widely used in HVAC applications, this control is built to withstand rigorous conditions and ensure reliable performance.

• High pressure control range of 50 to 500 psi
• SPST switch action: Opens on high pressure, closes on low pressure
• Durable, all-steel case for long-lasting use

Product Highlights

The Johnson Controls P70CA-3C is engineered for high-pressure applications, making it ideal for commercial refrigeration and air conditioning systems. The device features a steel case, a SPST switch, and a manual reset lockout option. It supports a wide range of pressure settings, ensuring efficient and safe operation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P70CA-3C

Technical Specifications

• Pressure Range: 50 to 500 psi
• Differential Pressure: 60 to 150 psi
• Switch Action: SPST, Opens on High Pressure
• Connection Type: 1/4 Inch Flare Nut
• Capillary Length: 36 Inches
• Voltage: 120/240 VAC
• Cycle/Hertz: 50/60 Hz
• Enclosure Type: NEMA 1
• Material: Steel Case
• Dimensions: 10.3 x 4.6 x 2.6 inches
• Weight: 2.4 pounds
• Country of Origin: Mexico
• Standards/Approvals: UL Listed
