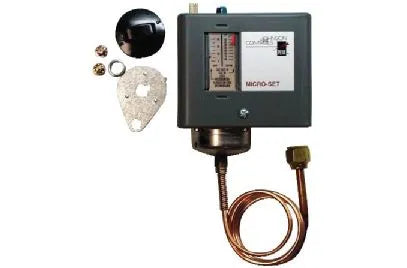

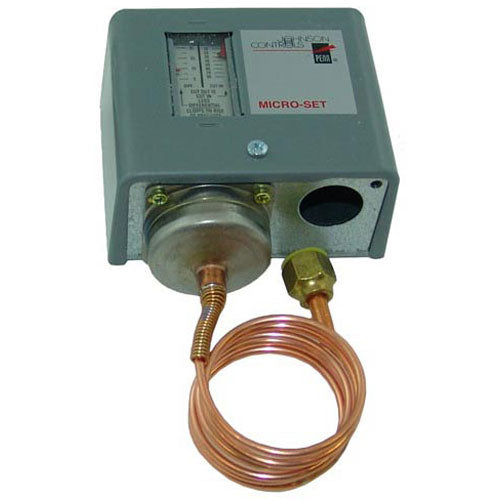

Johnson Controls P70AB-12C Pressure Control 12-80 Pounds per Square Inch Gauge 5-35 Pounds per Square Inch

Product Description

The Johnson Controls P70AB-12C Low Pressure Control is designed for use in non-corrosive refrigerant applications. This unit provides single-pole, single-throw (SPST) control, opening on low pressure with a maximum working pressure of 80 psi and a differential range of 5 to 35 psi.

• SPST switch that opens on low pressure
• Manual reset lockout for low pressure
• Highly precise MICRO-SET calibration

Product Highlights

This pressure control is ideal for commercial refrigeration and air conditioning systems. Its all-steel case and cover offer robust protection for the internal components.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P70AB-12C

Technical Specifications

• Type: Low Pressure Control
• Switching: SPST, Opens on Low Pressure
• Pressure Range: 12 to 80 psi
• Differential: 5 to 35 psi
• Connections: 1/4 Flare Nut, 36 Inch Capillary
• Enclosure: NEMA 1
• Voltage: 120/240 VAC
• Material: Steel Case
• Dimensions: 10.4 inches (Length), 4.5 inches (Width), 2.5 inches (Height)
• Weight: 2.6 lbs
• Country of Origin: Mexico
