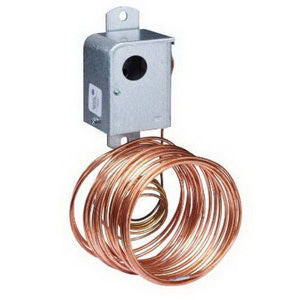

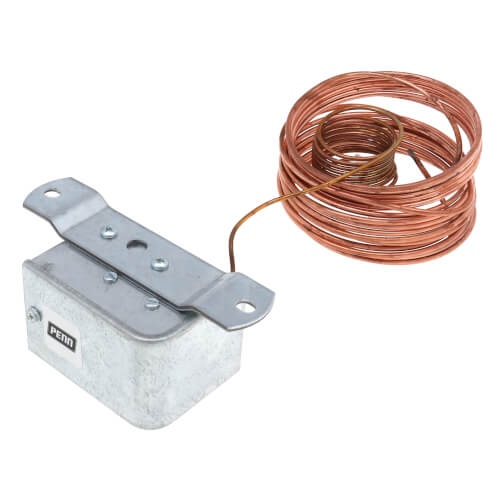

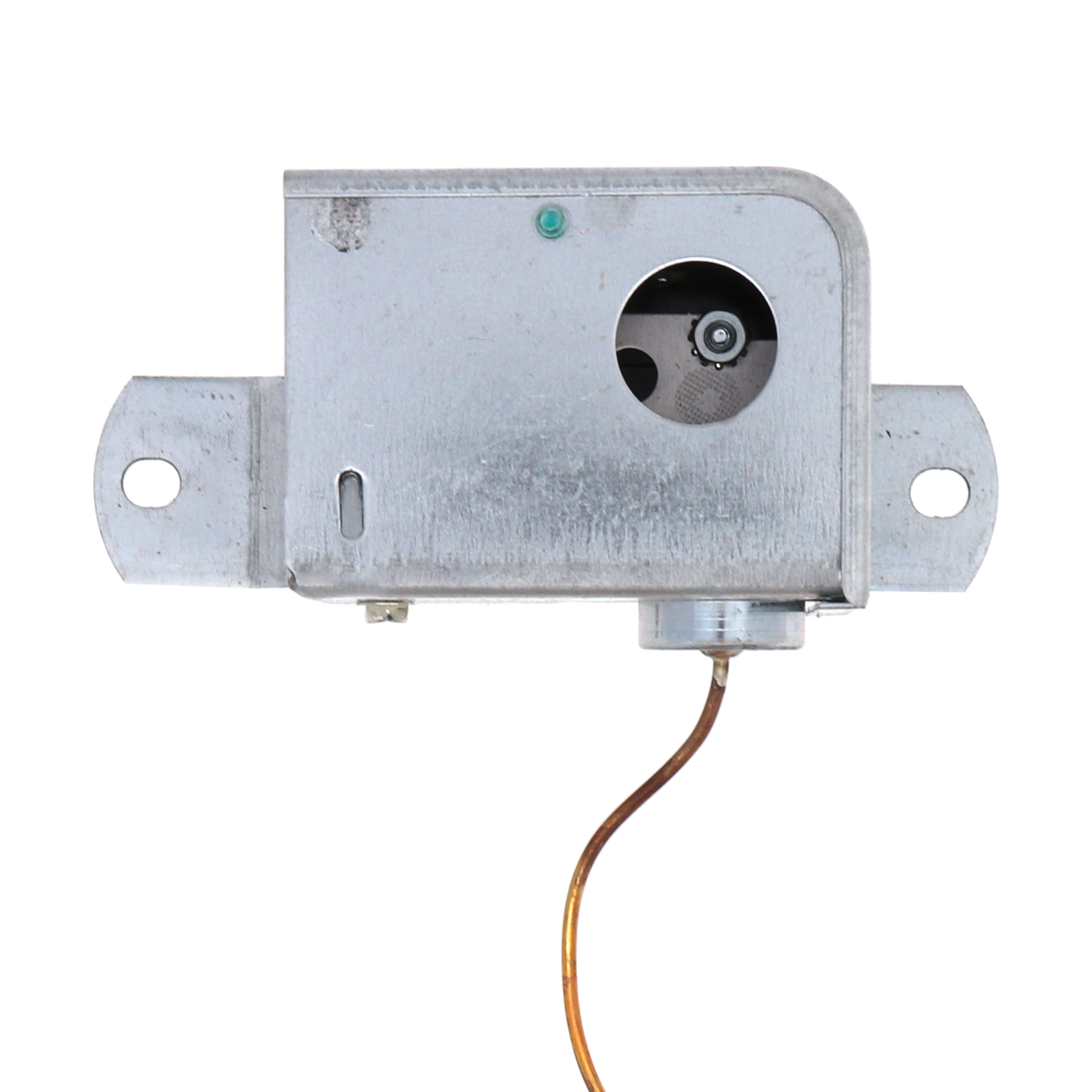

Johnson Controls A11B-1C SPST Low Limit Auto Reset Control 35/45 F 1/8 x 20'

Product Description

The Johnson Controls A11B-1C is a compact and reliable SPST low limit switch designed for industrial use. This model offers automatic reset control with a temperature range of 35 to 45 degrees Fahrenheit and a thread size of 1/8 inch by 20 feet.

• Precise temperature control
• Automatic reset functionality
• Durable construction

Product Highlights

This limit switch is perfect for monitoring and controlling various industrial processes. It features a robust design that can withstand harsh conditions, ensuring reliable performance in a wide range of applications. The compact size makes it easy to integrate into different systems, while the automatic reset function enhances convenience.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A11B-1C

Technical Specifications

• Type: Line Voltage
• Series: A11
• Dimensions: 5-3/8 inches L x 2-1/8 inches W x 3-1/8 inches H
• Sensor Type: Capillary
• Switch Type: SPST
• Differential: 1.2 degrees F
• Control Range: 35 to 45 degrees F
• Mounting Type: Flat Surface
• Switch Action: Close On Rise
• Enclosure Type: Galvanized Steel
• Voltage Rating: 24/277 VAC
• Number of Stages: 1
• Full Load Current: 16 A
• Sensing Bulb Size: 1/8 inch Dia x 48 inch L
• Number of Switches: 1
• Number of Relay Inputs: 1
• Number of Relay Outputs: 1
• Country of Origin: United States
