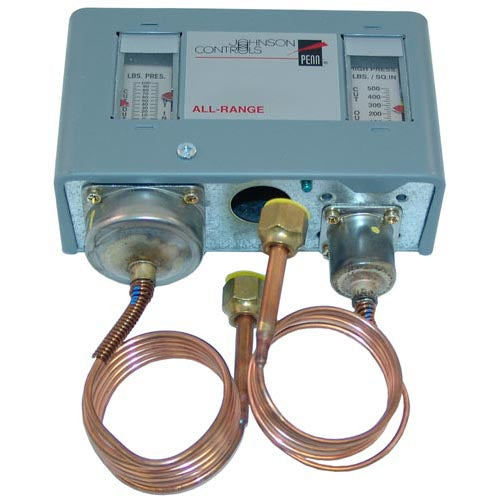

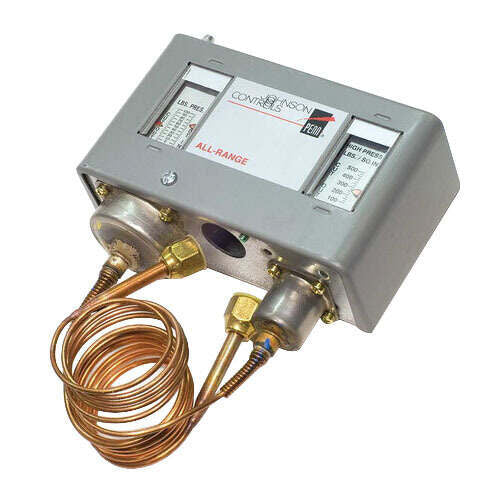

Johnson Controls P70LB-1C Pressure Control Dual Ring Refrigerant 120 Volt 100-500 Pounds per Square Inch

Product Description

The Johnson Controls P70LB-1C Dual Pressure Control is designed for commercial refrigeration and air conditioning applications. This model, featuring SPST switching, provides reliable control and precise settings for low and high-pressure ranges.

• Compatible with R-12, R-22, R-500, R-502 refrigerants
• 120/240 VAC operation, single-phase
• 1/4-inch flare nut connections, 36-inch capillary tube

Product Highlights

This dual pressure control offers accurate adjustments with its visible pressure scale. The durable all-steel case ensures long-lasting protection of internal components. The manual reset for low pressure lockout ensures operational safety.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P70LB-1C

Technical Specifications

• Pressure Range: Low 20-100 psi, High 100-500 psi
• Differential: Low 7-50 psi, High 65-95 psi
• Voltage: 120/240 VAC
• Phase: Single
• Switch Type: SPST
• Connection: 1/4-inch flare nut
• Capillary Length: 36 inches
• Material: Steel Case
• Dimensions: 6.4 inches (L) x 2.7 inches (W) x 8.2 inches (H)
• Weight: 3.3 pounds
• Certifications: UL Listed
