SPS Approved Vendor BSPCLH 1 inch Black Malleable Iron Extension Split Pipe Clamp

Product Description

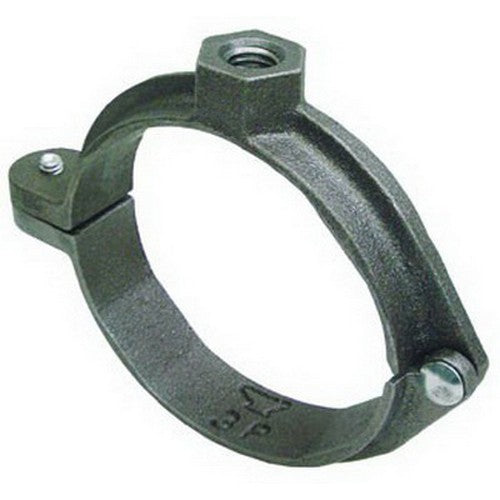

The SPS Approved Vendor BSPCLH is a 1 inch black malleable iron extension split pipe clamp designed for reliable connection in various pipe systems. This clamp is designed to accommodate both refrigeration and compressor piping that experiences vibration.

• Constructed from malleable iron for strength.
• Rated for a maximum load of 180 pounds.
• Max temperature tolerance of four hundred fifty degrees Fahrenheit.

Product Highlights

This clamp provides rapid installation with a hinged design for simple handling and strong pipe grip. It is ideal for non-insulated stationary pipe lines.

Product Information

Standard Information

• Brand: SPS Approved Vendor
• MPN: BSPCLH

Technical Specifications

• Series: 138R
• Type: E
• Nominal Size: 1 inch
• Rod Size: 3/8 inch
• Material: Malleable Iron
• Finish: Black
• Max. Load: 180 lb
• Max. Temperature: 450 Deg F
• Standards: Complies with Federal Specification A-A-1192A (Type 12) WW-H-171-E (Type 25) and MSS-SP-69 (Type 12)
