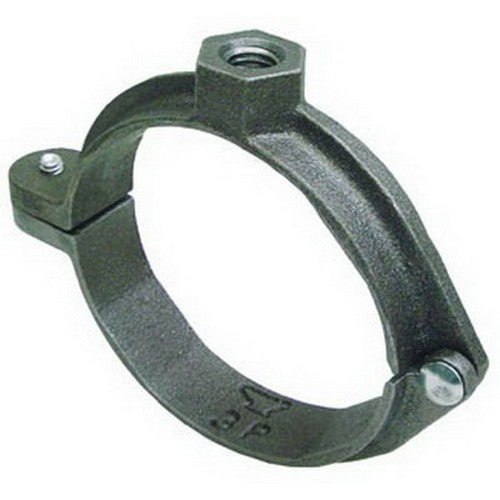

SPS Approved Vendor BSPCLF 3/4 inch Black Malleable Iron Extension Split Pipe Clamp

Product Description

The SPS Approved Vendor BSPCLF is a 3/4 inch black malleable iron extension split pipe clamp. It is designed for use in refrigeration and compressor piping systems. The clamp can accommodate a rod size of 3/8 inch and has a maximum temperature rating of four hundred fifty degrees Fahrenheit.

• Designed for refrigeration or compressor piping
• Hinged design for easy installation
• Durable malleable iron material

Product Highlights

This clamp is suitable for non-insulated stationary pipe lines and provides a firm grip to hold pipes securely.

Product Information

Standard Information

• Brand: SPS Approved Vendor
• MPN: BSPCLF

Technical Specifications

• Series: 138R
• Type: E
• Nominal Size: 3/4 inch
• Rod Size: 3/8 inch
• Material: Malleable Iron
• Finish: Black
• Max. Load: 180 lb
• Max. Temperature: 450 Deg F
• Standards: Complies with Federal Specification A-A-1192A (Type 12) WW-H-171-E (Type 25) and MSS-SP-69 (Type 12)
