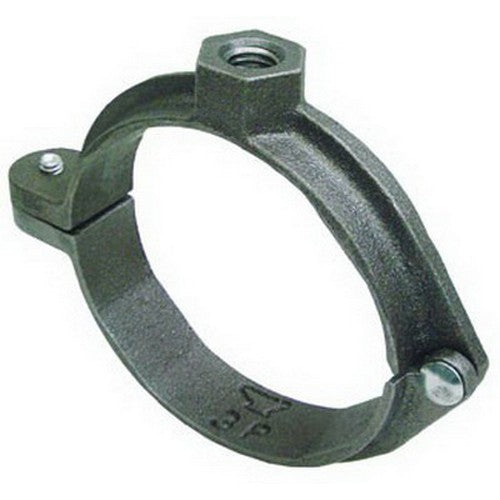

SPS Approved Vendor BSPCLD 1/2 inch Black Malleable Iron Extension Split Pipe Clamp

Product Description

The SPS Approved Vendor BSPCLD is a 1/2 inch black malleable iron extension split pipe clamp designed for robust pipe support. This clamp is suitable for refrigeration or compressor piping, ensuring stability and adaptability in various applications.

• Constructed from malleable iron for durability
• Max load capacity of 180 pounds
• Max operating temperature of 450 degrees Fahrenheit

Product Highlights

This clamp is ideal for non-insulated stationary pipelines. The hinged design allows for quick installation, while the tapered inner ring prevents moisture entrapment.

Product Information

Standard Information

• Brand: SPS Approved Vendor
• MPN: BSPCLD

Technical Specifications

• Series: 138R
• Type: E
• Nominal Size: 1/2 inch
• Rod Size: 3/8 inch
• Material: Malleable Iron
• Finish: Black
• Max Load: 180 lb
• Max Temperature: 450 Deg F
• Standards: Complies with Federal Specification A-A-1192A (Type 12), WW-H-171-E (Type 25), and MSS-SP-69 (Type 12)
