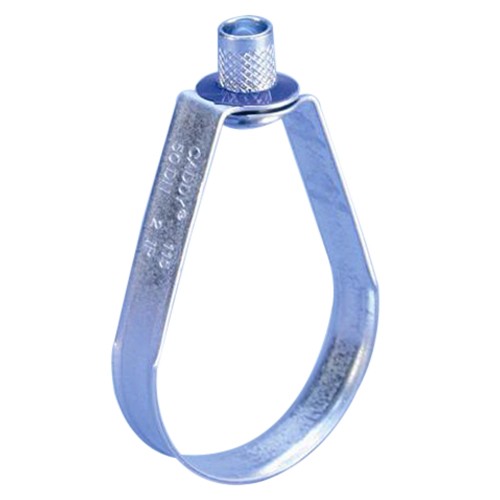

SPS Approved Vendor 1150300EG Steel Standard Duty Adjustable Swivel Loop Hanger 3 inch

Product Description

The SPS Approved Vendor 1150300EG is a steel standard duty adjustable swivel loop hanger designed for support in electrical installations. This product is lightweight and offers reliable performance for suspending stationary non-insulated pipelines. It features a nominal size of three inches and is constructed of pre-galvanized steel for lasting durability.

• Adjustable for vertical alignment
• Supports up to 525 pounds
• Compliant with cULus and FM standards

Product Highlights

This hanger is ideal for various applications including fire sprinkler systems. It is designed to maintain stability and ease of installation with a knurled insert nut.

Product Information

Standard Information

• Brand: SPS Approved Vendor
• Part Number: 1150300EG

Technical Specifications

• Type: Standard Duty, Adjustable
• Nominal Size: 3 inch
• Rod Size: 3/8 inch
• Material: Steel
• Finish: Pre-Galvanized
• Length: 6-9/16 inch
• Adjustment: Vertical
• Maximum Load: 525 lb
• Center of Pipe to Top of Hanger: 3-1/2 inch
• Standards: cULus Listed, FM Approved
